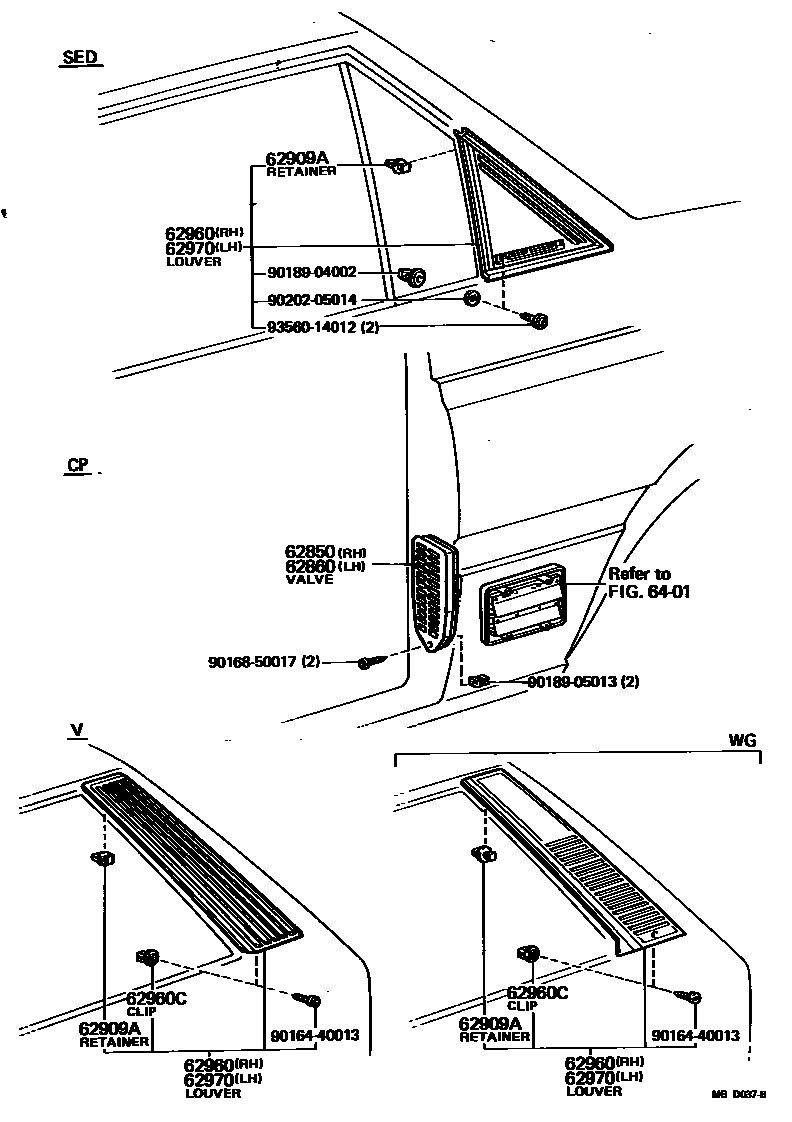

ROOF SIDE VENTILATOR

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-14050iAA6#,RA63,SA60,TA61,63..CP198109-198507

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62850-14050iAA6#,RA63,SA60,TA61,63..CP198109-198507

62909ARETAINER SUB-ASSY, QUARTER VENTILATION LOUVER

main62955-91C01×4iAA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG198109-198804

62960LOUVER ASSY, ROOF SIDE VENT, RH

main62905-14050iAA6#,CA60,SA60,TA63..SED198305-198712

main62905-19255iAA60,RA63,SA60,TA61,63..SED198109-198201

main62905-19256iAA60,CA60,RA63,SA60,TA61,63..SED198201-198305

main62905-19275iCA67,KA67,TA67198109-198804

main62905-19285iSA60..WG198202-198804

62960CCLIP, ROOF SIDE VENT LOUVER

main62908-91C01×2iCA67,KA67,SA60,TA67..V,WG198109-198804

62970LOUVER ASSY, ROOF SIDE VENT, LH

main62906-14050iAA6#,CA60,SA60,TA63..SED198305-198712

main62906-19235iAA60,RA63,SA60,TA61,63..SED198109-198201

main62906-19236iAA60,CA60,RA63,SA60,TA61,63..SED198201-198305

main62906-19255iCA67,KA67,TA67198109-198804

main62906-19265iSA60..WG198203-198804

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

9016440013

main90164-40013

9016850017

main90168-50017

9018904002

main90189-04002

9018905013

main90189-05013

9020205014

main90202-05014

9356014012

main93560-14012

13 parts on this diagram · 1 diagram in section
