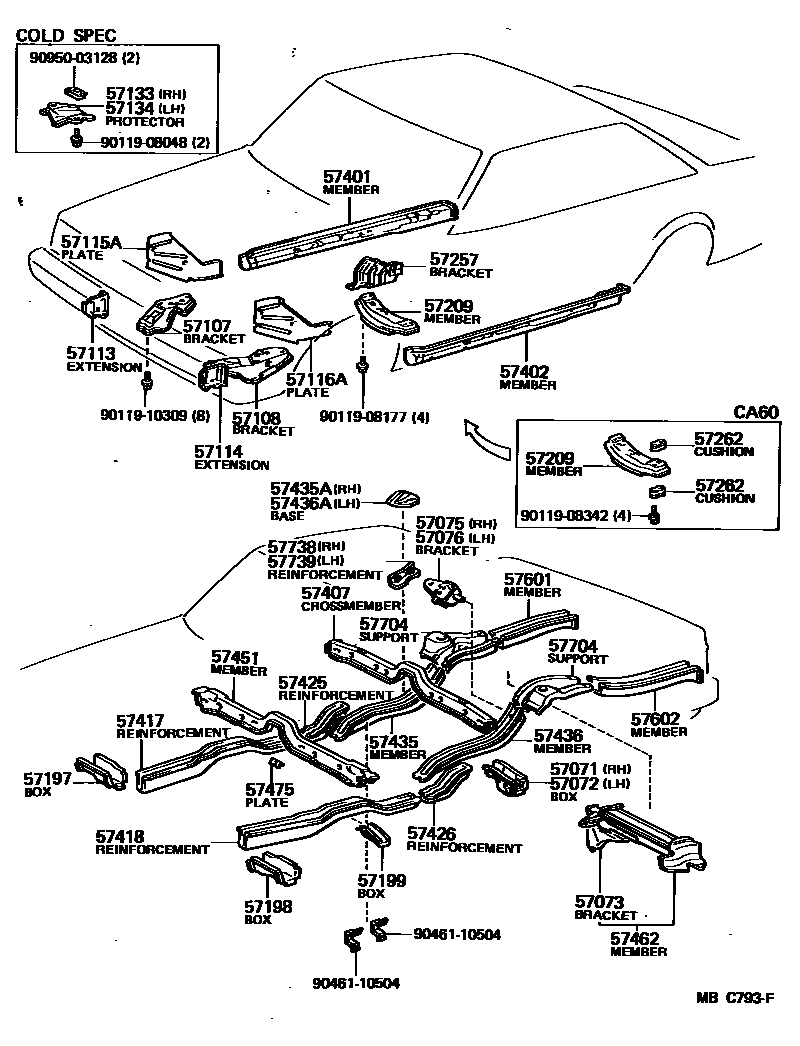

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-14020iAA60,CA60,SA60198109-198804

main57071-14030iAA63,RA63,TA61,63198109-198507

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-14020iAA60,CA60,SA60198109-198804

main57072-14030iAA63,RA63,TA61,63198109-198507

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-14040iAA60,CA60,SA60198109-198804

57075BRACKET SUB-ASSY, UPPER CONTROL LINK, RH

main57075-14030iAA60,CA60,SA60198109-198804

57076BRACKET SUB-ASSY, UPPER CONTROL LINK, LH

main57076-14030iAA60,CA60,SA60198109-198804

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-14080iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-14080iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-14070iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-14090iAA6#,CA60,RA63,SA60,TA61,63198109-198804

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-14090iAA60198109-198804

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-14030iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

COLD SPEC

57134PROTECTOR, STRUT BAR BRACKET, LH

main57134-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

COLD SPEC

57197BOX, TORQUE, FRONT RH

main57197-14010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57198BOX, TORQUE, FRONT LH

main57198-14010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57199BOX, TORQUE, FRONT, NO.2

main58173-14010×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14170iTA6#..MTM198109-198507

main57209-14180iAA60,KA67,SA60..MTM198109-198804

main57209-14190iTA63,67..ATM..(DLX,SE,SG,ST)198109-198507

main57209-14200iAA60,KA67..3FC198109-198804

main57209-14210iSA60..4FC198109-198804

main57209-14220iCA6#..5F198202-198508

main57209-14230iCA60..4FC198202-198405

main57209-14270iTA63..4FC..GTT198210-198507

main57209-14280iAA60..4FC198305-198507

main57209-14290iAA63198305-198507

main57209-20150iCA67198508-198804

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-14050iTA63..5F..GTT198210-198507

RH

main57257-24010iTA63..4FC..GTT198210-198507

RH

main57258-24010iAA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

LH

57262CUSHION, ENGINE REAR SUPPORT MEMBER

main57264-14020×2iCA6#198202-198804

UPR

main57265-14020×2iCA6#198202-198804

LWR

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14180iAA60,CA6#,KA67,SA60,TA67198109-198505

main57401-14190iAA63,RA63,TA61,63198109-198505

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14180iAA60,CA6#,KA67,SA60,TA67198109-198505

main57402-14190iAA63,RA63,TA61,63198109-198505

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-14010iAA6#,CA60,RA63,SA60,TA61,63198109-198804

main57407-91C01iCA67,KA67,TA67198109-198804

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-24010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-24010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-14020iCA67,KA67,TA67198109-198804

main57425-24010iAA6#,CA60,RA63,SA60,TA61,63198109-198804

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-14020iCA67,KA67,TA67198109-198804

main57426-24010iAA6#,CA60,RA63,SA60,TA61,63198109-198804

57435MEMBER, CENTER FLOOR SIDE, RH

main57435-14010iSA60198109-198804

main57435-24010iAA63,RA63,TA61,63198109-198507

main57441-14010iAA60,CA60198109-198804

57435ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-14010iAA60,CA60,SA60198109-198804

57436MEMBER, CENTER FLOOR SIDE, LH

main57436-14010iSA60198109-198804

main57436-14020iAA63,RA63,TA61,63198109-198507

main57441-14010iAA60,CA60198109-198804

57436ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-14010iAA60,CA60,SA60198109-198804

57451MEMBER, FRONT FLOOR CROSS

main57451-24010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57405-14080iAA60,CA60,SA60198109-198804

main57405-14100iAA63,RA63,TA61,63198109-198507

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-24010×4iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14100iAA60,CA60,SA60..CP,SED198109-198712

main57601-14110iAA63,RA63,TA61,63198109-198507

main57601-14120iAA60,SA60..SED198603-198804

main57601-91790iCA67,KA67,TA67198109-198804

main57601-91C02iSA60..WG198202-198804

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14090iAA60,CA60,SA60..CP,SED198109-198603

main57602-14100iAA63,RA63,TA61,63198109-198507

main57602-14110iAA60,SA60..SED198603-198712

main57602-91790iCA67,KA67,TA67198109-198804

main57602-91C02iSA60..WG198202-198804

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57701-14010iAA60,CA60,SA60198109-198804

RH

main57704-14010iAA60,CA60,SA60198109-198804

LH

main57723-14030iAA63,RA63,TA61,63198109-198507

RH

main57724-14020iAA63,RA63,TA61,63198109-198507

LH

57738REINFORCEMENT, REAR STABILIZER BRACKET, RH

main57738-14020iSA60198109-198804

57739REINFORCEMENT, REAR STABILIZER BRACKET, LH

main57739-14010iSA60198109-198804

9011908048

main90119-08048

9011908177

main90119-08177

9011908342

main90119-08342

9011910309

main90119-10309

9046110504

main90461-10504

9095003128

main90950-03128

44 parts on this diagram · 3 diagrams in section
