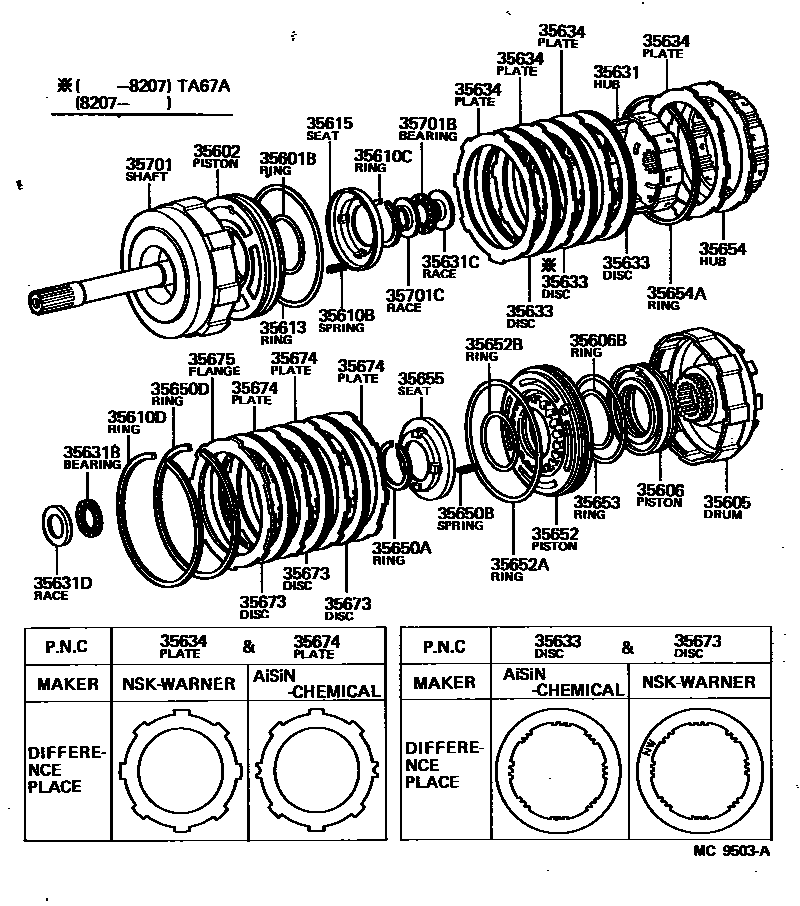

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1 0002 1 0003 1

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-57188iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-12031iAA60,CA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198207-198804

main35602-12040iAA60..3FC198109-198207

main35602-30041iTA63..4FC..GTT198210-198305

main35602-30042iTA63..4FC198305-198507

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-22011iSA60,TA63..4FC..(SE,SG,ST)198109-198804

main35605-30021iTA63..4FC..GTT198210-198507

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-22010iAA60,CA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

main35606-30021iTA63..4FC..GTT198210-198507

35606BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)

main90501-10671×18iAA60,CA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

main90501-11007×18iTA63..4FC..GTT198210-198307

main90501-11023×18iTA63..4FC198307-198507

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90521-99139iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main90301-99016iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35615SEAT, CLUTCH PISTON RETURN SPRING

main35615-30020iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-22010iAA60,CA60,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198307

main35631-30030iTA63..4FC..GTT198210-198307

main35631-30040iAA60,CA60,KA67,SA60..ATM198307-198508

main35631-30050iTA63..4FC198307-198507

35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)

main90374-28014iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

main35789-22050iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)

main35789-22020iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35677-22020×4iAA60,CA60,SA60,TA63,67..ATM198109-198307

NSK-WARNER

main35677-22030×3iAA60,TA67..3FC198109-198307

AISIN CHEMICAL

main35677-22050×3iAA60,KA67..3FC198307-198506

main35677-30030×4iAA60,CA60,SA60,TA63..4FC198307-198506

35634PLATE, FRONT CLUTCH

main35634-22040×4iAA60,CA60,SA60,TA63,67..ATM198109-198307

main35634-22060×4iAA60,KA67..3FC198508-198804

main35634-22070×4iAA60,KA67,TA67..3FC198109-198508

main35634-30070iTA63..4FC198305-198507

35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90520-39261iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)

main90501-10671×18iAA60,CA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

main90501-11007×18iTA63..4FC..GTT198210-198307

main90501-11023×18iTA63..4FC198307-198507

35650DRING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH)

main90521-99139iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35652PISTON, REAR CLUTCH, NO.2

main35602-12030iAA60,CA60,TA67..ATM198109-198305

main35602-12031iAA60,KA67..3FC198305-198804

main35602-30041iCA60..4FC198305-198405

main35607-12010iAA60..4FC198305-198712

main35607-20021iSA60,TA63..4FC..(SE,SG,ST)198109-198804

35652ARING (FOR REAR CLUTCH OUTER)

main90301-99016iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35652BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35653RING, REAR CLUTCH OIL SEAL, OUTER

main90301-84184iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35654HUB, REAR CLUTCH

main35654-22010iAA60,CA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

main35654-30010iTA63..4FC..GTT198210-198507

35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)

main90521-99146iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35655SEAT, REAR CLUTCH PISTON RETURN SPRING

main35615-30020iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35673DISC, REAR CLUTCH

main35677-22020×3iAA60,CA60,SA60,TA63,67..ATM198109-198307

NSK-WARNER

main35677-22030×2iAA60,TA67..3FC198109-198307

AISIN CHEMICAL

main35677-22050×3iAA60,KA67..3FC198307-198506

main35677-30030×3iAA60,CA60,SA60,TA63..4FC198307-198506

35674PLATE, REAR CLUTCH

main35634-22040×3iAA60,CA60,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198307

NSK-WARNER,T=1.8

main35634-22070×3iAA60,KA67,TA67..ATM198109-198508

AISIN CHEMICAL

main35634-30070×3iSA60,TA63..4FC198109-198508

T=2.0

35675FLANGE, REAR CLUTCH

main35675-22010iAA60,SA60..4FC198307-198804

main35675-30020iAA60,SA60,TA63..4FC..(SE,SG,ST)198109-198804

main35675-30030iAA60,SA60,TA63..4FC198109-198804

35701SHAFT SUB-ASSY, INPUT

main35701-12011iAA60,KA67..3FC198109-198804

main35701-22011iTA67..3FC198109-198308

main35701-22021iCA60,SA60,TA63..4FC198109-198209

main35701-22022iAA60,CA60,SA60,TA63..4FC..(SE,SG,ST)198209-198804

main35701-30042iTA63..4FC..GTT198210-198507

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23012iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

32 parts on this diagram · 3 diagrams in section
