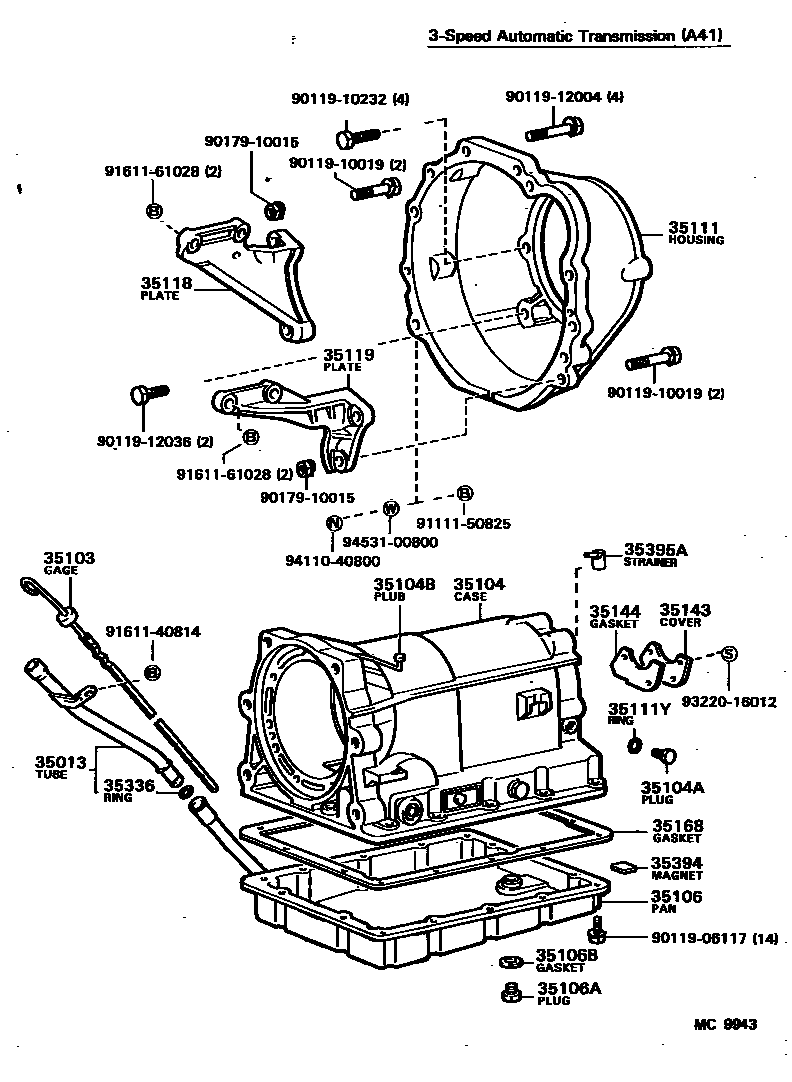

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12090iAA60..3FC198109-198712

main35013-12110iKA67..3FC198308-198804

main35013-12120iAA60..4FC198305-198712

main35013-14100iSA60..4FC198109-198804

main35013-14110iTA63..4FC198407-198507

main35013-20110iTA63..4FC198109-198407

main35013-20120iCA60..4FC198202-198405

main35013-28010iTA67..3FC198109-198308

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12040iAA60..4FC198305-198308

main35103-12041iAA60..4FC198308-198712

main35103-14022iTA67..3FC198109-198308

main35103-14050iTA63..4FC..(SE,ST)198109-198305

main35103-14070iTA63..4FC..GTT198210-198308

main35103-14071iTA63..4FC198308-198507

main35103-20071iAA60..3FC198109-198308

main35103-20072iAA60,KA67..3FC198308-198804

main35103-20080iSA60..4FC198109-198308

main35103-20081iSA60..4FC198308-198804

main35103-30100iCA60..4FC198202-198308

main35103-30101iCA60..4FC198308-198405

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-12030iAA60..4FC198305-198410

main35104-12031iAA60..4FC198410-198712

main35104-22025iAA60,KA67,TA67..3FC198109-198410

main35104-22026iAA60,KA67..3FC198410-198804

main35104-26011iTA63..4FC..GTT198210-198408

main35104-26020iTA63..4FC198408-198410

main35104-26021iTA63..4FC198410-198507

main35104-30082iSA60,TA63..4FC..(SE,SG,ST)198109-198410

main35104-30083iSA60..4FC198410-198804

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-12020iAA60..4FC198305-198712

main35106-14020iAA60..3FC198109-198712

main35106-22020iKA67,TA67..3FC198109-198804

main35106-22031iTA63..4FC..(SE,ST)198109-198305

main35106-30030iSA60..4FC198109-198804

main35106-30050iCA60..4FC198202-198405

main35106-30060iTA63..4FC..GTT198210-198507

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iAA60,CA60,SA60,TA63,67..ATM198109-198307

main90341-10006iAA60,CA60,KA67,SA60,TA6#..ATM198307-198804

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12030iAA60..3FC198109-198712

main35111-12080iKA67..3FC198308-198804

main35111-12100iAA60..4FC198305-198712

main35111-14050iTA67..3FC198109-198308

main35111-14060iTA63..4FC..(SE,ST)198109-198305

main35111-14080iTA63..4FC..GTT198210-198507

main35111-14090iSA60..4FC198109-198804

main35111-20090iCA60..4FC198202-198405

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35118PLATE, STIFENER, RH (ATM)

main33118-12070iAA60..ATM198109-198712

main33118-12080iKA67..3FC198308-198804

main33118-14010iTA63,67..ATM198109-198507

main33118-14030iCA60,SA60..4FC198109-198410

main33118-14031iSA60..4FC198410-198508

main33118-14032iSA60..4FC198508-198607

main33118-14033iSA60..4FC198607-198804

35119PLATE, STIFENER, LH (ATM)

main33119-12050iKA67..3FC198308-198804

main33119-12060iAA60..3FC198109-198304

main33119-12100iAA60..ATM198304-198712

main33119-14040iTA63,67..ATM198109-198507

main33119-14050iCA60,SA60..4FC198109-198804

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35395ASTRAINER, GOVERNOR OIL

main35395-40010iAA60,CA60,KA67,SA60,TA63..ATM198305-198804

9011906117

main90119-06117

9011910019

main90119-10019

9011910232

main90119-10232

9011912004

main90119-12004

9011912036

main90119-12036

9017910015

main90179-10015

9111150825

main91111-50825

9161140814

main91611-40814

9161161028

main91611-61028

9322016012

main93220-16012

9411040800

main94110-40800

9453100800

main94531-00800

30 parts on this diagram · 8 diagrams in section
