82111WIRE, ENGINE ROOM MAIN

main82111-17190i198912-199112

main82111-17191i199112-199311

main82111-17192i199311-199405

main82111-17193i199405-199606

main82111-17194i199606-199712

main82111-17195i199712

main82111-17200i198912-199112

main82111-17201i199112-199311

main82111-17202i199311-199405

main82111-17203i199405-199606

main82111-17204i199606-199712

main82111-17205i199712

main82111-17210i198912-199112

main82111-17211i199112-199311

main82111-17212i199311-199405

main82111-17213i199405-199606

main82111-17214i199606-199712

main82111-17215i199712

main82111-17650i199112-199311

main82111-17651i199311-199405

main82111-17652i199405-199606

main82111-17653i199606-199712

82171WIRE, ROOF, NO.1

main82171-17030i198912-199112

main82171-17031i199112

main82171-17040i198912-199112

main82171-17041i199112

82173WIRE, ROOF, NO.3

main82173-17010i199112-199311

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271114320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14320

8271114350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14350

827112B340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B340

8271130370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30370

8271517060BRACKET,WIRING HARNESS CLAMP

main82715-17060

8537332010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-32010

9011906390

main90119-06390

9011908358

main90119-08358

9017606023

main90176-06023

9017906158

main90179-06158

9165140612

main91651-40612

91666F0618

main91666-F0618

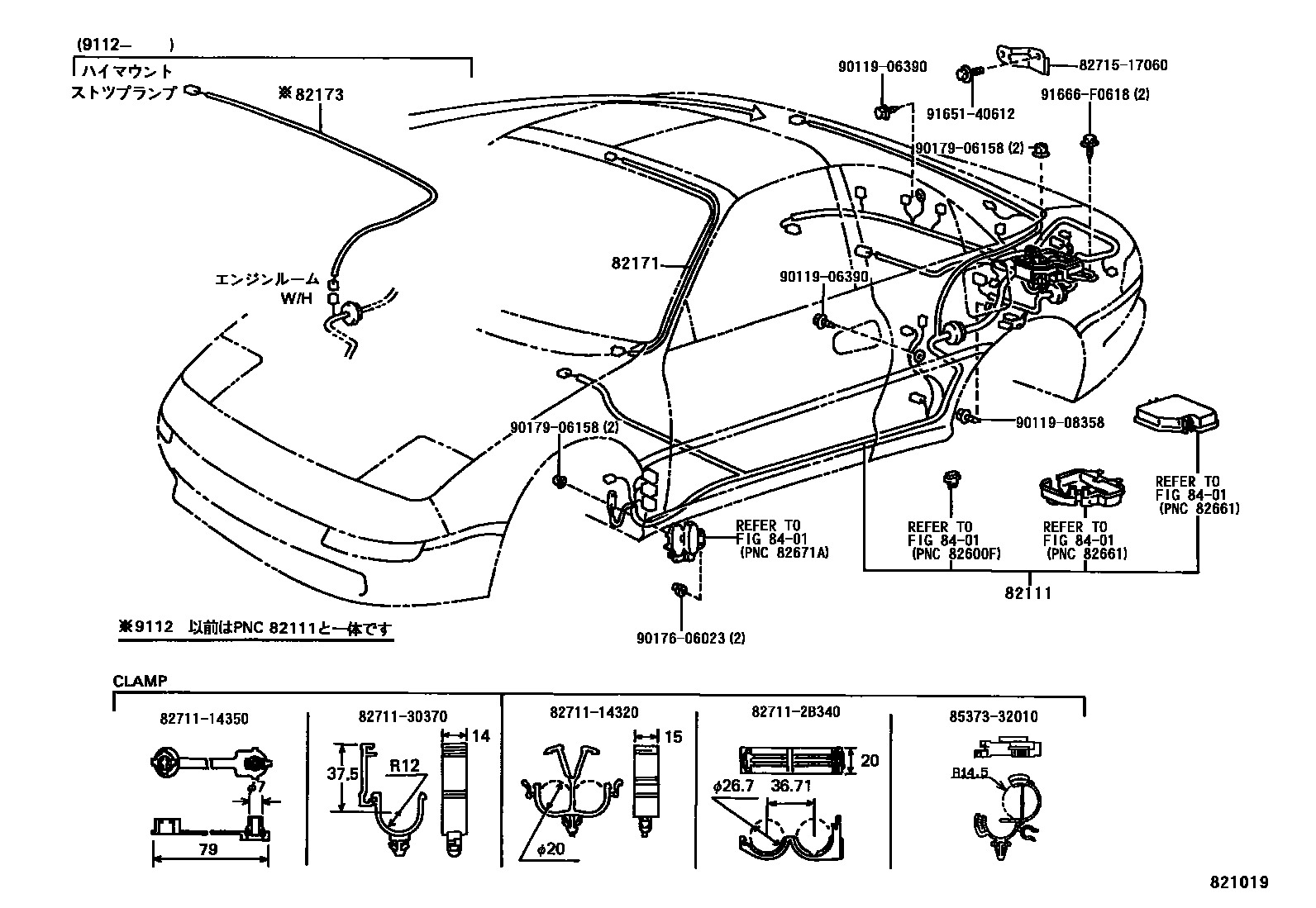

WIRING & CLAMP
