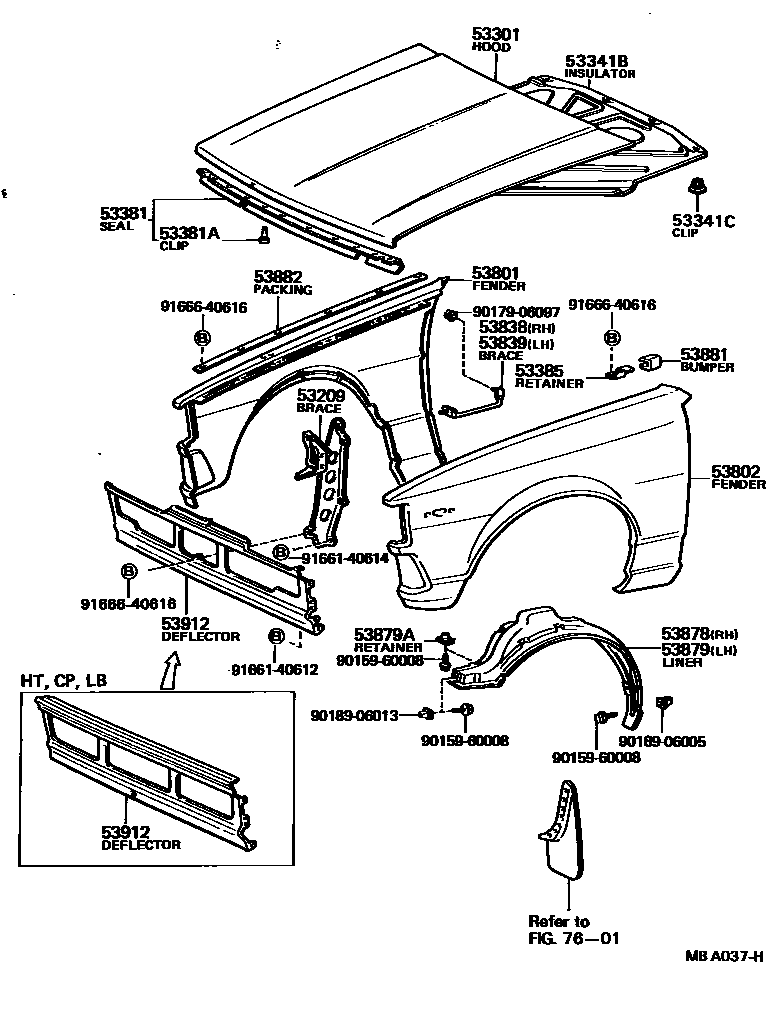

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53209BRACE SUB-ASSY, HOOD LOCK

main53208-12040iAE70,KE71,TE7#..SED,V197903-197911

main53208-12050iKE70..SED197903-198108

main53208-12060iAE70,TE70,71..2D197903-197911

main53208-12070iKE70..CP,HT,LB197903-198108

main53208-12120iAE70,KE71,TE7#..SED,V197911-198108

main53208-12130iAE70,TE70,71..2D197911-198108

main53208-12150iKE70,73..(SED,WG)..MTM198108-198308

main53208-12160iAE70,CE7#,KE72,TE7#..SED,V198108-198308

main53208-12180iKE70..(CP,HT,LB)..MTM198108-198304

main53208-12190iAE70,TE71..2D; KE70..3FC..2D198108-198304

main53208-13010iCE7#,KE72,74198308-198508

main53208-13011iCE7#,KE72,74198508-198707

main53208-13020iKE73198308-198508

main53208-13021iKE73198508-198707

53301HOOD SUB-ASSY

main53301-12200iAE70,KE7#,TE7#..SED,V197903-198108

main53301-12210iAE70,KE70,TE70,71..CP,HT,LB197903-198108

main53301-12290iAE70,CE7#,KE7#,TE7#..SED,V,WG198108-198308

main53301-12310iAE70,KE70,TE71..CP,HT,LB198108-198304

main53301-13020iCE7#,KE7#198308-198707

53341BINSULATOR, HOOD

main53341-12010iTE70197908-198108

main53341-12020iCE7#198202-198707

53341CCLIP(FOR HOOD INSULATOR)

main90467-12018×11iCE7#198202-198707

main90467-22002×13iTE70197908-198108

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12100iAE70,KE70,TE71..CP,LB197903-197904

main53381-12110iAE70,KE70,TE71..HT,SED197903-197904

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08008×11iAE70,KE7#,TE7#197903-197912

main90467-08011×9iAE70,CE7#,KE7#,TE7#197912-198707

53385RETAINER, HOOD, BUMPER

main53385-14010×2iAE70,CE7#,KE7#,TE7#197903-198707

LH

main53386-14010×2iAE70,CE7#,KE7#,TE7#197903-198707

RH

53801FENDER SUB-ASSY, FRONT RH

main53801-12830iAE70,KE7#,TE7#..SED,V197903-198108

W/ANTENNA HOLE

main53801-12850iKE7#..STD197903-198108

W/O ANTENNA HOLE

main53801-12860iAE70,KE70,TE70,71..CP,HT,LB197903-198108

main53801-12861iAE70,KE70,TE71..CP,HT,LB198108-198304

main53801-13050iKE72..STD198308-198508

W/O ANTENNA HOLE

main53801-13051iKE72..STD198508-198707

W/O ANTENNA HOLE

main53801-13060iCE71,KE72,74;CE72,KE73..DX; CE72,KE73..GL198401-198508

W/ANTENNA HOLE; W/FENDER MIRROR

main53801-13061iCE71,KE72,74;CE72,KE73..DX; CE72,KE73..GL198508-198707

W/ANTENNA HOLE; W/FENDER MIRROR

main53801-13070iCE72,KE73..GL198401-198508

W/O FENDER MIRROR

main53801-13071iCE72,KE73..GL198508-198707

W/O FENDER MIRROR

main53801-1A310iKE70,72..STD198108-198308

W/O ANTENNA HOLE

main53801-1A330iAE70,CE7#,KE7#,TE7#..SED,V,WG198108-198308

W/ANTENNA HOLE

53802FENDER SUB-ASSY, FRONT LH

main53802-12850iAE70,KE7#,TE7#..SED,V197903-198108

main53802-12870iAE70,KE70,TE70,71..CP,HT,LB197903-198108

main53802-12871iAE70,KE70,TE71..CP,HT,LB198108-198304

main53802-13050iCE71,KE72,74;CE72,KE73..DX; CE72,KE73..GL198401-198508

W/FENDER MIRROR

main53802-13051iCE71,KE72,74;CE72,KE73..DX; CE72,KE73..GL198508-198707

W/FENDER MIRROR

main53802-13060iCE72,KE73..GL198401-198508

W/O FENDER MIRROR

main53802-13061iCE72,KE73..GL198508-198707

W/O FENDER MIRROR

main53802-1A350iAE70,CE7#,KE7#,TE7#..SED,V,WG198108-198308

53838BRACE, FRONT FENDER, RH

main53851-12010iAE70,KE7#,TE7#..SED,V197903-198108

main53851-12020iAE70,KE70,TE70,71..CP,HT,LB197903-198108

main53851-12040iAE70,CE7#,KE7#,TE7#198108-198707

53839BRACE, FRONT FENDER, LH

main53852-12010iAE70,KE7#,TE7#..SED,V197903-198108

main53852-12020iAE70,KE70,TE70,71..CP,HT,LB197903-198108

main53852-12040iAE70,CE7#,KE7#,TE7#198108-198707

53878LINER, FRONT FENDER, RH

main53875-12040iAE70,CE7#,KE7#,TE7#..SED,V,WG197903-198707

main53875-12050iAE70,KE70,TE70,71..CP,HT,LB197903-198304

53879LINER, FRONT FENDER, LH

main53876-12040iAE70,CE7#,KE7#,TE7#..SED,V,WG197903-198707

main53876-12050iAE70,KE70,TE70,71..CP,HT,LB197903-198304

53879ARETAINER, FRONT FENDER LINER

main53879-22010×8iAE70,CE7#,KE7#,TE7#197903-198707

53881BUMPER, FENDER TO HOOD

main53384-14010×4iAE70,KE7#,TE7#197903-198104

main53384-16010×4iAE70,CE7#,KE7#,TE7#198104-198707

53882PACKING, FRONT FENDER MAIN

main53882-12040×2iAE70,CE7#,KE7#,TE7#197903-198707

53912DEFLECTOR, FRONT BUMPER STONE

main53901-12060iCE71,KE72,73,TE74198108-198308

main53901-12090iAE70,CE70,KE70,TE71..SED198108-198304

main53901-13010iCE7#,KE7#198308-198707

main53911-12100iAE70,KE7#,TE73..SED,V197903-198108

main53911-12110iAE70,KE70,TE70,71..SED..(DX,GL,GT,SE)197903-198108

W/URETHANE BUMPER

main53911-12120iAE70,KE70..CP,HT,LB197903-198108

main53911-12130iAE70,KE70,TE70,71..CP,HT,LB197903-198108

W/URETHANE BUMPER

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015960008

main90159-60008

9017906097

main90179-06097

9018906005

main90189-06005

9018906013

main90189-06013

9166140612

main91661-40612

9166140614

main91661-40614

9166640616

main91666-40616

25 parts on this diagram · 3 diagrams in section
