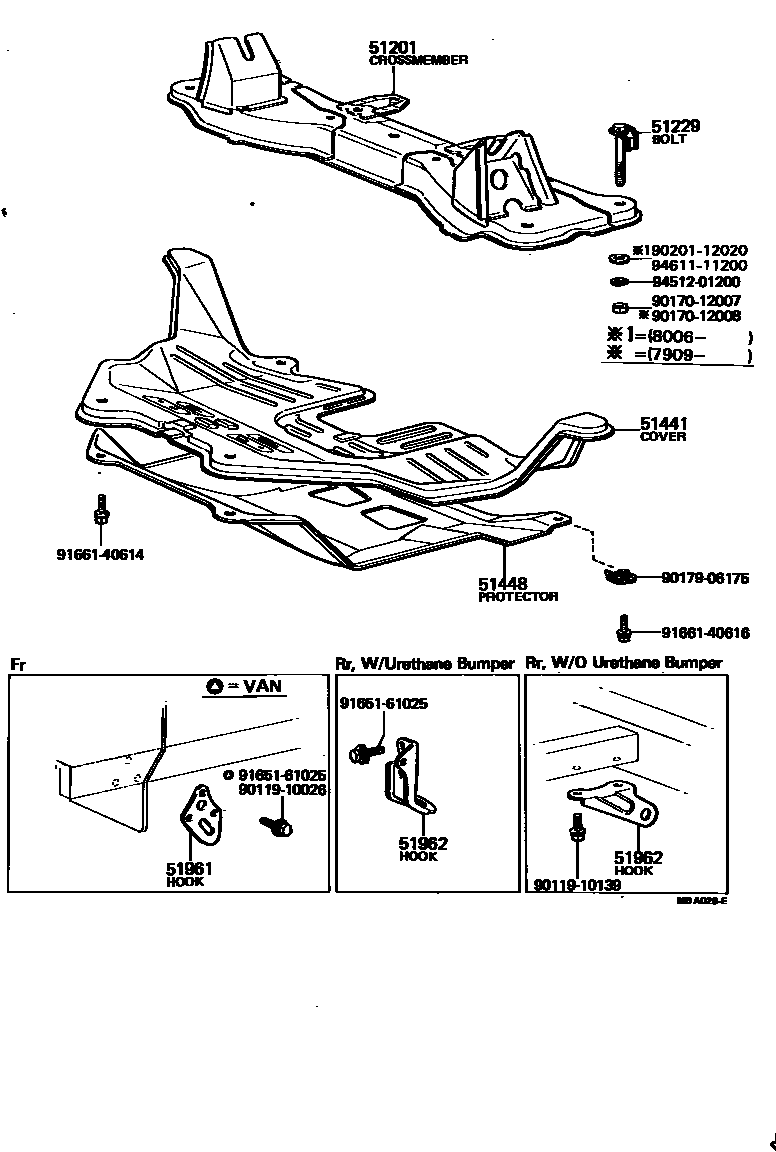

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12070iTE7#197903-198008

main51201-12080iKE70197903-198108

main51201-12081iKE70,73198108-198707

main51201-12090iAE70197903-198108

main51201-12110iKE71,72,74197908-198508

main51201-12130iTE7#198008-198308

main51201-12160iAE70198108-198304

main51201-12170iAE70198108-198304

W/POWER STEERING

main51201-12180iCE7#198202-198707

main51201-13010iKE72,74198508-198707

51229BOLT, SUSPENSION MEMBER SET

main51296-12010×4iAE70,KE70,TE71197903-197908

main51296-12011×4iAE70,CE7#,KE7#,TE7#197908-198707

51441COVER, ENGINE UNDER, NO.1

main51405-12010iKE7#197903-198008

main51405-12020iTE7#197903-198008

main51405-12030iAE70197903-198304

main51405-12040iKE73,74..3FC,5F198508-198707

main51405-12050iTE7#198008-198308

main51405-13010iKE72,74..4F198508-198707

main51441-12100iCE7#198202-198508

main51441-13010iCE7#198508-198707

51448PROTECTOR, OIL PAN

main51447-12040iAE70,KE7#,TE7#197903-198308

main51447-12050iCE7#198202-198304

main51447-12080iCE7#198304-198707

51961HOOK, NO.1

main51963-12050×2iAE70,CE7#,KE7#,TE7#197903-198707

51962HOOK, NO.2

main51967-12010×2iAE70,KE70197903-198108

W/O URETHANE BUMPER

main51967-12020iAE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX197903-198304

RH,W/URETHANE BUMPER

main51968-12010iAE70,CE70,KE70,TE70,71..DX,GL,GT,LVN,LVS,SE,SL,SR,SX197903-198304

LH,W/URETHANE BUMPER

9011910026

main90119-10026

9011910139

main90119-10139

9017012007

main90170-12007

9017012008

main90170-12008

9017906175

main90179-06175

9020112020

main90201-12020

9165161025

main91651-61025

9166140614

main91661-40614

9166140616

main91661-40616

9451201200

main94512-01200

9461111200

main94611-11200

17 parts on this diagram · 2 diagrams in section
