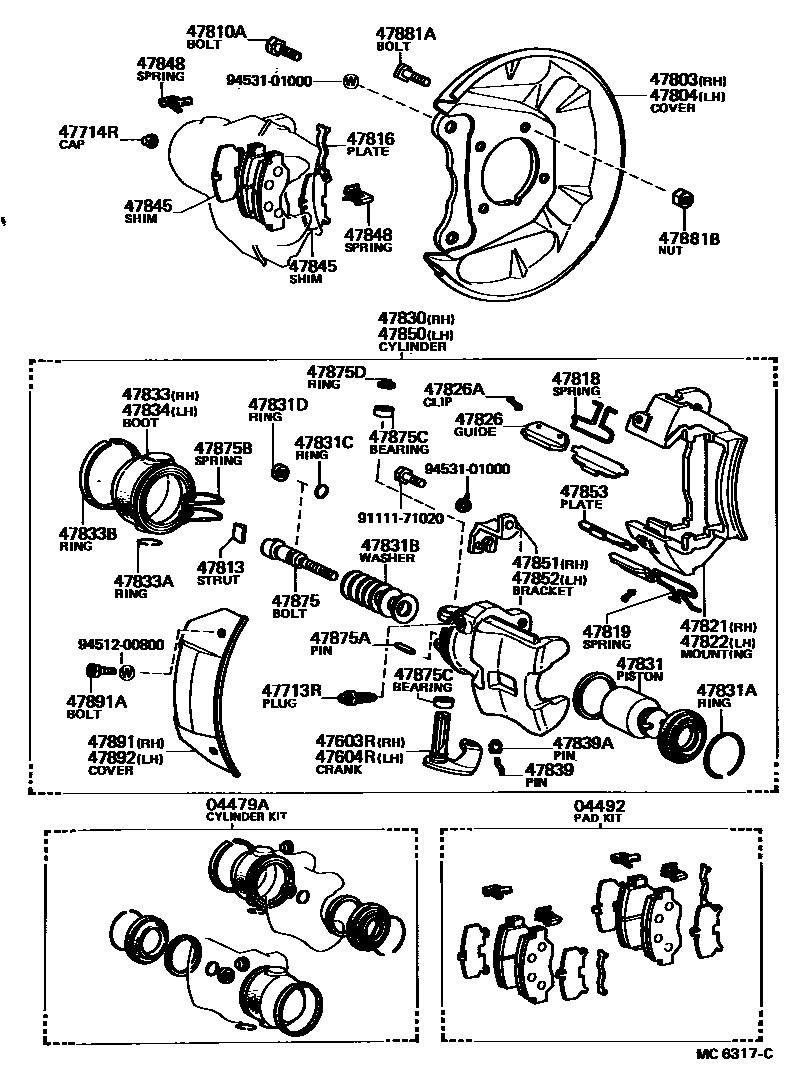

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-14030iTE70,71..GT,LVN,LVS,SR197903-198304

04492PAD KIT, DISC BRAKE, REAR

main04492-12020iTE70,71..GT,LVN,SR197903-198005

main04492-12021iTE70,71..GT,LVN,SR198005-198006

main04492-14030iTE70,71..GT,LVN,LVS,SR198006-198304

47603RCRANK SUB-ASSY, PARKING BRAKE, RH(FOR DISC BRAKE, REAR)

main47603-14010iTE70,71..GT,LVN,LVS,SR197903-198304

47604RCRANK SUB-ASSY, PARKING BRAKE, LH(FOR DISC BRAKE, REAR)

main47604-14010iTE70,71..GT,LVN,LVS,SR197903-198304

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iTE70,71..GT,LVN,LVS,SR197903-198304

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iTE70,71..GT,LVN,LVS,SR197903-198304

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-14010iTE70,71..GT,LVN,LVS,SR197903-198304

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-14010iTE70,71..GT,LVN,LVS,SR197903-198304

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-10059×4iTE70,71..GT,LVN,LVS,SR197903-198304

47813STRUT, PARKING BRAKE(FOR REAR DISC BRAKE)

main47613-14020×2iTE70,71..GT,LVN,LVS,SR197903-198304

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-14040×2iTE70,71..GT,LVN,LVS,SR197903-198304

47818SPRING, CYLINDER SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47718-14060×2iTE70,71..GT,LVN,LVS,SR197903-198304

47819SPRING, CYLINDER SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47719-14030×2iTE70,71..GT,LVN,LVS,SR197903-198304

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-12040iTE70,71..GT,LVN,LVS,SR197903-198304

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-12040iTE70,71..GT,LVN,LVS,SR197903-198304

47826GUIDE, DISC BRAKE CYLINDER(FOR REAR DISC BRAKE)

main47726-14050×4iTE70,71..GT,LVN,LVS,SR197903-198304

47826ACLIP(FOR REAR DISC BRAKE CYLINDER)

main90468-12134×8iTE70,71..GT,LVN,LVS,SR197903-198304

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47730-12120iTE71197903-197908

main47730-12121iTE70,71..GT,LVN,LVS,SR197908-198304

47831PISTON, REAR DISC BRAKE

main47701-14010×2iTE70,71..GT,LVN,LVS,SR197903-198304

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90522-45001×2iTE70,71..GT,LVN,LVS,SR197903-198304

47831BWASHER, CONICAL SPRING

main90208-11001×14iTE70,71..GT,LVN,LVS,SR197903-198304

47831CRING, O

main90301-07002×2iTE70,71..GT,LVN,LVS,SR197903-198304

47831DRING(FOR REAR DISC BRAKE)

main90562-08002×2iTE70,71..GT,LVN,LVS,SR197903-198304

47833BOOT, PARKING BRAKE CRANK, RH

main47633-14010iTE70,71..GT,LVN,LVS,SR197903-198304

47833ARING, SET(FOR REAR DISC BRAKE CRANK)

main90522-23001×2iTE70,71..GT,LVN,LVS,SR197903-198304

47833BRING, SET(FOR REAR DISC BRAKE BOOT)

main90522-55001×2iTE70,71..GT,LVN,LVS,SR197903-198304

47834BOOT, PARKING BRAKE CRANK, LH

main47634-14010iTE70,71..GT,LVN,LVS,SR197903-198304

47839PIN, PARKING BRAKE CRANK STOPPER

main47639-14010×2iTE70,71..GT,LVN,LVS,SR197908-198304

47839APIN, SLOTTED SPRING(FOR CRANK STOPPER PIN)

main90254-04010×2iTE70,71..GT,LVN,LVS,SR197908-198304

47845SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-14030×4iTE70,71..GT,LVN,LVS,SR197903-198304

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-14040×4iTE70,71..GT,LVN,LVS,SR197903-198304

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47750-12120iTE71197903-197908

main47750-12121iTE70,71..GT,LVN,LVS,SR197908-198304

47851BRACKET, CABLE SUPPORT, RH

main46451-14010iTE70,71..GT,LVN,LVS,SR197903-198304

47852BRACKET, CABLE SUPPORT, LH

main46452-14010iTE70,71..GT,LVN,LVS,SR197903-198304

47853PLATE, CYLINDER GUIDE(FOR REAR DISC BRAKE)

main47753-14040×4iTE70,71..GT,LVN,LVS,SR197903-198304

47875BOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-14030×2iTE70,71..GT,LVN,LVS,SR197903-198304

47875APIN, SLOTTED SPRING

main90254-02001×2iTE70,71..GT,LVN,LVS,SR197903-198304

47875BSPRING, TORSION(FOR PAD ADJUSTING BOLT)

main90508-24003×2iTE70,71..GT,LVN,LVS,SR197903-198304

47875CBEARING, NEEDLE ROLLER(FOR PAD ADJUSTING BOLT)

main90364-15001×4iTE70,71..GT,LVN,LVS,SR197903-198304

47875DRING, SHAFT SNAP

main90520-14001×2iTE70,71..GT,LVN,LVS,SR197903-198304

47881ABOLT(FOR DUST COVER)

main42184-22011×8iTE70,71..GT,LVN,LVS,SR197903-198304

47881BNUT(FOR DUST COVER)

main94181-11000×8iTE70,71..GT,LVN,LVS,SR197903-198304

47891COVER, DISC BRAKE CALIPER DUST, REAR RH

main47891-12010iTE70,71..GT,LVN,LVS,SR197903-198304

47891ABOLT(FOR DISC BRAKE CALIPER DUST REAR)

main90101-08045×4iTE70,71..GT,LVN,LVS,SR197903-198304

47892COVER, DISC BRAKE CALIPER DUST, REAR LH

main47892-12010iTE70,71..GT,LVN,LVS,SR197903-198304

9111171020

main91111-71020

9451200800

main94512-00800

9453101000

main94531-01000

48 parts on this diagram · 2 diagrams in section
