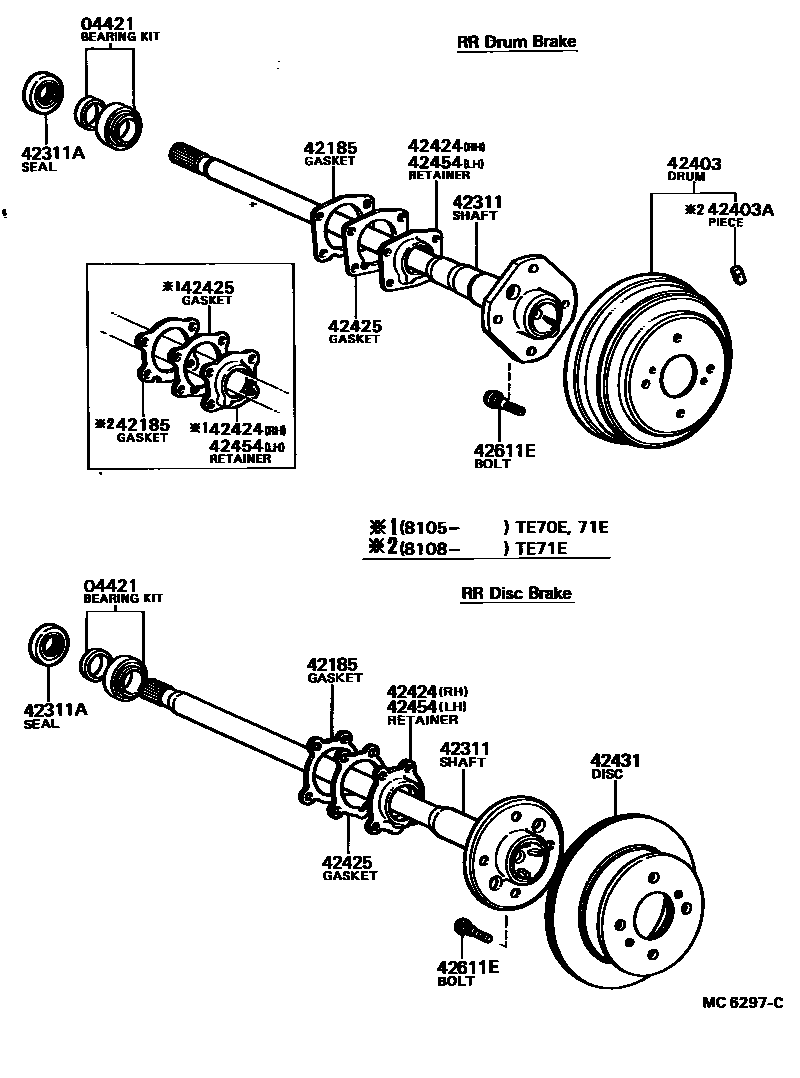

REAR AXLE SHAFT & HUB

04421BEARING KIT, REAR AXLE SHAFT

main04421-12010×2iAE70,CE70,KE70197903-198304

RR DRUM BRAKE

main04421-13010×2iCE71,72,KE71,72,73,74,TE73,74197908-198707

RR DRUM BRAKE

main04421-14010×2iTE70,71..GT,LVN,LVS,SR197903-198304

RR DISC BRAKE

main04421-30011×2iTE71198108-198304

RR DRUM BRAKE

42185GASKET, REAR AXLE HOUSING END

main42185-12010×2iKE70197903-198304

RR DRUM BRAKE

main42185-12020×2iTE70197908-198108

RR DRUM BRAKE

main42185-13020×2iCE71,72,KE71,72,73,74,TE73,74197908-198707

RR DRUM BRAKE

main42185-14010×2iTE70,71..GT,LVN,LVS,SR197903-198304

RR DISC BRAKE

main42185-14020×2iTE71198108-198304

RR DRUM BRAKE

main42185-22010×2iAE70,CE70197903-198304

RR DRUM BRAKE

42311SHAFT, REAR AXLE

main42311-12070×2iKE70197903-198304

RR DRUM BRAKE

main42311-12080×2iAE70,CE7#,KE71,72,73,74,TE73,74197903-198707

RR DRUM BRAKE

main42311-12100×2iTE71197908-198304

RR DISC BRAKE,W/LSD

main42311-14090×2iTE71..GT,LVN198108-198304

RR DRUM BRAKE

main42311-14120×2iTE70,71..GT,LVN,SR197903-198304

RR DISC BRAKE

main42311-15010×2iTE71198108-198304

RR DRUM BRAKE,W/LSD

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055×2iAE70,CE7#,KE7#,TE73,74197903-198707

main90311-52059×2iTE70,71197903-198304

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12050×2iAE70,CE7#,KE7#,TE70,73,74197903-198502

main42431-12081×2iTE71198209-198304

main42431-12110×2iCE7#,KE7#198502-198707

main42431-27020×2iTE71198108-198209

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01020iTE71198108-198304

main90937-01021iTE71198108-198304

main90937-01023iTE71198108-198304

main90937-01032iTE71198108-198304

main90937-01033iTE71198108-198304

main90937-01034iTE71198108-198304

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14010iTE70,71..GT,LVN,LVS,SR197903-198304

RR DISC BRAKE

main42424-14020iTE71198108-198304

RR DRUM BRAKE

main42424-20010iAE70,CE7#,KE7#,TE73,74197903-198707

RR DRUM BRAKE

main42424-21010iTE70197908-198105

RR DRUM BRAKE

42425GASKET, REAR AXLE BEARING RETAINER

main42425-13010×2iCE71,72,KE71,72,73,74,TE73,74197908-198707

RR DRUM BRAKE

main42425-14010×2iTE70,71..GT,LVN,LVS,SR197903-198304

RR DISC BRAKE

main42425-14020×2iTE70198105-198108

RR DRUM BRAKE

main42425-20010×2iAE70,CE70,KE70197903-198304

RR DRUM BRAKE

main42425-22020×2iTE70197908-198105

RR DRUM BRAKE

42431DISC, REAR

main42431-12070×2iTE70,71..GT,LVN,LVS,SR197903-198304

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-14010iTE70,71..GT,LVN,LVS,SR197903-198304

RR DISC BRAKE

main42454-14010iTE70198105-198108

RR DRUM BRAKE

main42454-20010iAE70,CE7#,KE7#,TE73,74197903-198707

RR DRUM BRAKE

main42454-21010iTE70197908-198105

RR DRUM BRAKE

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iAE70,CE7#,KE7#,TE7#197903-198305

main90942-02047×8iCE7#,KE7#,TE74198305-198707

11 parts on this diagram · 1 diagram in section
