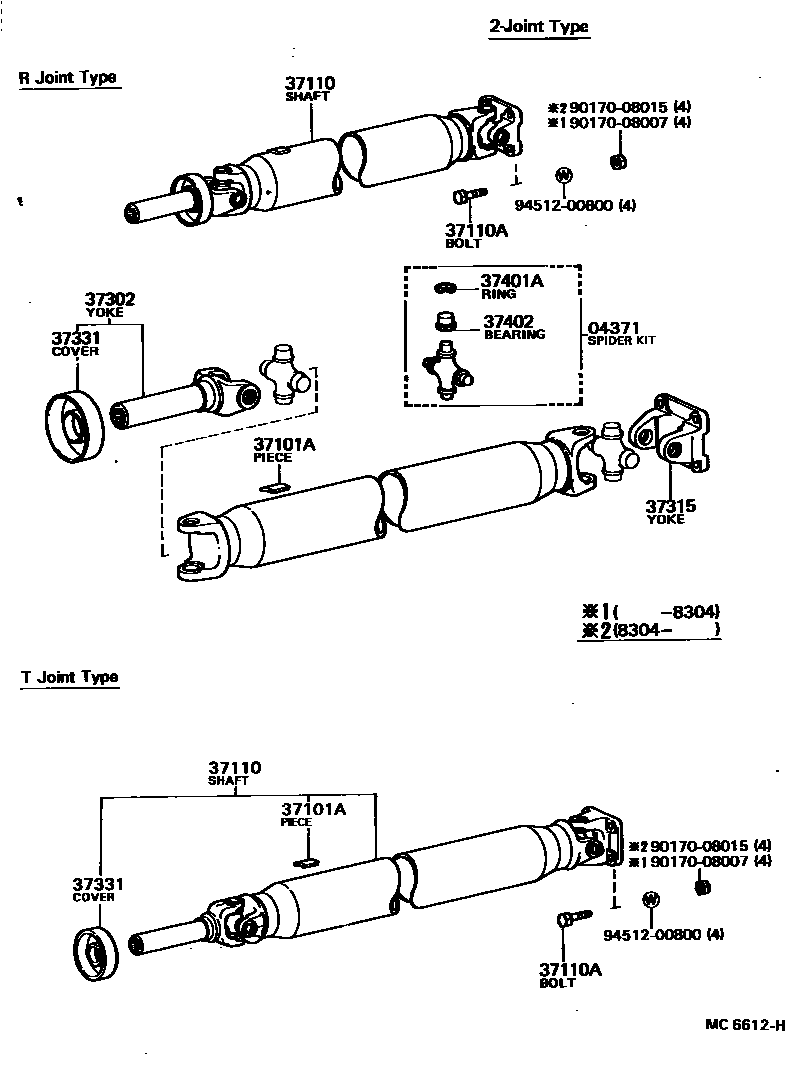

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-10011×2iAE70,KE7#..2FC,4F,5F197903-198108

main04371-22010×2iCE71,KE74,TE73,74..3FC,4F,5F197908-198707

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132×3iAE70,CE7#,KE7#,TE7#197903-198707

main90937-01136×3iAE70,CE7#,KE7#,TE7#197903-198608

main90937-01140×3iAE70,CE7#,KE7#,TE7#197903-198608

main90937-01147×3iAE70,CE7#,KE7#,TE7#197903-198707

main90937-01148×3iAE70,CE7#,KE7#,TE7#197903-198707

main90937-01149×3iAE70,CE7#,KE7#,TE7#197903-198707

main90937-01150×3iAE70,CE7#,KE7#,TE7#197903-198707

main90937-01151×3iAE70,CE7#,KE7#,TE7#197903-198707

main90937-01152×3iAE70,CE7#,KE7#,TE7#197903-198707

main90937-01153×3iAE70,CE7#,KE7#,TE7#197903-198608

main90937-01154×3iAE70,CE7#,KE7#,TE7#197903-198608

main90937-01155×3iAE70,CE7#,KE7#,TE7#197903-198608

main90937-01156×3iAE70,CE7#,KE7#,TE7#197903-198608

main90937-01157×3iAE70,CE7#,KE7#,TE7#197903-198608

main90937-01158×3iAE70,CE7#,KE7#,TE7#197903-198608

37110SHAFT ASSY, PROPELLER

main37110-12290iKE70197903-198108

R JOINT TYPE

main37110-12301iAE70,KE74..3FC197910-198707

T JOINT TYPE

main37110-12330iCE70,72198202-198707

3-JOINT TYPE

main37110-12340iTE70,71197903-198304

3-JOINT TYPE

main37110-12350iAE70,KE71,72,73..MTM197903-198505

R JOINT TYPE

main37110-12430iTE70..MTM..(GL,SL)197908-198108

Z-JOINT TYPE (T JOINT)

main37110-12440iTE70..3FC..(GL,SL)197908-198108

Z-JOINT TYPE (T JOINT)

main37110-12450iKE70..3FC198108-198304

T JOINT TYPE

main37110-12490iCE71..4FC198508-198707

T JOINT TYPE

main37110-12520iKE72,73198505-198707

T JOINT TYPE

main37110-13010iTE73,74..4F198106-198308

R JOINT TYPE

main37110-13040iKE74..MTM198503-198707

T JOINT TYPE

main37110-13050iKE74..MTM198308-198503

R JOINT TYPE

main37110-21010iTE73,74..3FC197908-198308

R JOINT TYPE

main37110-21030iTE73..4F197908-198106

R JOINT TYPE

main37110-21120iCE71..5F198608-198707

T JOINT TYPE

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08018×4iKE70197903-198102

main90101-08062×4iCE70,TE70,71; TE70..GL,SL;AE70,CE71,KE7#,TE73,74198102-198304

2-JOINT TYPE; 3-JOINT TYPE

main90101-08082×4iCE71,KE7#,TE74198304-198707

main90101-08214×8iTE70,71; TE70..GL,SL;AE70,KE71,TE73197903-198102

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-12011iAE70,KE7#..2FC,4F,5F197903-198108

main37302-14010iTE73..4F197908-198106

main37302-14030iKE74,TE73,74..MTM198106-198707

main37302-20040iCE71..5F198202-198707

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-12010iKE70197903-198108

main37315-12040iAE70,KE71,72,73..MTM197903-198707

main37315-20020iCE71,KE74,TE73,74..3FC,4F,5F197908-198707

37331COVER, SLIDING SHAFT DUST

main37331-12010iAE70,KE7#,TE7#..2FC,4F,5F197903-198108

main37331-30010iAE70,TE70,73..3FC197908-198108

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90521-22011×8iAE70,KE70,72,73..MTM198108-198707

main90521-22012×8iAE70,KE70,72,73..MTM198108-198707

main90521-22013×8iAE70,KE70,72,73..MTM198108-198707

main90521-29070×4iCE71,KE74,TE73,74..3FC,4F,5F197908-198707

main90521-29071×4iCE71,KE74,TE73,74..3FC,4F,5F197908-198707

main90521-29072×4iCE71,KE74,TE73,74..3FC,4F,5F197908-198707

main90521-29073×4iCE71,KE74,TE73,74..3FC,4F,5F197908-198707

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-10020×8iAE70,KE7#..2FC,4F,5F197903-198108

main37402-22020×8iCE71,KE74,TE73,74..3FC,4F,5F197908-198707

9017008007

main90170-08007

9017008015

main90170-08015

9451200800

main94512-00800

12 parts on this diagram · 2 diagrams in section
