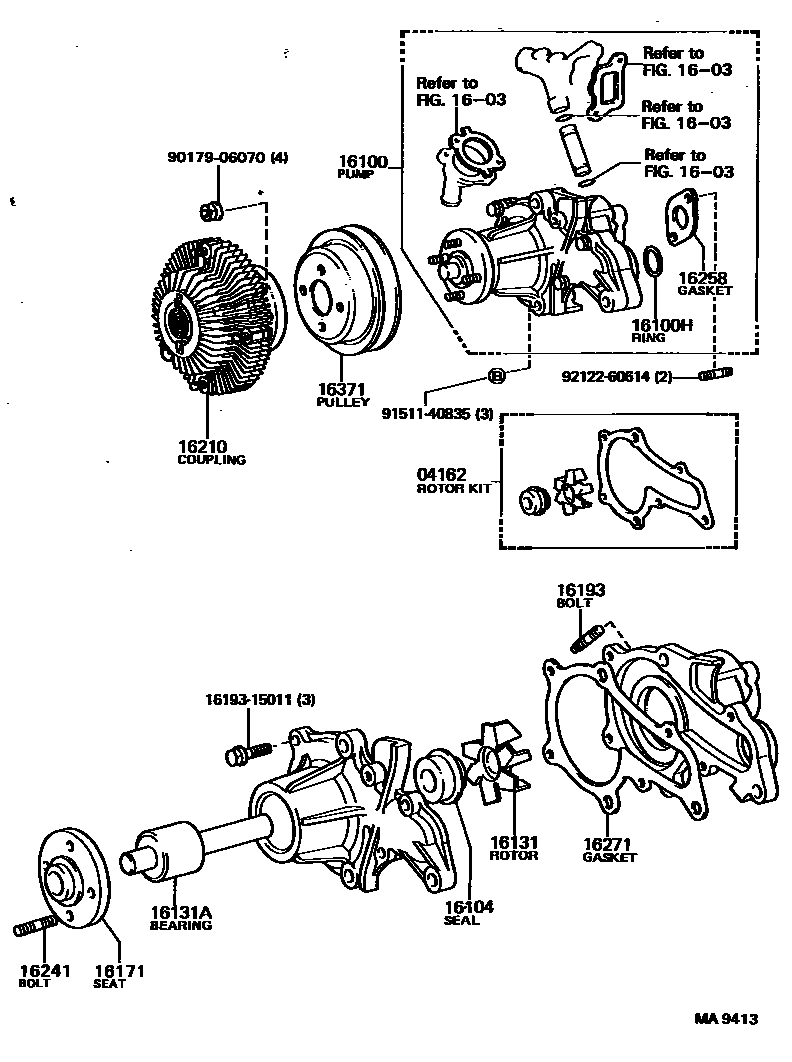

WATER PUMP

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

04162ROTOR KIT, WATER PUMP

main04162-13010i4K#..KE7#197903-197910

main04162-13011i4K#..KE7#197910-198106

main04162-13012i4K#..KE7#198106-198304

main04162-15010i3AU..AE70197903-198304

main04162-28010i12TJ,13TU,2TGEU..TE7#197908-198108

main04162-28020i12TJ,2TGEU..TE7#198108-198201

main04162-28021i12TJ,2TGEU..TE7#198201-198308

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19015i4K#..KE7#197903-198108

main16100-19016i4KU..KE73198304-198307

main16100-19035i3AU..AE70197903-198112

main16100-19036i3AU..AE70198112-198304

main16100-19056i4KU..KE73198307-198509

main16100-19075i4KJ..KE72; 4KU..KE70..3FC198108-198304

main16100-19076i4KU..KE70..3FC198304-198304

main16100-19165i4KU..KE73198509-198707

main16100-28020i12TJ,13TU..TE70,73,74197908-198308

main16100-69085i1C..CE7#198202-198707

main16100-88260i2TGEU..TE71197903-198304

16100HRING, O(FOR WATER PUMP)

main96710-02035i3AU..AE70197903-198112

main96711-24035i3AU..AE70198112-198304

16104SEAL SET, WATER PUMP

main16104-15020i4K#,5KJ..KE7#198311-198707

main16104-41110i12TJ,13TU,2TGEU..TE7#; 3AU..AE70197903-197911

main16104-41111i2TGEU..TE71; 3AU..AE70198304-198304

main16104-41112i4K#,5KJ..KE7#198304-198311

16131ROTOR, WATER PUMP

main16131-13010i4K#,5KJ..KE7#197903-198707

main16131-15010i3AU..AE70197903-198304

main16131-26010i12TJ,13TU,2TGEU..TE7#197903-198308

16131ABEARING, WATER PUMP

main16140-38011i12TJ,13TU,2TGEU..TE7#197903-198308

WPB16101BBR

main90369-30014i3AU..AE70197903-198304

WPB16114RRS

main90369-30028i4KU..KE70..3FC198108-198304

main90369-30063i4KU..KE70,73..MTM198108-198707

WPB16105BRS

16171SEAT, WATER PUMP PULLEY

main16171-15020i4KJ..KE72; 4KU..KE70..3FC198108-198205

main16171-24031i4KU..KE70,73..MTM198108-198707

main16171-26021i12TJ,13TU,2TGEU..TE7#; 3AU..AE70197903-198205

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010×2i3AU..AE70197903-198304

16210COUPLING ASSY, FLUID

main16210-13020i4KU..KE70..3FC198108-198304

main16210-15010i3AU..AE70198108-198304

main16210-28020i12TJ,2TGEU..TE7#198108-198308

main16210-64010i1C..CE7#..5F198508-198707

main16210-64020i1C..CE71..4FC198508-198707

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020×4i4KU..KE70..3FC;4KJ,5KJ..KE72,74198108-198707

main16241-15020×4i3AU..AE70198001-198304

main16241-28020×4i2TGEU..TE71197911-198304

main90116-06008×4i12TJ,13TU..TE70,73,74197911-198308

16258GASKET(FOR HEATER RETURN)

main16258-15010i3AU..AE70197903-198112

main16258-15011i3AU..AE70198112-198304

16271GASKET, WATER PUMP

main16124-15010i3AU..AE70197903-198304

main16129-25010i2TGEU..TE71197903-197911

main16129-25011i12TJ,13TU,2TGEU..TE7#197911-198201

main16129-25012i12TJ,2TGEU..TE7#198201-198308

main16271-13020i4K#..KE7#197903-198106

main16271-13021i4K#,5KJ..KE7#198106-198707

main16271-64010i1C..CE7#198202-198707

16371PULLEY, FAN

main16173-26021i2TGEU..TE71; 3AU..AE70198205-198304

main16173-28010i12TJ,13TU..TE70,73,74197908-198308

main16371-13030i4KU..KE70..3FC;4KJ,5KJ..KE72,74198108-198707

main16371-15020i3AU..AE70197903-198205

main16371-24040i4KJ..KE71197908-198108

W/COOLER

main16371-24050i4KU..KE70,73..MTM198108-198707

main16371-64011i1C..CE7#198202-198707

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9017906070

main90179-06070

9151140835

main91511-40835

9212260614

main92122-60614

18 parts on this diagram · 6 diagrams in section
