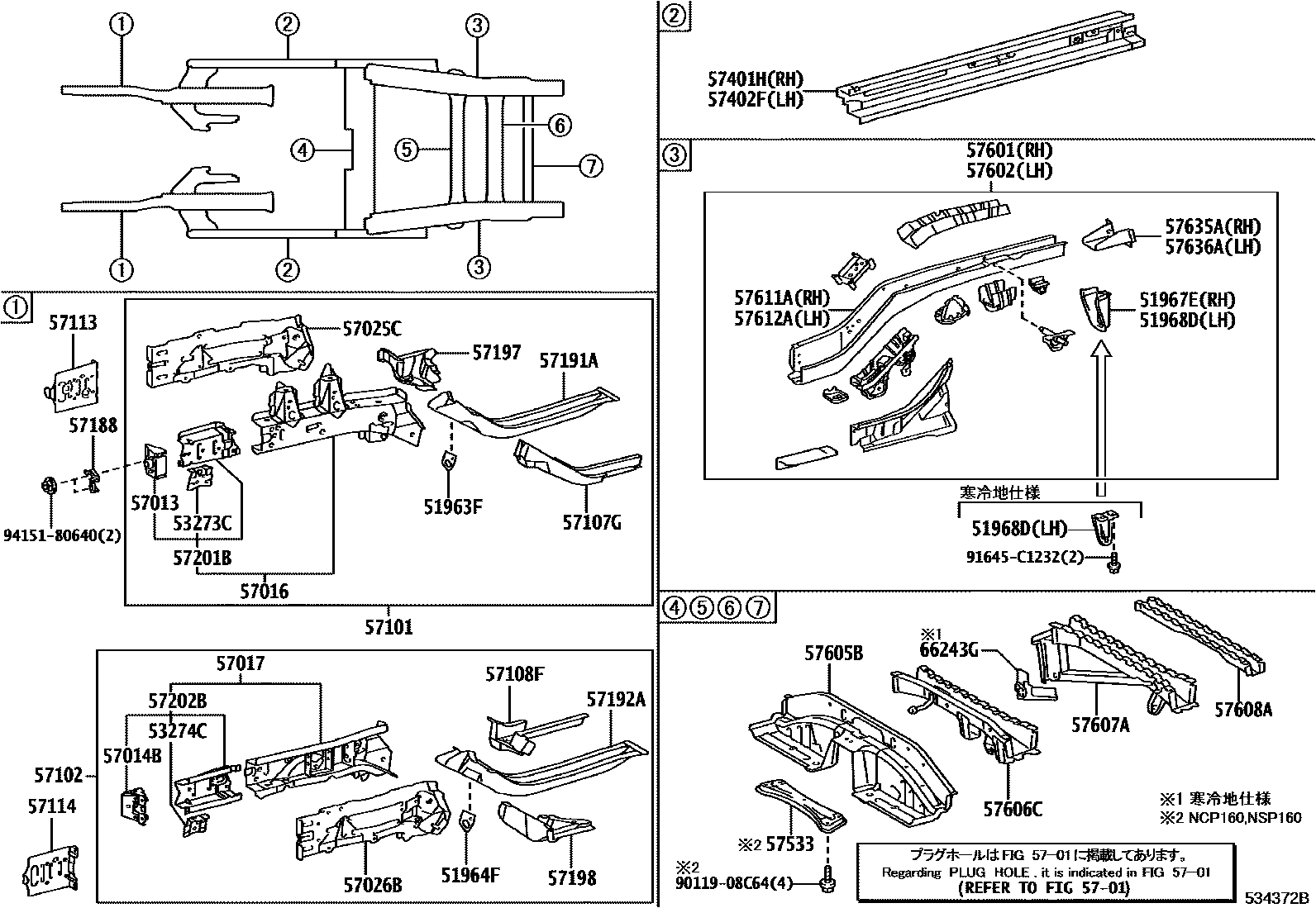

51963FHOOK, TRANSPORT

main51963-52050i201409

51964FHOOK, TRANSPORT, LH

main51963-52050i201409

51967EHOOK, TRANSPORT, REAR RH

main51968-52040i201409

51968DHOOK, TRANSPORT, REAR LH

main51095-52010supersedes 51968-52040i201409

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-52030i201409

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-52020i201409

5701HOLE PLUG

→ Go to FIG 57-01

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52040i201409

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52030i201409

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-52090i201409

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-52100i201409

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-52010i201409

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-52010i201409

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-52210i201409

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-52270i201409

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-52030i201409

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-52030i201409

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-52010i201409

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-52010i201409

57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-52020i201409

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52020i201409

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52020i201409

57197BOX, TORQUE, FRONT RH

main57197-52040i201409

57198BOX, TORQUE, FRONT LH

main57198-52040i201409

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-52020i201409

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-52020i201409

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-52220i201409

main57401-52240i201812

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-52240i201409

main57402-52290i201812

57533BRACE, FRONT FLOOR, CENTER

main57533-52030i201409

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52360i201409

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52420supersedes 57602-52410i201409

main57602-52510supersedes 57602-52460i201812

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52210i201409

main57605-52250i201812

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52200i201409

main57606-52270i201812

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-52140i201409

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57655-52021i201409

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-52090i201409

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-52110i201409

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-52110i201409

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57804-52030supersedes 57636-52110i201409

66243GPROTECTOR, REAR BODY, NO.1

main66243-52020i201409

9011908C64

main90119-08C64

91645C1232

main91645-C1232

9415180640

main94151-80640
