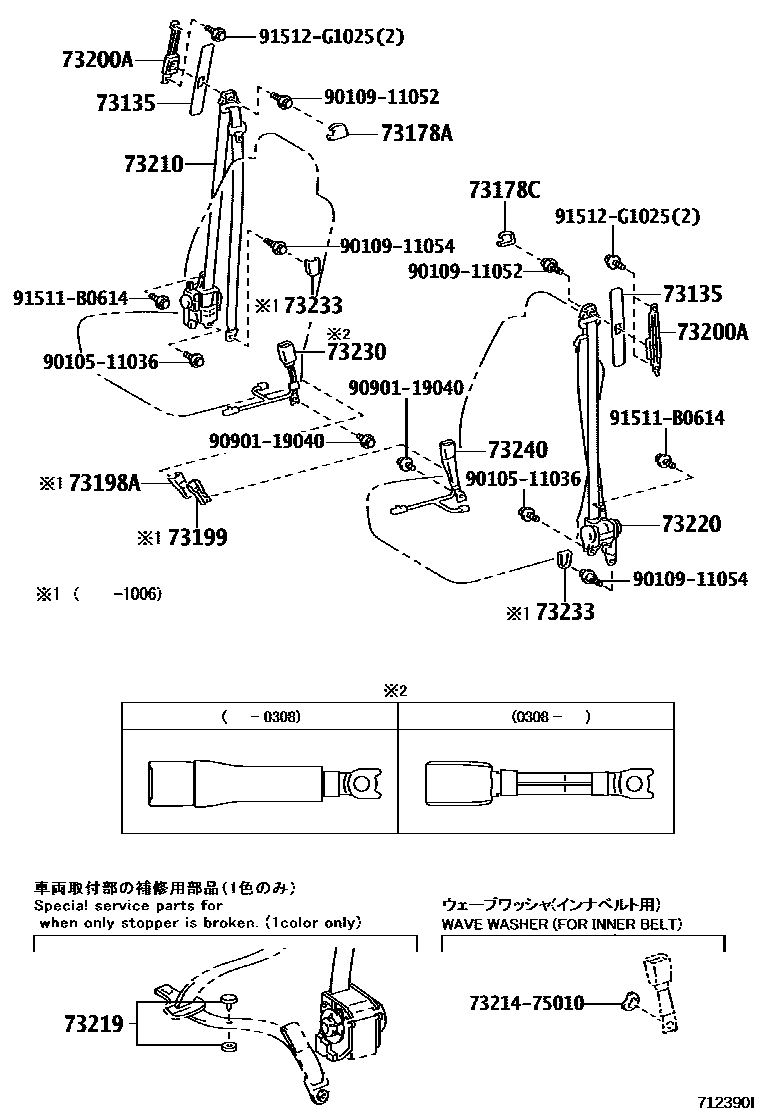

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-12030-B9×2iNCP5#,NLP51200206-201409

LT.GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-B3iNCP5#,NLP51200206-201409

LT.GRAY,TRIM1#

73178CCAP, SEAT BELT ANCHOR COVER

main73178-33020-B3iNCP5#,NLP51200206-201409

LT.GRAY,TRIM1#

73198ACOVER, FRONT SEAT BELT INNER ANCHOR, RH

main73198-52010-B0iNCP5#,NLP51200401-201006

DK.GRAY,TRIM1#

main73198-68010-B0iNCP5#,NLP51200308-200401

DK.GRAY,TRIM1#

73199COVER, FRONT SEAT BELT INNER ANCHOR, LH

main73198-52010-B0iNCP5#,NLP51200401-201006

DK.GRAY,TRIM1#

main73198-68010-B0iNCP5#,NLP51200308-200401

DK.GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12050-B6×2iNCP5#,NLP51200206-201409

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-52340-C0iNCP5#,NLP51200206-200308

BLACK,TRIM1#

main73210-52370-C0iNCP5#,NLP51200308-200807

BLACK,TRIM1#

main73210-52710-C0iNCP5#200808-201205

BLACK,TRIM1#

main73210-52710-C1iNCP5#201205-201409

BLACK,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iNCP5#201206

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-52420-C0iNCP5#,NLP51200308-200807

BLACK,TRIM1#

main73220-52720-C0iNCP5#200808-201205

BLACK,TRIM1#

main73220-52720-C1iNCP5#201205-201409

BLACK,TRIM1#

main73220-52300-C0iNCP50,51,52,55,NLP51200308-201005

main73220-52360-C0supersedes 73220-52380-C0iNCP5#,NLP51200206-200308

main73220-52730-C0iNCP50,51,52,55201006-201205

main73220-52730-C1iNCP50,51,52,55201205-201409

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-52300-B0supersedes 73230-52150-B0iNCP5#,NLP51..DX,F,GL,TX,U,UL200206-200308

DK.GRAY,TRIM1#

main73230-52450-B0iNCP5#,NLP51200308-200612

DK.GRAY,TRIM1#

main73230-52451-B0iNCP5#,NLP51200701-201409

DK.GRAY,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-B1iNCP5#,NLP51200206-201006

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-52170-B0iNCP5#,NLP51..DX,F,GL,TX,U,UL200206-200308

DK.GRAY,TRIM1#

main73230-52280-B0iNCP5#201205-201409

DK.GRAY,TRIM1#

main73230-52460-B0iNCP5#,NLP51200308-200612

DK.GRAY,TRIM1#

main73230-52461-B0iNCP5#,NLP51200701-201205

DK.GRAY,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511036

main90105-11036

9010911052

main90109-11052

9010911054

main90109-11054

9090119040

main90901-19040

91511B0614

main91511-B0614

91512G1025

main91512-G1025

19 parts on this diagram · 2 diagrams in section
