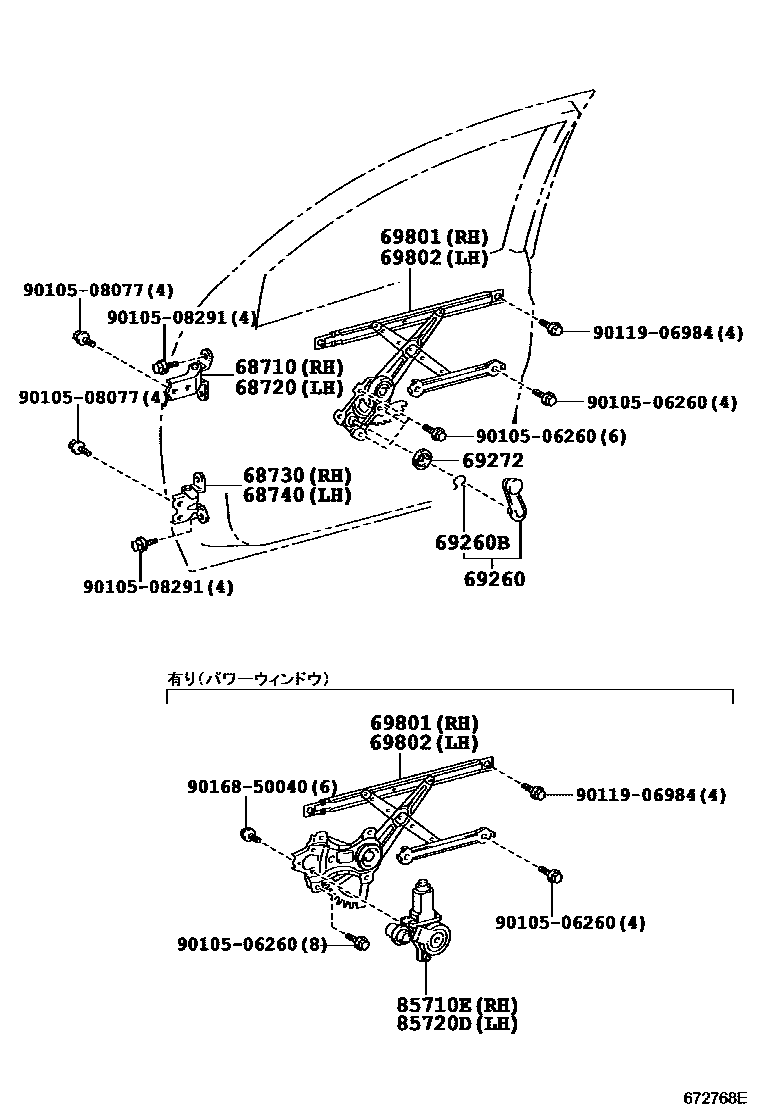

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iNCP5#,NLP51200206-200609

main68710-12151iNCP5#,NLP51200610-201409

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iNCP5#,NLP51200206-200609

main68720-12151iNCP5#,NLP51200610-201409

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010iNCP5#,NLP51200206-201409

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010iNCP5#,NLP51200206-201409

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-B6×2iNCP50,51,55,58,59,NLP51..DX,DXJ,F,U; NCP50,51,55,NLP51..DX,GL; NCP58,59..F200206-200508

main69260-52070-B0×2iNCP50,51,55,58,59,NLP51..DX,F,U; NCP50,51,55,NLP51..PROB200509-201409

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×8iNCP50,51,55,58,59,NLP51..DX,DXJ,F,U; NCP50,51,55,NLP51..DX,GL200206

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iNCP50,51,55,58,59,NLP51..DX,DXJ,F,U; NCP50,51,55,NLP51..DX,GL200206

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52080iNCP50,51,55,58,59,NLP51..DX,F,U; NCP50,51,55,NLP51..DX; NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL200206

main69810-52220iNCP50,51,55,58,59,NLP51..DX,DXJ,F,U200206

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52080iNCP50,51,55,58,59,NLP51..DX,F,U; NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL200206

main69820-52190iNCP50,51,55,58,59,NLP51..DX,DXJ,F,U; NCP50,51,55,NLP51..GL200206

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-42080iNCP50,51,55,58,59,NLP51..DX,F,U; NCP50,51,55,NLP51..DX; NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL200301

main85710-52130iNCP5#,NLP51..DX,F,U; NCP5#,NLP51..GL,TX,UL; NCP50,51,55,NLP51..DX; NCP58,59..F200206-200301

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12210iNCP50,51,55,58,59,NLP51..DX,F,U; NCP52;NCP50,51,55,58,59,NLP51..GL,TX,UL; NCP58,59..F200206-201109

main85720-35140iNCP50,51,55,58,59..DX,F,U; NCP52;NCP50,51,55,58,59..GL,TX,UL201109

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9011906984

main90119-06984

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
