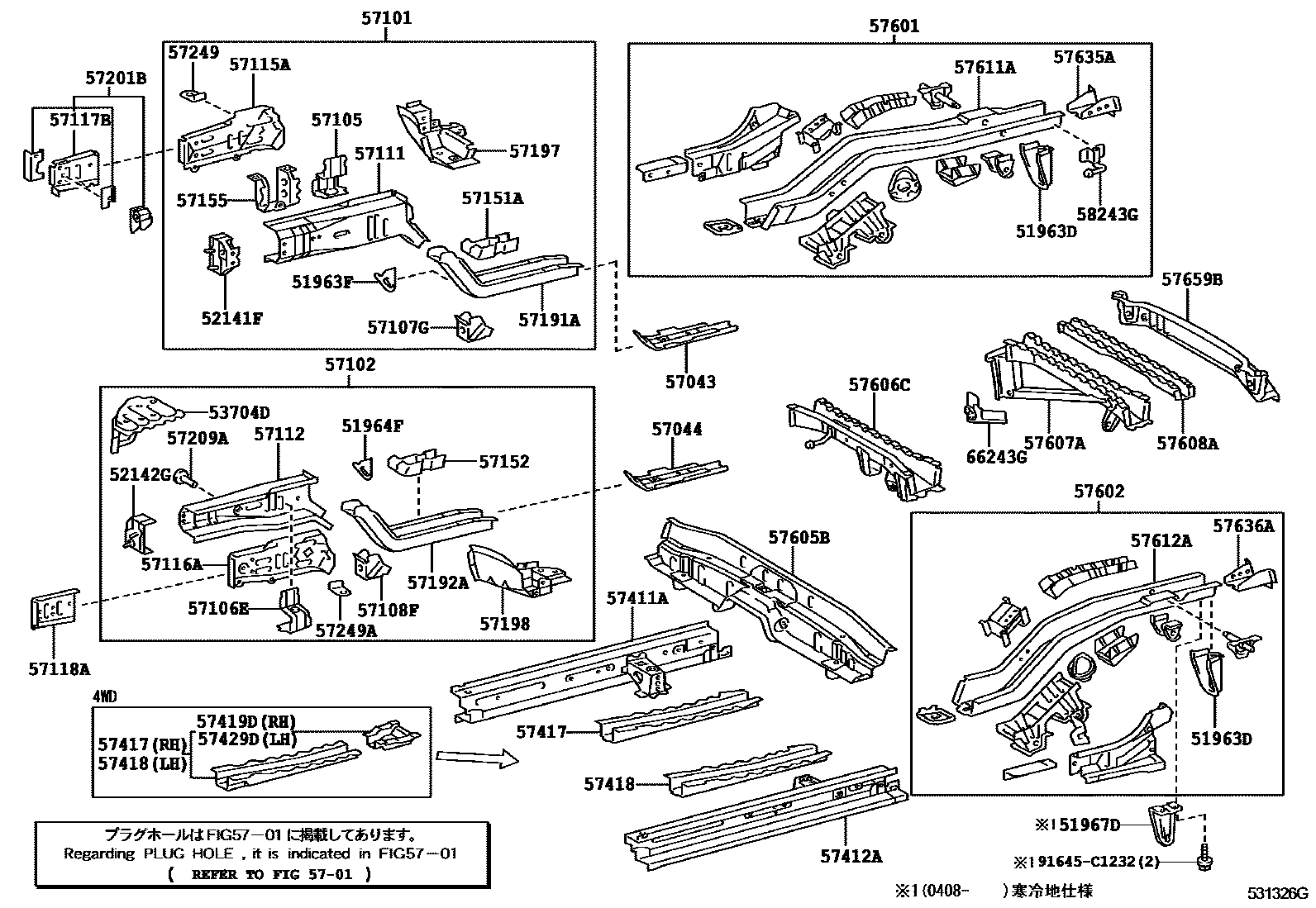

FLOOR SIDE MEMBER

0001 1 0002 1

51963DHOOK, TRANSPORT, REAR LH

main51968-52040×2iNCP52,55;NCP51,58,59,NLP51..F,TX,U,UL200206

51963FHOOK, TRANSPORT

main51963-52020iNCP5#,NLP51200206

51964FHOOK, TRANSPORT, LH

main51964-52020iNCP5#,NLP51200206

51967DHOOK SUB-ASSY,REAR

main51095-52010iNCP5#,NLP51200408

52141FARM, FRONT BUMPER, RH

main52141-52060iNCP5#,NLP51200206

52142GARM, FRONT BUMPER, LH

main52142-52040iNCP5#,NLP51200206

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-52010iNCP5#,NLP51200206

5701HOLE PLUG

→ Go to FIG 57-01

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52010iNCP5#,NLP51200206

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52020iNCP5#,NLP51200206

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-52130iNCP5#,NLP51200206-201409

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-52140iNCP5#,NLP51200206-201409

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-52010iNCP5#,NLP51200206

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57105-52010iNCP5#,NLP51200206

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-52020iNCP5#,NLP51200206

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-52020iNCP5#,NLP51200206

57111MEMBER, FRONT SIDE, RH

main57111-52010iNCP5#,NLP51200206

57112MEMBER, FRONT SIDE, LH

main57112-52010iNCP5#,NLP51200206

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-52010iNCP5#,NLP51200206

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-52010iNCP5#,NLP51200206

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-52020iNCP5#,NLP51200206

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-52010iNCP5#,NLP51200206

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-52010iNCP5#,NLP51200206

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57153-52010iNCP5#,NLP51200206

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-52011iNCP5#,NLP51200206-200412

main57155-52012iNCP5#,NLP51200412

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52900iNCP5#,NLP51200206

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52011iNCP5#,NLP51200206

57197BOX, TORQUE, FRONT RH

main57077-52030iNCP5#,NLP51200206

57198BOX, TORQUE, FRONT LH

main57078-52030iNCP5#,NLP51200206

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-52010iNCP5#,NLP51200206

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-16090iNCP5#,NLP51200206

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iNCP5#,NLP51200206

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040iNCP5#,NLP51200206

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-52100iNCP5#,NLP51200206-201409

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-52060iNCP5#,NLP51200206-201409

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-52011iNCP50,51,52,58,NLP51200206

main57417-52021iNCP55,59200206

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-52011iNCP50,51,52,58,NLP51200206

main57417-52021iNCP55,59200206

57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-52040iNCP55,59200206

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-52040iNCP55,59200206

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52120iNCP55;NCP51,58,59,NLP51..F,TX,U,UL200206

main57601-52130iNCP52200304

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52120iNCP55;NCP51,58,59,NLP51..F,TX,U,UL200206-200408

main57602-52240iNCP50,51,55,58,59,NLP51; NCP51..DX;NCP55..4FC..DX200408-201409

main57602-52260iNCP51..5F..DX;NCP55..4FC..DX; NCP55..PROB;NCP50,51..PROB..5F; NCP55;NCP50,51..5F200408-201006

main57602-52270supersedes 57602-52250iNCP52200408-201409

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52050iNCP51,58,NLP51..F,TX,U,UL200206

main57605-52060iNCP55,59200206

main57605-52070iNCP52200304

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52100iNCP50,51,NLP51..PROB200206-200304

main57606-52101iNCP50,51,55201403-201409

main57606-52150iNCP52200304-201402

main57606-52151iNCP52201403-201409

main57606-52090iNCP51..4FC..DX; NLP51..PROB;NCP50,51..PROB..4FC; NLP51;NCP50,51..4FC200408-201402

main57606-52091iNCP50,51..4FC; NCP50,51..PROB..4FC; NCP51..4FC..DX201403-201409

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-52040iNCP55;NCP51,58,59,NLP51..F,TX,U,UL200206-201402

main57607-52041iNCP50,51,55201403

main57607-52080iNCP52200304-201402

main57607-52081iNCP52201403

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57655-52020iNCP52,55;NCP51,58,59,NLP51..F,TX,U,UL200206-201402

main57655-52021iNCP5#201403

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-52030iNCP55;NCP51,58,59,NLP51..F,TX,U,UL200206

main57611-52060iNCP52200304

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-52040iNCP55;NCP51,58,59,NLP51..F,TX,U,UL200206-200408

main57612-52070iNCP52200304-200408

main57612-52080iNCP50,51,55,58,59,NLP51; NCP51..DX;NCP55..4FC..DX200408

main57612-52090iNCP52200408

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-52060iNCP55;NCP51,58,59,NLP51..F,TX,U,UL200206

main57635-52110iNCP52200304

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57636-52060iNCP52,55;NCP51,58,59,NLP51..F,TX,U,UL200206-200408

main57636-52110iNCP5#,NLP51; NCP51..DX;NCP55..4FC..DX200408

main57804-52030iNCP51..5F..DX;NCP55..4FC..DX; NCP55..PROB;NCP50,51..PROB..5F; NCP55;NCP50,51..5F200408-201006

57659BMEMBER, REAR FLOOR CROSS, REAR INNER

main57659-52050iNCP52,55;NCP51,58,59,NLP51..F,TX,U,UL200206

58243GBRACKET, EXHAUST PIPE MOUNTING SIDE, RH

main58243-52040iNCP55;NCP51,58,59,NLP51..F,TX,U,UL200206

66243GPROTECTOR, REAR BODY, NO.1

main66243-52020iNCP5#,NLP51200206

91645C1232

main91645-C1232

53 parts on this diagram · 2 diagrams in section
