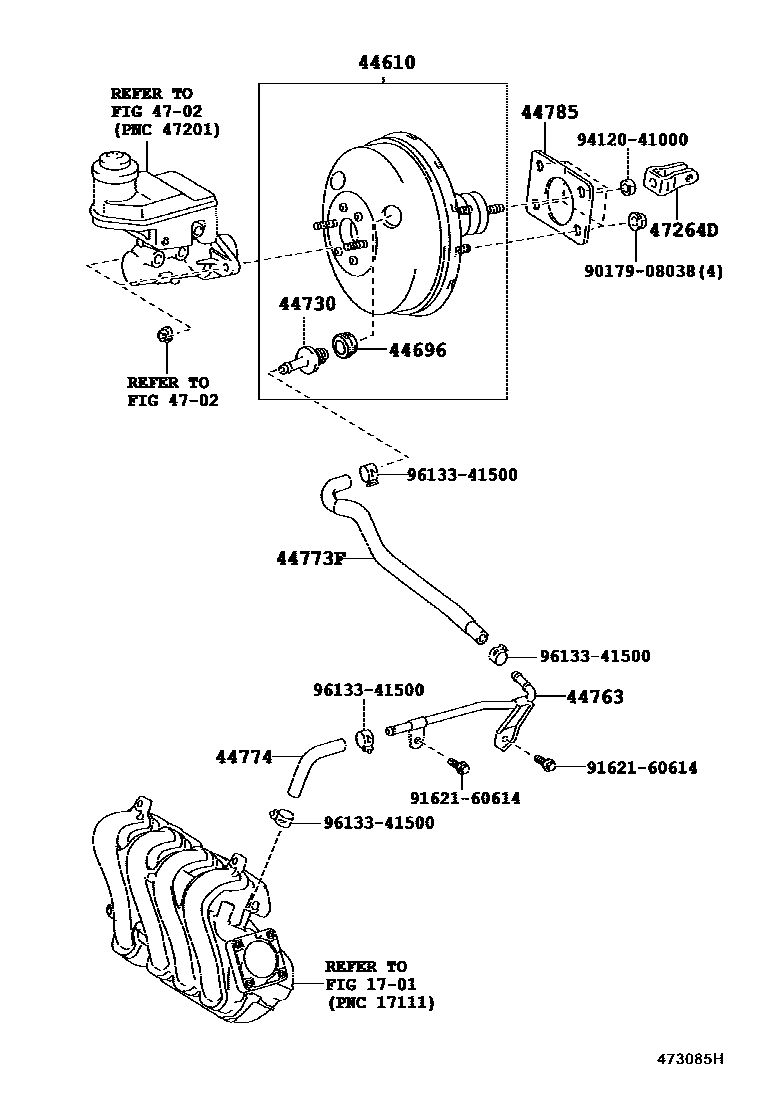

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-52170iNCP5#..DX,F,GL,TX,U,UL200206-200808

main44610-52780iNCP5#200808-201409

main44610-52110supersedes 44610-52170iNCP50,55..DXJ200206-200304

main44610-52200supersedes 44610-52180iNLP51..DX,GL,U,UL200206-200708

main44610-52790iNCP55;NCP50,51..5F200808-201006

44696GROMMET, CHECK VALVE

main90480-24439iNCP50,55..DXJ200206-200304

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iNCP50,55..DXJ200206-200304

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP50,55..DXJ200206-200304

44773FHOSE, UNION TO CHECK VALVE

main44773-52080iNCP50,55..DXJ200206-200304

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP50,55..DXJ200206-200304

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP50,55,NLP51..DXJ200206-200304

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52010iNCP50,55,NLP51..DXJ200206-200304

main47264-52040iNCP5#200808

9017908038

main90179-08038

9162160614

main91621-60614

9412041000

main94120-41000

9613341500

main96133-41500

14 parts on this diagram · 3 diagrams in section
