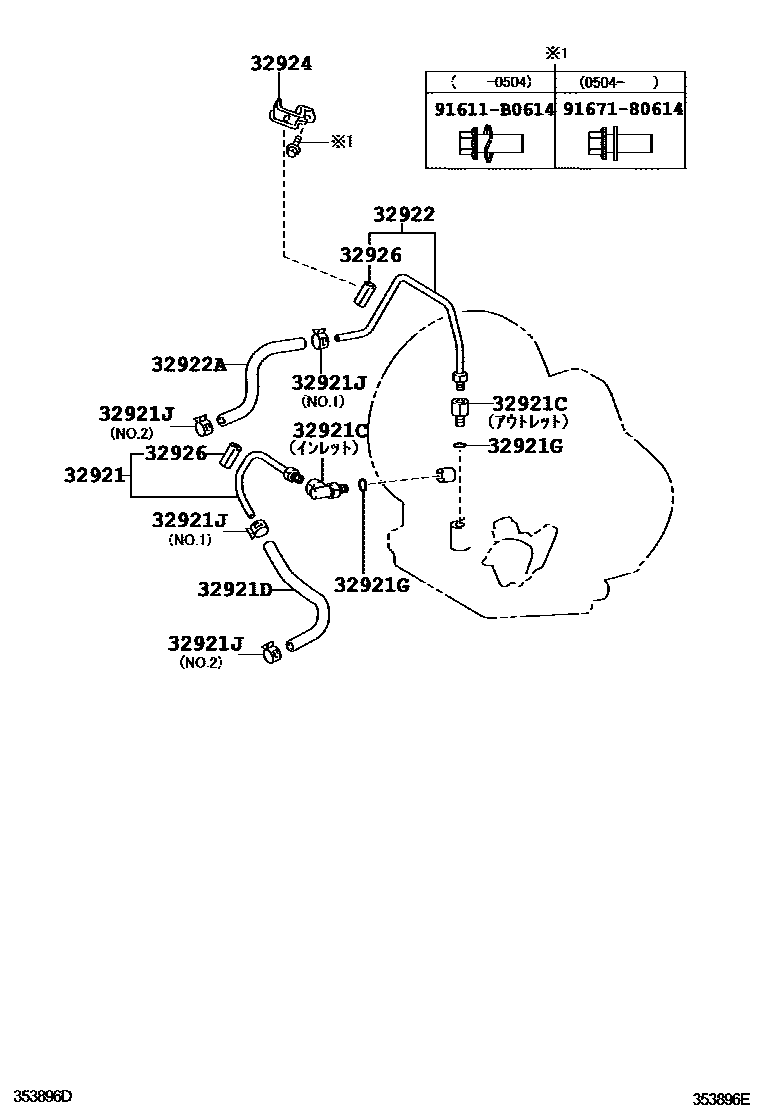

OIL COOLER & TUBE (ATM)

0001 1U340E,U340F 0002 1U441E

32921TUBE, OIL COOLER INLET, NO.1

main32921-52020iNCP50..4FC..(DX,GL)200206-200504

main32921-52040iNCP51,52,55,58,59..4FC..(DX,F,GL,TX,U,UL)200206-200504

main32921-52060iNCP51,52,55,58,59..4FC200504

main32921-52100iNCP50..4FC200504

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007×2iNCP50..4FC; NCP51,52,55,58,59..4FC200206

main90407-14003iNCP51,52,55,58,59..4FC200206

32921DHOSE(FOR OIL COOLER INLET)

main90445-15042iNCP50..4FC200504

main90445-15046iNCP51,52,55,58,59..4FC..(DX,F,GL,TX,U,UL)200206

main90445-15054iNCP50..4FC..(DX,GL)200206-200504

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iNCP51,52,55,58,59..4FC201307

main90301-10189×2iNCP51,52,55,58,59..4FC..(DX,F,GL,TX,U,UL)200206-201307

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×2iNCP5#..4FC200404

main96137-41501×2iNCP5#..4FC200610

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52020iNCP50..4FC..DXJ200206-200304

main32922-52040iNCP55..4FC..DXJ200206-200304

main32922-52060iNCP51,52,55,58,59..4FC200504

main32922-52090iNCP50..4FC200504

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15015iNCP50..4FC200504

main90445-15034iNCP50..4FC..DXJ200206-200304

main90445-15044iNCP51,52,55,58,59..4FC..(DX,F,GL,TX,U,UL)200206

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-20100iNCP55..4FC..DXJ200206-200304

main32924-52010iNCP51,52,55,58,59..4FC200504

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iNCP50,55..4FC..DXJ200206-200304

main32926-22010iNCP51,52,55,58,59..4FC200707

main32926-30011×2iNCP50..4FC200504

91611B0614

main91611-B0614

9167180614

main91671-80614

11 parts on this diagram · 2 diagrams in section
