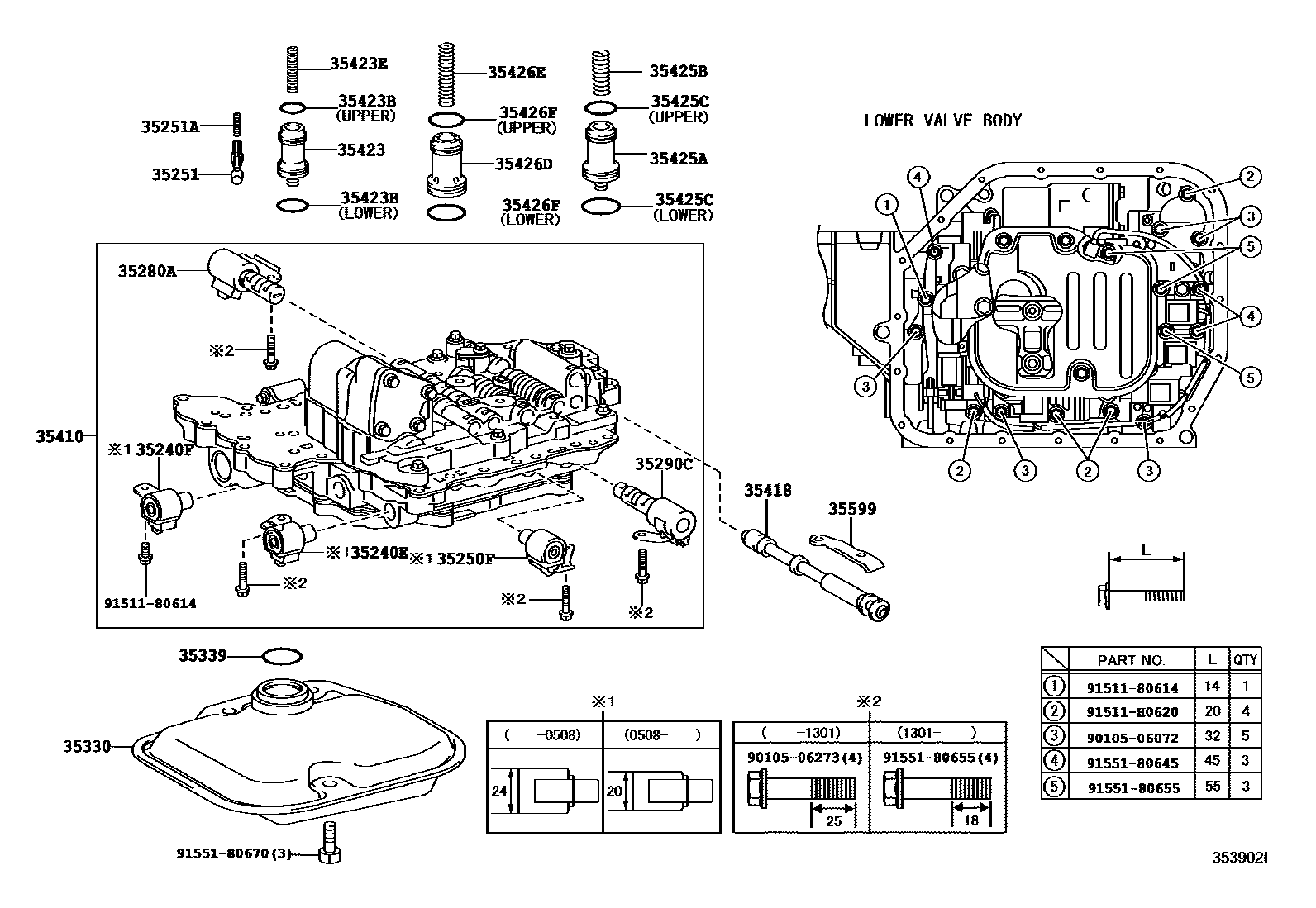

VALVE BODY & OIL STRAINER (ATM)

0001 1U340E,U340F 0002 1U441E 0003 1U340E,U340F 0004 1U441E

35240EVALVE, SOLENOID(S1)

main35240-52011iNCP51,52,55,58,59..4FC200206-200508

main35240-52050iNCP51,52,55,58,59..4FC200508-201201

main35240-52051iNCP51,52,55,58,59..4FC201201-201409

35240FVALVE, SOLENOID(S2)

main35230-52011iNCP51,52,55,58,59..4FC200206-200508

main35230-52020iNCP51,52,55,58,59..4FC200508-201201

main35230-52021iNCP51,52,55,58,59..4FC201201-201409

35250FVALVE, SOLENOID(ST)

main35250-52010iNCP51,52,55,58,59..4FC200206-200508

main35250-52050iNCP50..4FC200206-201409

main35250-52080iNCP51,52,55,58,59..4FC200508-201409

35251BODY, CHECK BALL

main35251-30020iNCP5#..4FC200206

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iNCP51,52,55,58,59..4FC200206

35280AVALVE, SOLENOID(SLU)

main35280-52010iNCP50..4FC200206-201409

main35280-52020iNCP51,52,55,58,59..4FC200206-201409

35290CVALVE, SOLENOID(SLT)

main35290-52010iNCP50..4FC200206-201409

main35290-52030iNCP51,52,55,58,59..4FC200206-201409

35330STRAINER ASSY, VALVE BODY OIL

main35330-0W020iNCP51,52,55,58,59..4FC200206-201203

main35330-0W021iNCP51,52,55,58,59..4FC201203

main35330-52010iNCP50..4FC200206

35339GASKET, OIL STRAINER

main35339-52010iNCP50..4FC200206

main90301-32010iNCP51,52,55,58,59..4FC200206-201306

main90301-32015iNCP51,52,55,58,59..4FC201307

35410BODY ASSY, TRANSMISSION VALVE

main35410-52060iNCP51,55,58,59..4FC200206-200211

main35410-52061iNCP51,55,58,59..4FC200211-200303

main35410-52062iNCP51,52,55,58,59..4FC200303-200508

main35410-52090iNCP50..4FC200206-201209

main35410-52190iNCP51,52,55,58,59..4FC200508-201301

main35410-52191iNCP51,52,55,58,59..4FC201301-201409

main35410-52270iNCP50..4FC201209-201409

35418VALVE, MANUAL

main35418-52020iNCP51,52,55,58,59..4FC200206

35423PISTON, B-2 ACCUMULATOR

main35403-52020iNCP51,52,55,58,59..4FC200206

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-20010iNCP51,52,55,58,59..4FC200206

main90301-29011iNCP51,52,55,58,59..4FC200206

35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

main90501-20158iNCP51,52,55,58,59..4FC200206

35425APISTON, C-2 ACCUMULATOR

main35405-52020iNCP51,52,55,58,59..4FC200206

main35425-52010iNCP50..4FC200206

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22042iNCP50..4FC200206

main90501-24036iNCP51,52,55,58,59..4FC200206

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-21011iNCP50..4FC200206

main90301-22010iNCP51,52,55,58,59..4FC200206

main90301-29012iNCP50..4FC200206

main90301-35004iNCP51,52,55,58,59..4FC200206

35426DPISTON, C-3 ACCUMULATOR

main35426-52020iNCP51,52,55,58,59..4FC200206

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-25057iNCP51,52,55,58,59..4FC200206

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-24016iNCP51,52,55,58,59..4FC200206

main90301-29011iNCP51,52,55,58,59..4FC200206

35599COVER, MANUAL DETENT SPRING

main35599-52010iNCP51,52,55,58,59..4FC200206

9010506072

main90105-06072

9010506273

main90105-06273

9151180614

main91511-80614

91511H0620

main91511-H0620

9155180645

main91551-80645

9155180655

main91551-80655

9155180670

main91551-80670

28 parts on this diagram · 4 diagrams in section
