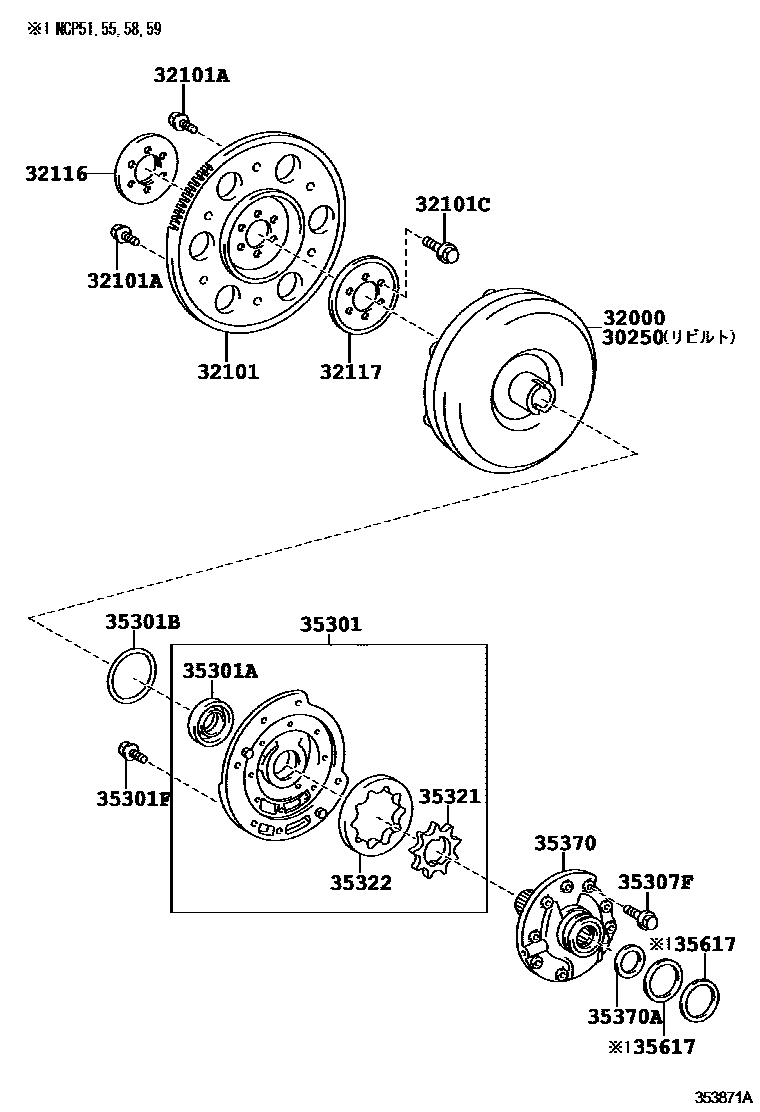

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-52020iNCP50..4FC200206-200602

main30250-52110iNCP50..4FC200602-201409

32000CONVERTER ASSY, TORQUE

main32000-52020iNCP50..4FC200206-200602

main32000-52040iNCP51,52,55,58,59..4FC200206-200612

main32000-52041iNCP51,52,55,58,59..4FC200612-201409

main32000-52110iNCP50..4FC200602-201409

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52020iNCP5#..4FC200206-200208

main32101-52021iNCP5#..4FC200208

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iNCP50,55..4FC..DXJ200206-200305

main90109-08113iNCP5#..4FC..(DX,F,GL,TX,U,UL)200206

main90119-08269iNCP50,55..4FC..DXJ200206-200305

main90119-08498iNCP5#..4FC..(DX,F,GL,TX,U,UL)200206

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNCP50,55..4FC..DXJ200206-200305

main90105-10048iNCP5#..4FC..(DX,F,GL,TX,U,UL)200206-201003

main90105-A0022iNCP5#..4FC..(DX,F,GL,TX,U,UL)200206-201003

32116SPACER, DRIVE PLATE, FRONT

main32116-52030iNCP5#..4FC200206

32117SPACER, DRIVE PLATE, REAR

main32117-52030iNCP5#..4FC200206

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52030iNCP50..4FC200206

main35035-52040iNCP51,52,55,58,59..4FC200206

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iNCP51,52,55,58,59..4FC201011

main90311-38064iNCP51,52,55,58,59..4FC200206-201011

main90311-38075iNCP50..4FC200206

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-52010iNCP51,52,55..4FC201401

main90301-99123iNCP50..4FC200206

main90301-99124iNCP51,52,55,58,59..4FC200206-201312

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301iNCP51,52,55,58,59..4FC200206

main90105-08376iNCP50..4FC200206

35307FBOLT (FOR STATOR SHAFT)

main90119-06559iNCP50..4FC200206

main90148-60027iNCP51,52,55,58,59..4FC200206

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52010iNCP50..4FC200206

main35321-52020iNCP50..4FC200206

main35321-52030iNCP50..4FC200206

main35321-52040iNCP50..4FC200206

main35321-52050iNCP50..4FC200206

main35321-52060iNCP51,52,55,58,59..4FC200206

main35321-52070iNCP51,52,55,58,59..4FC200206

main35321-52080iNCP51,52,55,58,59..4FC200206

main35321-52090iNCP51,52,55,58,59..4FC200206

main35321-52100iNCP51,52,55,58,59..4FC200206

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52010iNCP50..4FC200206

main35322-52020iNCP50..4FC200206

main35322-52030iNCP50..4FC200206

main35322-52040iNCP50..4FC200206

main35322-52050iNCP50..4FC200206

main35322-52060iNCP51,52,55,58,59..4FC200206

main35322-52070iNCP51,52,55,58,59..4FC200206

main35322-52080iNCP51,52,55,58,59..4FC200206

main35322-52090iNCP51,52,55,58,59..4FC200206

main35322-52100iNCP51,52,55,58,59..4FC200206

35370SHAFT ASSY, STATOR

main35370-52010iNCP50..4FC200206

main35370-52030iNCP51,52,55,58,59..4FC200206-200601

main35370-52070iNCP51,52,55,58,59..4FC200601

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNCP51,52,55,58,59..4FC200206-201409

main90374-32007iNCP50..4FC200206-201409

main90374-32008iNCP50..4FC200206-201409

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010iNCP51,52,55,58,59..4FC200206-200612

main35613-52020iNCP51,52,55,58,59..4FC200612

17 parts on this diagram · 1 diagram in section
