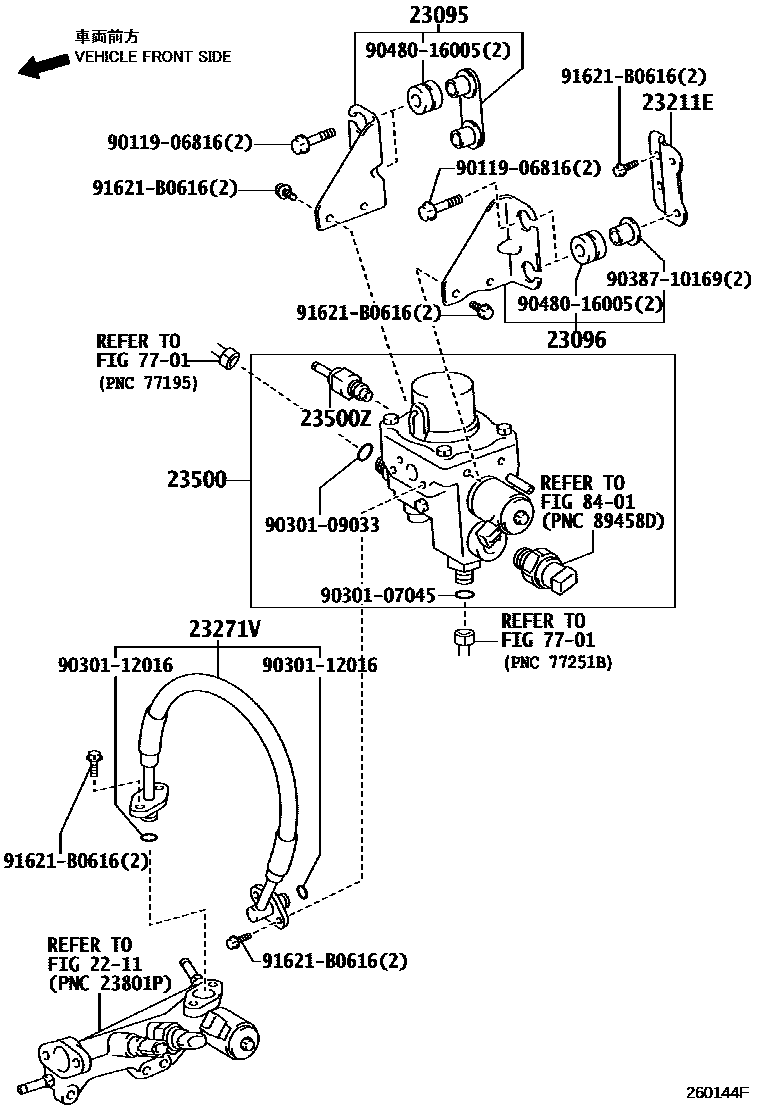

LPG OR CNG REGULATOR

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23095BRACKET SUB-ASSY, REGULATOR, NO.1

main23095-21010i1NZFNE..NCP52200304

23096BRACKET SUB-ASSY, REGULATOR, NO.2

main23096-21010i1NZFNE..NCP52200304

23211EBRACKET

main23211-21010i1NZFNE..NCP52200304

23271VHOSE, FUEL

main23271-21020i1NZFNE..NCP52200304-200609

main23271-21021i1NZFNE..NCP52200610-201409

23500REGULATOR ASSY, LPG(CNG)

main23500-21010i1NZFNE..NCP52200304-201409

23500ZTHERMOSTAT, MANIFOLD

main90916-03131i1NZFNE..NCP52200304

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906816

main90119-06816

9030107045

main90301-07045

9030109033

main90301-09033

9030112016

main90301-12016

9038710169

main90387-10169

9048016005

main90480-16005

91621B0616

main91621-B0616

16 parts on this diagram · 1 diagram in section
