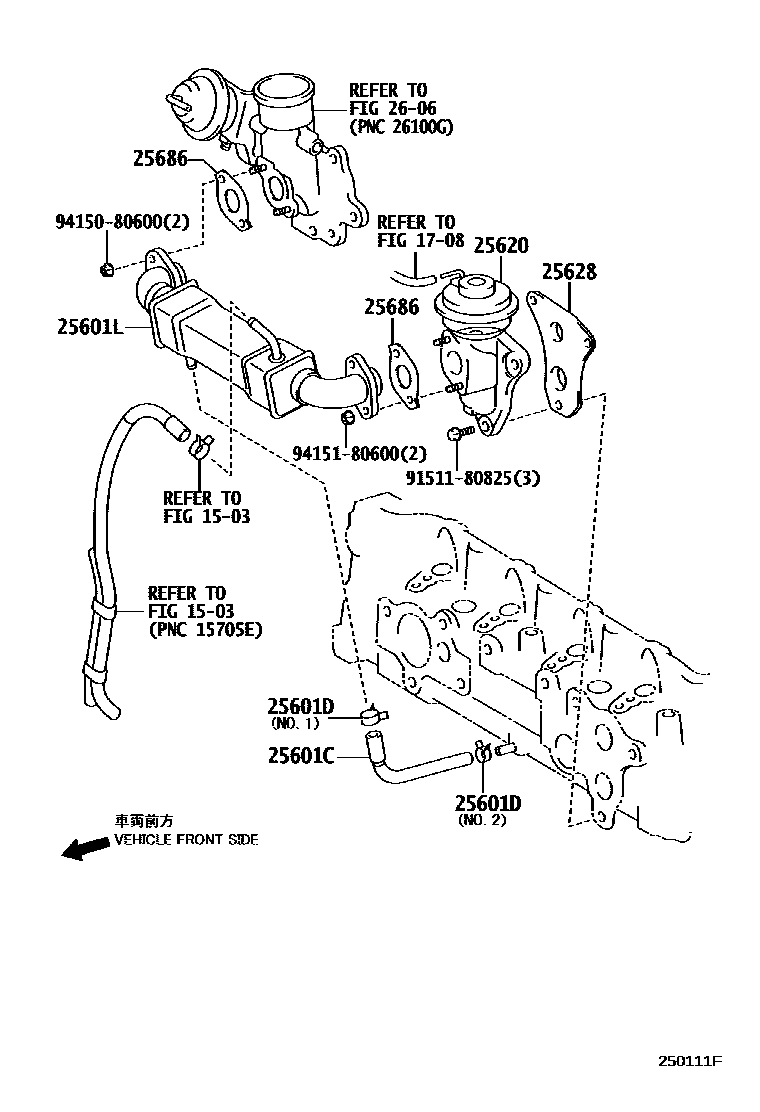

EXHAUST GAS RECIRCULATION SYSTEM

1503ENGINE OIL COOLER

→ Go to FIG 15-03

1708VACUUM PIPING

→ Go to FIG 17-08

25601CHOSE(FOR EGR PIPE, NO.1)

main16261-33010i1NDTV..NLP51200206-200708

25601DCLIP OR CLAMP(FOR EGR PIPE, NO.1)

main90467-13054i1NDTV..NLP51200206-200708

main90467-15022i1NDTV..NLP51200206-200708

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-33010i1NDTV..NLP51200206-200708

25620VALVE ASSY, EGR

main25620-33020i1NDTV..NLP51200206-200708

25628GASKET, EGR INLET

main25628-33010i1NDTV..NLP51200206-200708

25686GASKET, EGR COOLER, NO.2

main25628-30010×2i1NDTV..NLP51200206-200708

2606VENTURI

→ Go to FIG 26-06

9151180825

main91511-80825

9415080600

main94150-80600

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
