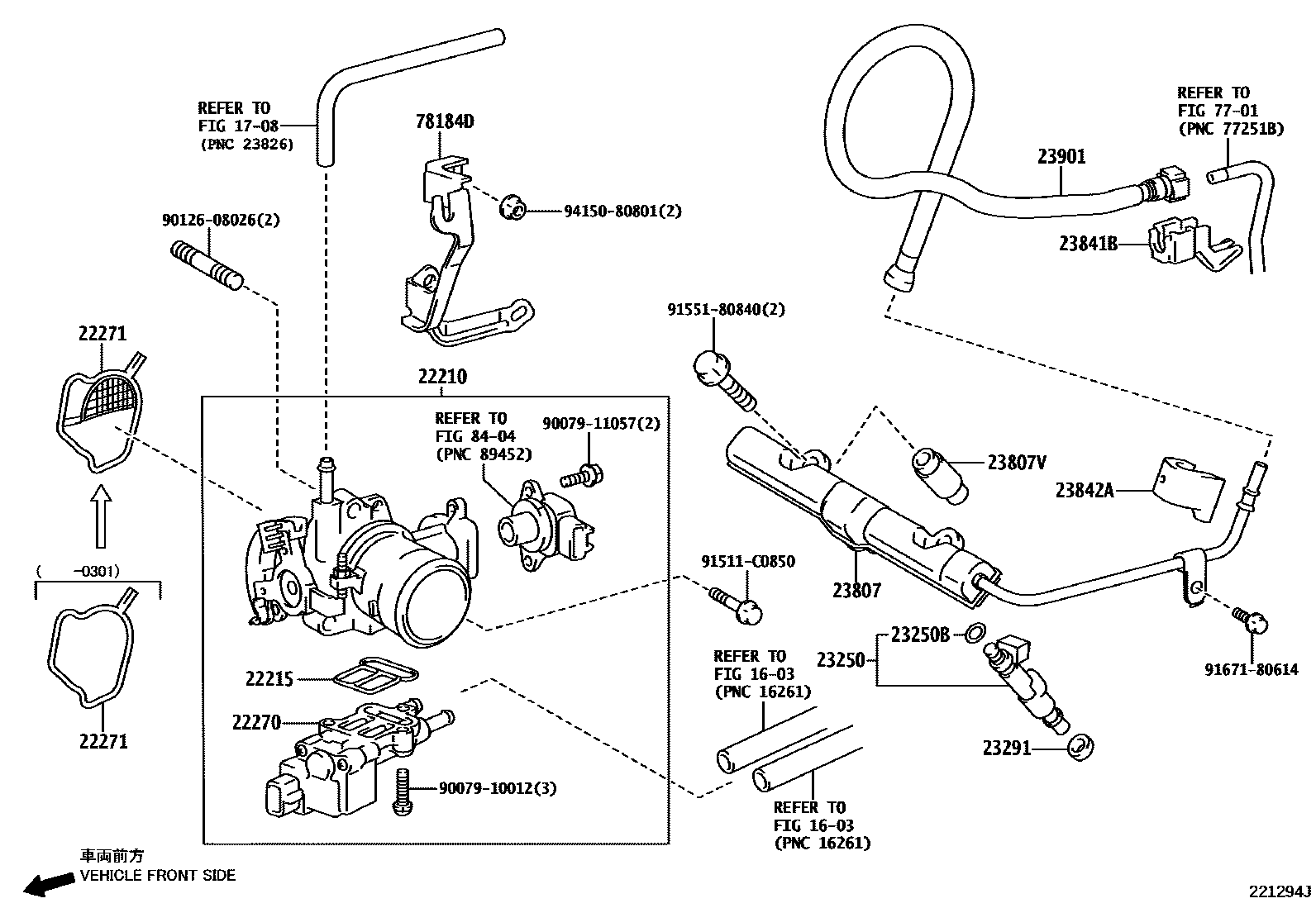

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1708VACUUM PIPING

→ Go to FIG 17-08

22210BODY ASSY, THROTTLE

main22210-21010i1NZ#,2NZFE..NCP5#200206

22215GASKET, THROTTLE BODY COVER

main22215-7A680i1NZ#,2NZFE..NCP5#200206

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-21010i1NZFE,2NZFE..NCP5#200206-200304

main22270-21011i1NZ#,2NZFE..NCP5#200304

22271GASKET, THROTTLE BODY

main22271-21020i1NZFE,2NZFE..NCP5#200206-200301

main22271-21050i1NZ#,2NZFE..NCP5#200301-201409

23250INJECTOR ASSY, FUEL

main23209-21020×4i1NZFE,2NZFE..NCP50,51,55,58,59200206-201409

main23209-29045×4i1NZFNE..NCP52200304-201409

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1NZFE,2NZFE..NCP50,51,55,58,59200206-200607

main90301-07037×4i1NZFE,2NZFE..NCP50,51,55,58,59200607-201409

23291INSULATOR, INJECTOR VIBRATION

main23291-21010×4i1NZFNE..NCP52200304-201409

main23291-23010×4i1NZFE,2NZFE..NCP50,51,55,58,59201107-201409

main23291-41010×4i1NZFE,2NZFE..NCP50,51,55,58,59200206-201106

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21010i1NZFE,2NZFE..NCP50,51,55,58,59200206-200612

main23807-21021i1NZFE,2NZFE..NCP50,51,55,58,59200612

main23807-21040i1NZFNE..NCP52200304

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE,2NZFE..NCP50,51,55,58,59200206

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE,2NZFE..NCP50,51,55,58,59200607-201409

main23841-28010i1NZFE,2NZFE..NCP50,51,55,58,59200206-200606

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

23901TUBE SUB-ASSY, FUEL

main23901-21060i1NZFE,2NZFE..NCP50,55..DXJ200206-200304

7701FUEL TANK & TUBE

→ Go to FIG 77-01

78184DBRACKET, ACCELERATOR CONTROL CABLE

main78184-52011iNCP5#200206

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007910012

main90079-10012

9007911057

main90079-11057

9012608026

main90126-08026

91511C0850

main91511-C0850

9155180840

main91551-80840

9167180614

main91671-80614

9415080801

main94150-80801

24 parts on this diagram · 3 diagrams in section
