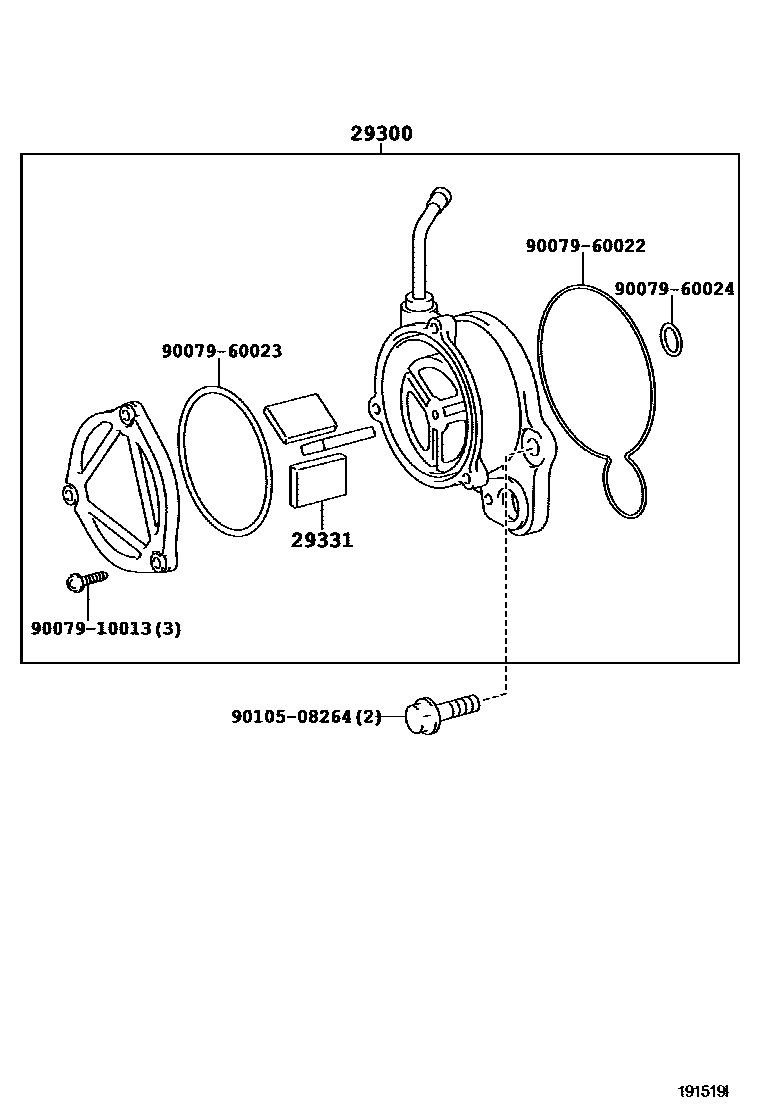

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-33012i1NDTV..NLP51..DXJ200206-200304

29331BLADE, VACUUM PUMP, A

main29331-33010×3i1NDTV..NLP51..DXJ200206-200304

9007910013

main90079-10013

9007960022

main90079-60022

9007960023

main90079-60023

9007960024

main90079-60024

9010508264

main90105-08264

7 parts on this diagram · 1 diagram in section
