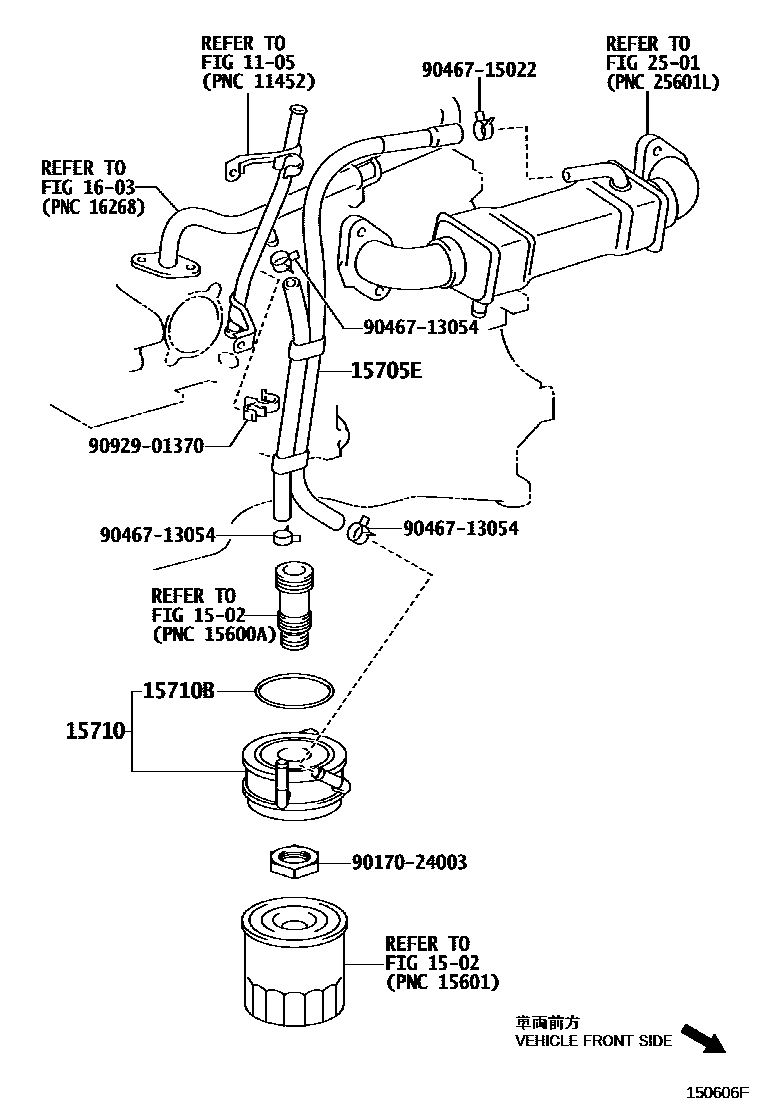

ENGINE OIL COOLER

1105CYLINDER BLOCK

→ Go to FIG 11-05

1502OIL FILTER

→ Go to FIG 15-02

15705EHOSE SUB-ASSY, OIL COOLER

main15705-33020i1NDTV..NLP51200206-200708

15710COOLER ASSY, OIL

main15710-33010i1NDTV..NLP51200206-200708

15710BRING, O(FOR OIL COOLER)

main90301-58002i1NDTV..NLP51200206-200708

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

9017024003

main90170-24003

9046713054

main90467-13054

9046715022

main90467-15022

9092901370

main90929-01370

11 parts on this diagram · 1 diagram in section
