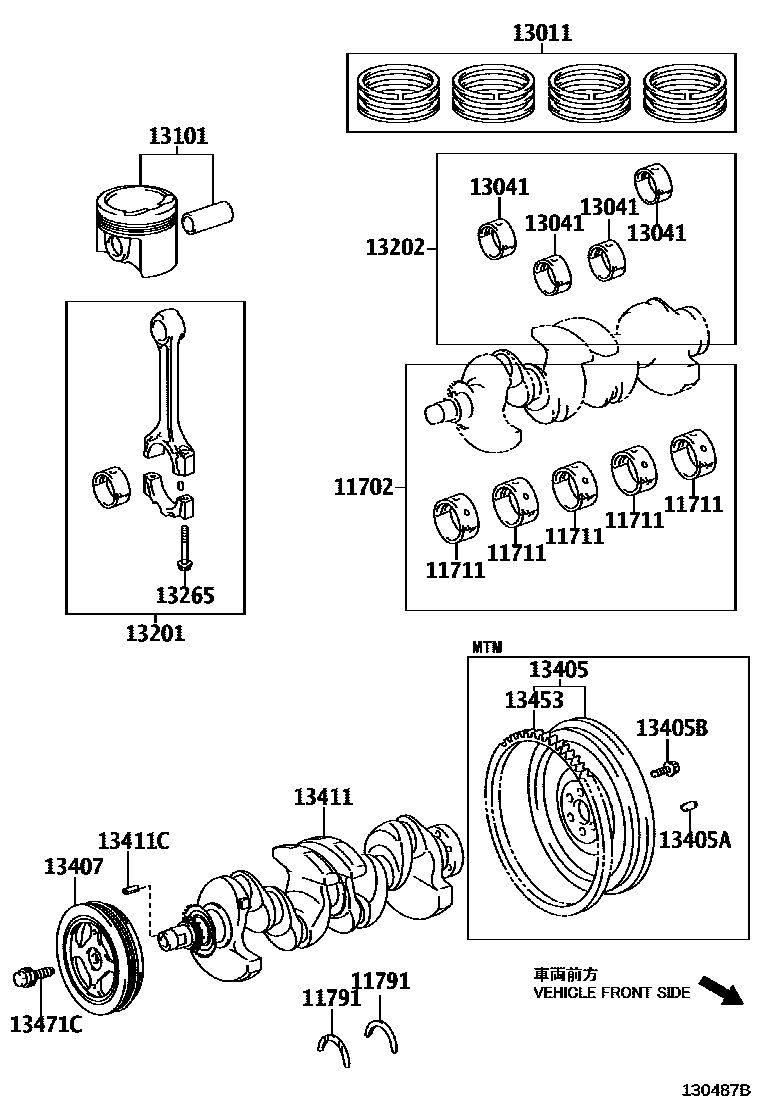

CRANKSHAFT & PISTON

0001 1 0002 1

11702BEARING SET, CRANKSHAFT

main11704-21010i1NZ#,2NZFE..NCP5#..DX,F,GL,TX,U,UL200206-200308

main11704-21020i1NDTV..NLP51200503-200708

main11704-21031i1NZ#,2NZFE..NCP5#200408-201308

main11704-21032i1NZ#,2NZFE..NCP5#201308-201401

main11704-21033i1NZ#,2NZFE..NCP5#201401

main11704-21040i1NZ#,2NZFE..NCP5#200308-200408

11711BEARING, CRANKSHAFT

main11701-21010-01×5i1NDTV..NLP51;1NZFE,2NZFE..NCP50,55..DXJ200206-200708

main11701-21010-02×5i1NZ#,2NZFE..NCP5#..DX,F,GL,TX,U,UL200206-200308

main11701-21010-03×5i1NDTV..NLP51;1NZFE,2NZFE..NCP50,55..DXJ200206-200708

main11701-21010-04×5i1NZ#,2NZFE..NCP5#..DX,F,GL,TX,U,UL200206-200308

main11701-21031-01×5i1NZ#,2NZFE..NCP5#200408-201308

main11701-21031-02×5i1NZ#,2NZFE..NCP5#200408-201308

main11701-21031-03×5i1NZ#,2NZFE..NCP5#200408-201308

main11701-21031-04×5i1NZ#,2NZFE..NCP5#200408-201308

main11701-21032-01×5i1NZ#,2NZFE..NCP5#201308-201312

main11701-21032-02×5i1NZ#,2NZFE..NCP5#201308-201312

main11701-21032-03×5i1NZ#,2NZFE..NCP5#201308-201312

main11701-21032-04×5i1NZ#,2NZFE..NCP5#201308-201312

main11701-21033-01×5i1NZ#,2NZFE..NCP5#201401

main11701-21033-02×5i1NZ#,2NZFE..NCP5#201401

main11701-21033-03×5i1NZ#,2NZFE..NCP5#201401

main11701-21033-04×5i1NZ#,2NZFE..NCP5#201401

main11701-21040-01×5i1NZ#,2NZFE..NCP5#200308-200408

main11701-21040-02×5i1NZ#,2NZFE..NCP5#200308-200408

main11701-21040-03×5i1NZ#,2NZFE..NCP5#200308-200408

main11701-21040-04×5i1NZ#,2NZFE..NCP5#200308-200408

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i1NZ#,2NZFE..NCP5#200206-200408

main11791-33030×2i1NDTV..NLP51200206-200708

main11791-37010×2i1NZ#,2NZFE..NCP5#200408

main11792-21010×2i1NZ#,2NZFE..NCP5#200206-200311

main11792-22020×2i1NZ#,2NZFE..NCP5#200311-201310

main11792-33030×2i1NDTV..NLP51200206-200708

main11792-37010×2i1NZ#,2NZFE..NCP5#201310

main11793-21010×2i1NZ#,2NZFE..NCP5#200206-200311

main11793-22020×2i1NZ#,2NZFE..NCP5#200311-201310

main11793-33030×2i1NDTV..NLP51200206-200708

main11793-37010×2i1NZ#,2NZFE..NCP5#201310

13011RING SET, PISTON

main13011-21041i1NZ#..NCP51,52,55,58,59200206-201210

main13011-21050i2NZFE..NCP50200206

main13011-21120i1NZ#..NCP51,52,55,58,59201210

main13011-33040i1NDTV..NLP51200206-200406

main13011-33041i1NDTV..NLP51200406-200708

13041BEARING, CONNECTING ROD

main13041-21022-01×4i1NZ#,2NZFE..NCP5#200408-201308

main13041-21022-02×4i1NZ#,2NZFE..NCP5#200408-201308

main13041-21022-03×4i1NZ#,2NZFE..NCP5#200408-201308

main13041-21030-01×4i1NZ#,2NZFE..NCP5#200206-200309

main13041-21030-02×4i1NZ#,2NZFE..NCP5#200206-200309

main13041-21030-03×4i1NZ#,2NZFE..NCP5#200206-200309

main13041-21031-01×4i1NZ#,2NZFE..NCP5#200309-200408

main13041-21031-02×4i1NZ#,2NZFE..NCP5#200309-200408

main13041-21031-03×4i1NZ#,2NZFE..NCP5#200309-200408

main13041-21033-01×4i1NZ#,2NZFE..NCP5#201308-201409

main13041-21033-02×4i1NZ#,2NZFE..NCP5#201308-201409

main13041-21033-03×4i1NZ#,2NZFE..NCP5#201308-201409

main13041-33040-01×4i1NDTV..NLP51200206-200310

main13041-33040-02×4i1NDTV..NLP51200206-200310

main13041-33040-03×4i1NDTV..NLP51200206-200310

main13041-33041-01×4i1NDTV..NLP51200310-200708

main13041-33041-02×4i1NDTV..NLP51200310-200708

main13041-33041-03×4i1NDTV..NLP51200310-200708

13101PISTON SUB-ASSY, W/PIN

main13101-0W010×4i1NDTV..NLP51200206-200403

main13101-0W011×4i1NDTV..NLP51200403-200708

main13101-21070×4i1NZFE..NCP51,55,58,59200206-201210

main13101-21080×4i2NZFE..NCP50200206

main13101-21100×4i1NZFNE..NCP52200304

main13101-21160×4i1NZFE..NCP51,55,58,59201210

13201ROD SUB-ASSY, CONNECTING

main13201-29095×4i1NZ#..NCP51,52,55,58,59200206-200311

main13201-29115×4i2NZFE..NCP50200206-200311

main13201-29425×4i1NZ#..NCP51,52,55,58,59200311-200408

main13201-29715×4i2NZFE..NCP50200311-201308

main13201-29716×4i2NZFE..NCP50201308-201401

main13201-29717×4i2NZFE..NCP50201401

main13201-29735×4i1NZ#..NCP51,52,55,58,59200408-201308

main13201-29736×4i1NZ#..NCP51,52,55,58,59201308-201401

main13201-29737×4i1NZ#..NCP51,52,55201401

main13201-39035×4i1NDTV..NLP51200206-200310

main13201-39055×4i1NDTV..NLP51200310-200708

13202BEARING SET, CONNECTING ROD

main13204-21022i1NZ#,2NZFE..NCP5#200408-201308

main13204-21030i1NZ#,2NZFE..NCP5#200206-200309

main13204-21031i1NZ#,2NZFE..NCP5#200311-200408

main13204-21033i1NZ#,2NZFE..NCP5#201308

main13204-33040i1NDTV..NLP51200206-200310

main13204-33041i1NDTV..NLP51200310-200708

13265BOLT, CONNECTING ROD

main13265-21020×8i1NZ#,1NDTV,2NZFE..NCP5#,NLP51200206

13405FLYWHEEL SUB-ASSY

main13405-21030i1NZFE,2NZFE..NCP50,51,55,58,59..5F200206

main13405-33020i1NDTV..NLP51200206-200708

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i1NZFE,1NDTV,2NZFE..NCP50,51,55,58,59,NLP51..5F200206

13405BBOLT, FLYWHEEL SETTING

main90913-01024×6i1NZFE,1NDTV,2NZFE..NCP50,51,55,58,59,NLP51..5F200206

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21020i1NZ#,2NZFE..NCP5#200206

main13407-33010i1NDTV..NLP51200206-200708

13411CRANKSHAFT

main13401-21020i1NZ#..NCP51,52,55,58,59200206

main13401-21030i2NZFE..NCP50200206

main13401-33010i1NDTV..NLP51200210-200310

main13401-33011i1NDTV..NLP51200310-200708

main13411-33903i1NDTV..NLP51200206-200210

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i1NZ#,2NZFE..NCP5#200206

main95161-30416i1NDTV..NLP51200206-200708

13453GEAR, FLYWHEEL RING

main13453-10010i1NZFE,2NZFE..NCP50,51,55,58,59..5F200206

main13453-55010i1NDTV..NLP51200206-200708

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i1NZ#,2NZFE..NCP5#200206

main90119-14106i1NDTV..NLP51200206-200708

17 parts on this diagram · 2 diagrams in section
