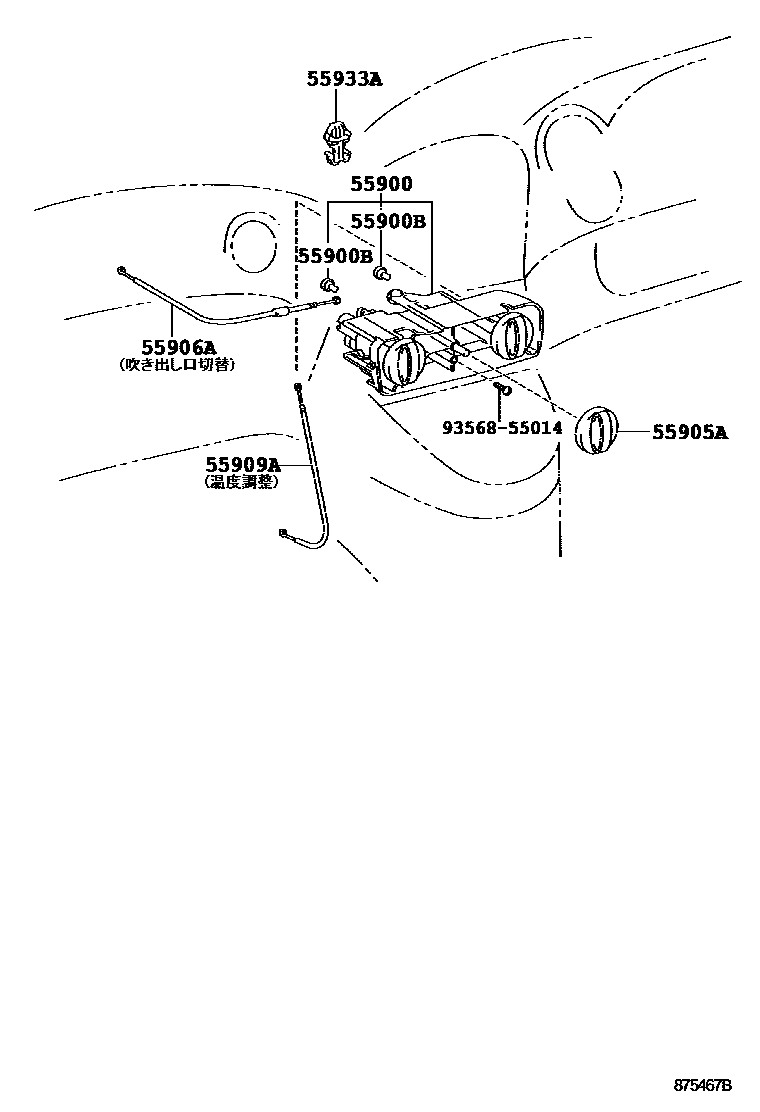

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� 0002 1������

55900CONTROL ASSY, AIR CONDITIONER

main55900-01140iZZE13#200205-200308

main55900-01141iZZE13#200308

55900BBULB, AIR CONDITIONER CONTROL

main84999-10090×2iZZE13#200205

55905AKNOB, HEATER CONTROL

main55905-01050iZZE13#200205

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-01050iZZE13#200205

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-02060iZZE13#200205

55933ACLAMP, HEATER CONTROL CABLE

main55933-02010iZZE13#200205

9356855014

main93568-55014

7 parts on this diagram · 2 diagrams in section
