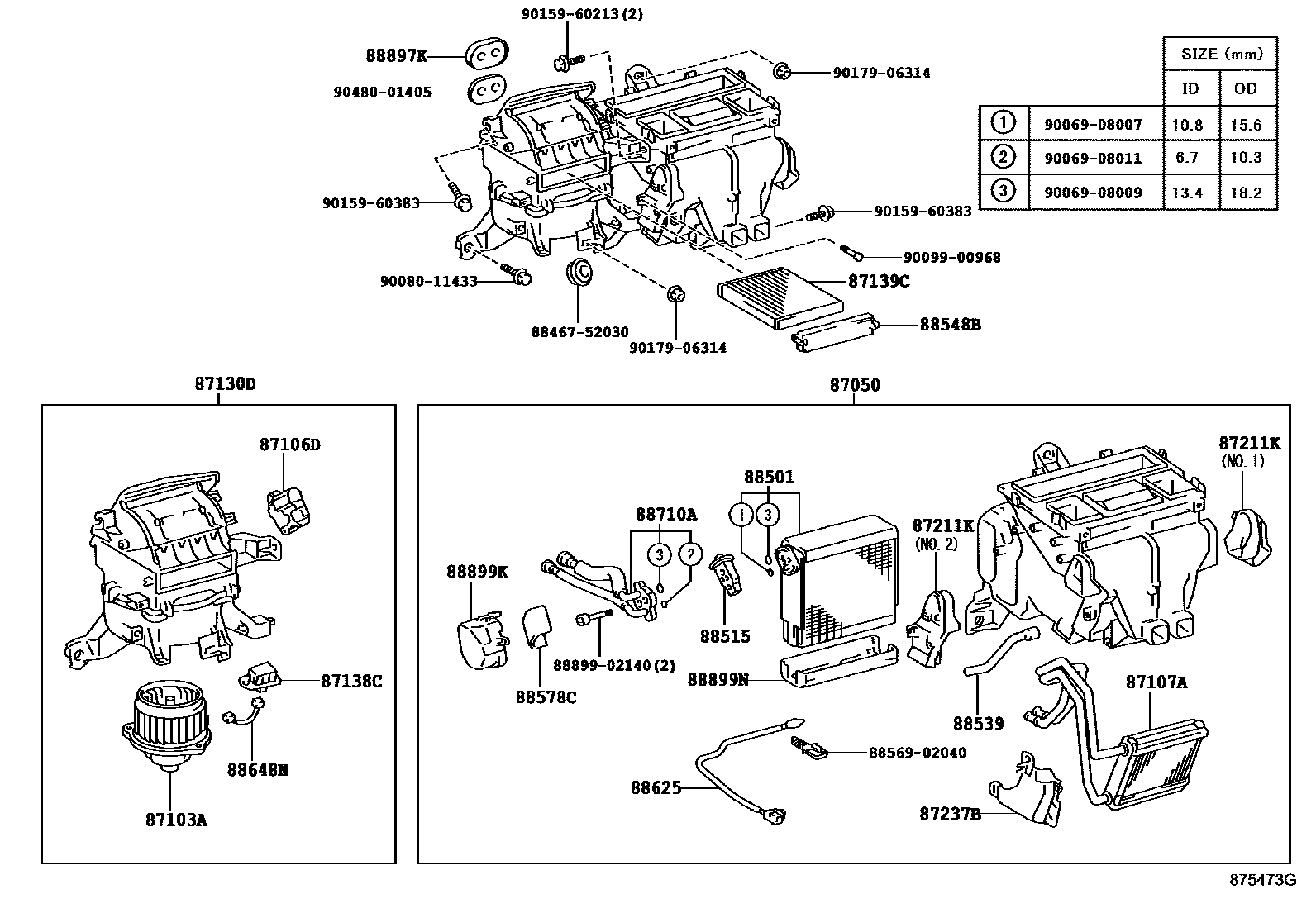

HEATING & AIR CONDITIONING - COOLER UNIT

87050RADIATOR ASSY, AIR CONDITIONER

main87050-01010iZZE13#200205

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-01050iZZE13#200205

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-01030iZZE13#200205

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-01050iZZE13#200205-200402

87130DBLOWER ASSY

main87130-01030iZZE13#200205

87138CRESISTOR, BLOWER

main87138-02030iZZE13#200205

87139CFILTER, CLEAN AIR

main88568-02020iZZE13#200205

87211KDUCT, AIR

main87211-01070iZZE13#200205

main87211-01080iZZE13#200205

87237BCOVER, HEATER PIPING

main87237-02010iZZE13#200205

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-01050iZZE13#200205

88515VALVE, COOLER EXPANSION

main88515-02100iZZE13#200304-200402

main88515-07020iZZE13#200205-200304

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-01040iZZE13#200205

88548BCASE, AIR FILTER

main88548-02030iZZE13#200205

88578CPACKING, COOLING UNIT, NO.2

main88578-12520iZZE13#200205

88625THERMISTOR, COOLER, NO.1

main88625-01040iZZE13#200205-200210

main88625-01041iZZE13#200210-200402

88648NWIRING, COOLER, NO.2

main88648-01040iZZE13#200205

88710ATUBE ASSY, AIR CONDITIONER

main88710-01040iZZE13#200205-200402

88897KGROMMET, (FOR COOLER PIPE)

main90480-01434iZZE13#200205

88899KPLATE, COVER

main88899-01110iZZE13#200205

88899NPLATE, COVER

main88899-01090iZZE13#200205

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8856902040CLAMP (FOR COOLER RELAY)

main88569-02040

8889902140COVER, EVAPORATOR

main88899-02140

9006908007

main90069-08007

9006908009

main90069-08009

9006908011

main90069-08011

9008011433

main90080-11433

9009900968

main90099-00968

9015960213

main90159-60213

9015960383

main90159-60383

9017906314

main90179-06314

9048001405

main90480-01405

32 parts on this diagram · 1 diagram in section
