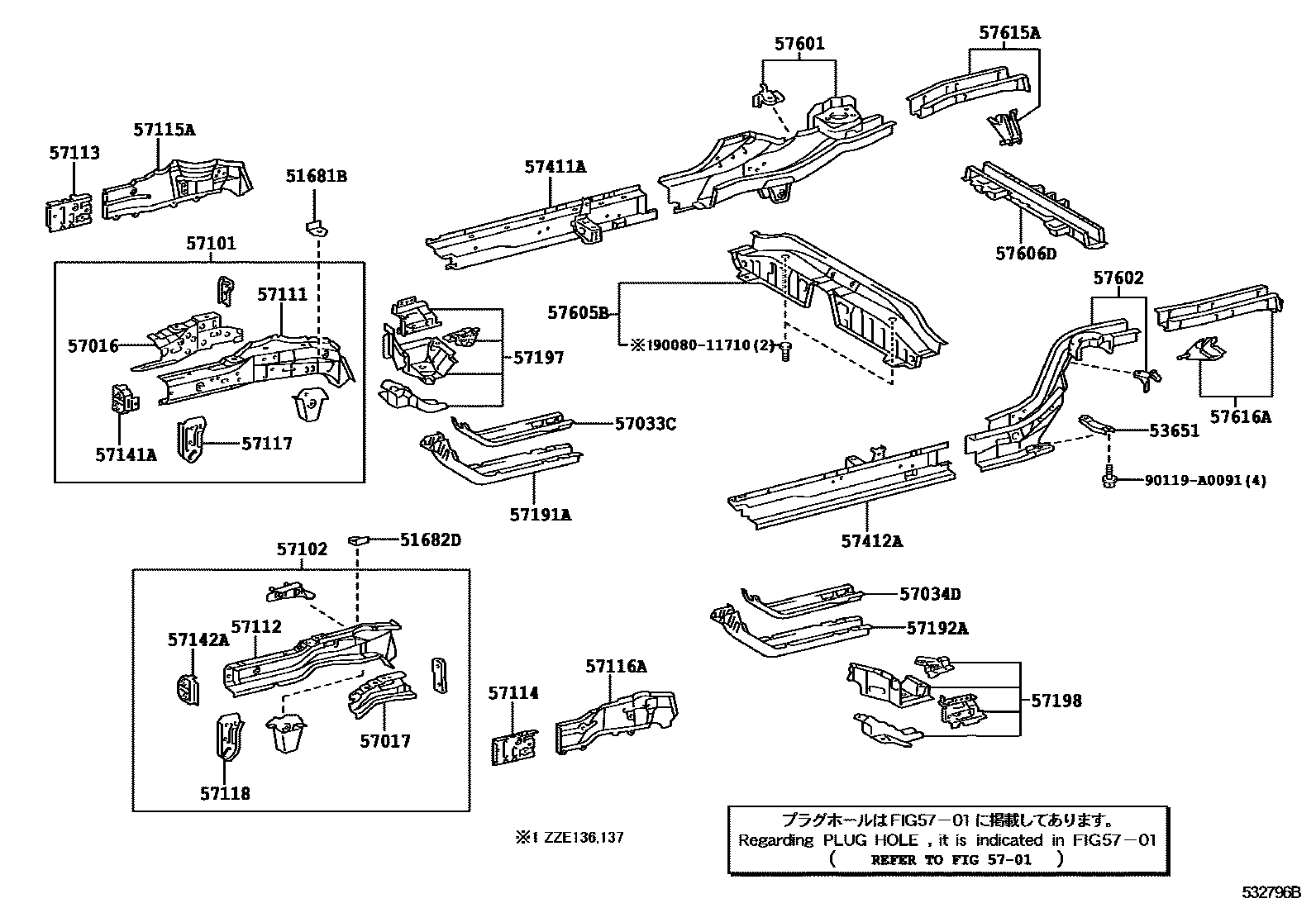

FLOOR SIDE MEMBER

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-02020iZZE13#200205

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-02020iZZE13#200205

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-32010×2iZZE136,137200205

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-02070iZZE13#200205

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-01010iZZE137..4FC200205

main57017-02060iZZE136,138;ZZE137..6F200205

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-02030iZZE13#200205

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02030iZZE13#200205

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-01900iZZE13#200205-200402

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-01901iZZE137..4FC200205

main57112-02900iZZE136,138;ZZE137..6F200205

57111MEMBER, FRONT SIDE, RH

main57111-02050iZZE13#200205

57112MEMBER, FRONT SIDE, LH

main57112-02080iZZE13#200205

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02040iZZE13#200205

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02040iZZE13#200205

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-02030iZZE13#200205

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-02030iZZE13#200205

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-02010iZZE13#200205

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-02010iZZE13#200205

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-01010iZZE13#200205

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-01010iZZE13#200205

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-02090iZZE13#200205

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-02090iZZE13#200205

57197BOX, TORQUE, FRONT RH

main57107-02900iZZE13#200205

57198BOX, TORQUE, FRONT LH

main57198-02900iZZE13#200205

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-02100iZZE13#200205-200402

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-02100iZZE13#200205-200402

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57611-01900iZZE138200205-200402

main57611-02902iZZE136,137200205-200402

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57404-02901iZZE136,137200205

main57612-02902iZZE138200205

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02902iZZE136,137200205-200402

main57605-12220iZZE138200205-200402

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-01040iZZE136,137200205

main57606-01050iZZE138200205

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-01901iZZE13#200205

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-01901iZZE13#200205

9008011710

main90080-11710

90119A0091

main90119-A0091

34 parts on this diagram · 1 diagram in section
