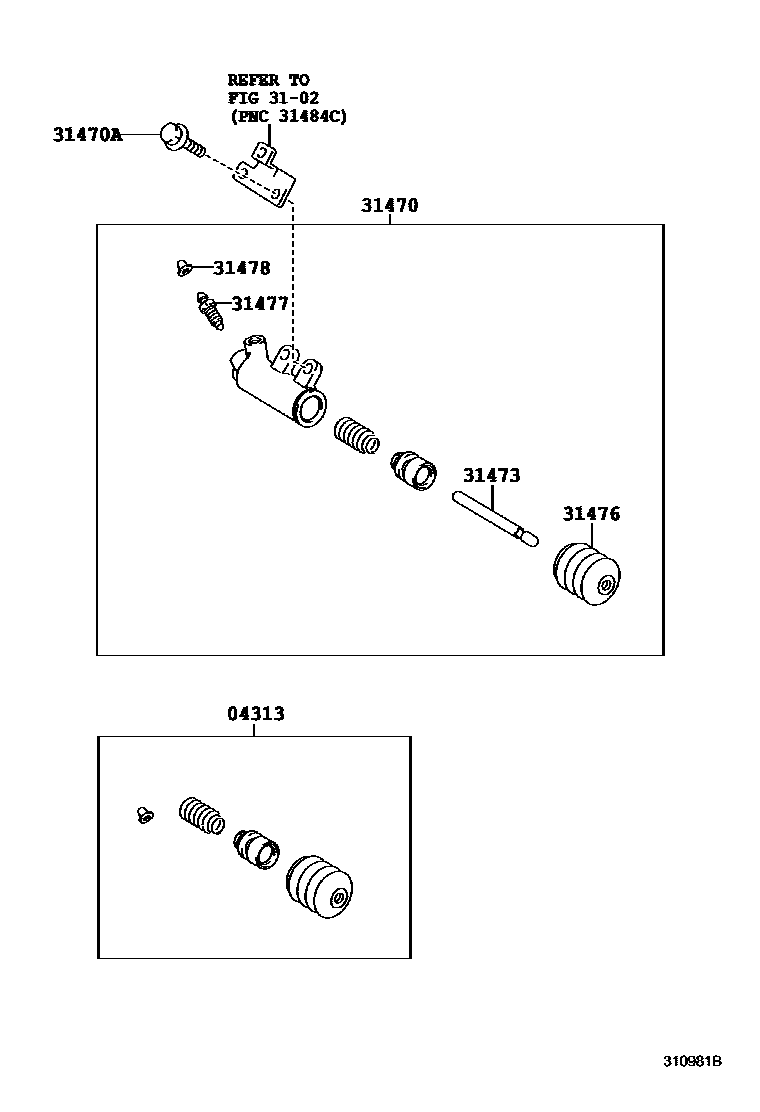

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE137..6F200205-200402

3102CLUTCH PEDAL & FLEXIBLE HOSE

→ Go to FIG 31-02

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12111iZZE137..6F200205-200402

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iZZE137..6F200205-200402

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE137..6F200205-200402

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iZZE137..6F200205-200402

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZZE137..6F200205-200402

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iZZE137..6F200205-200402

8 parts on this diagram · 1 diagram in section
