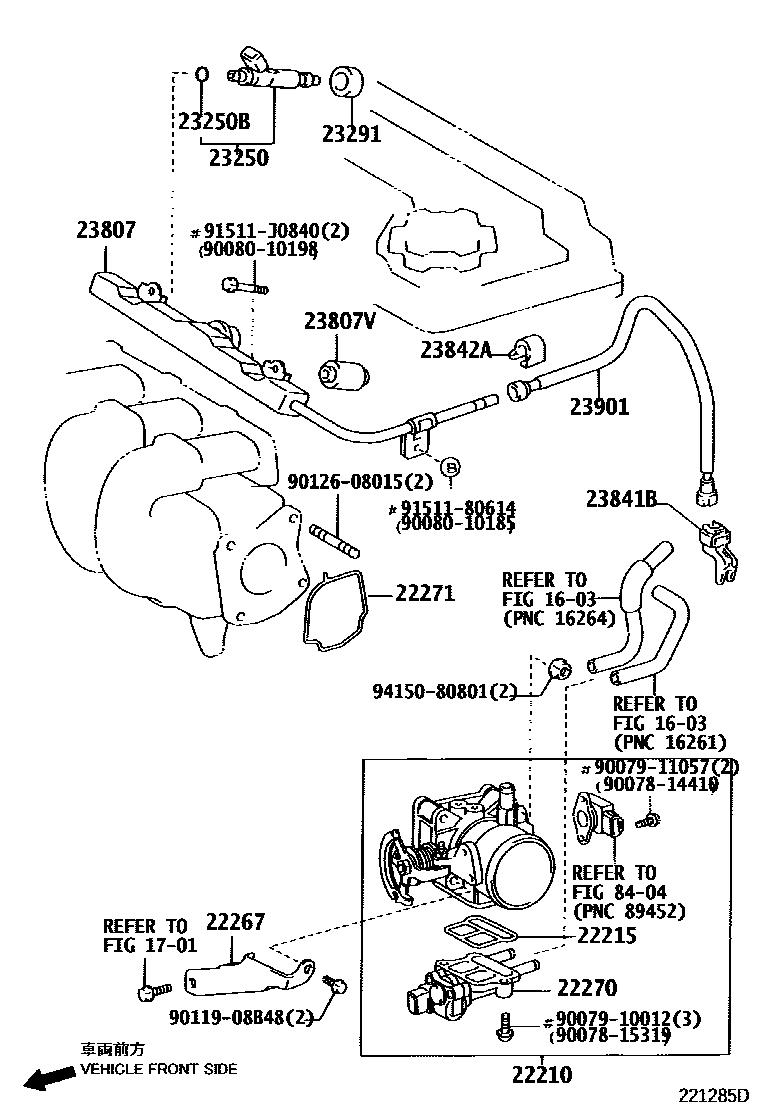

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22210-0D110i1ZZFE..ZZE136200205-200402

main22210-22160i2ZZGE..ZZE137200205-200402

main22210-22170i1ZZFE..ZZE136; 1ZZFE..ZZE138200205-200402

22215GASKET, THROTTLE BODY COVER

main22215-0D110i1ZZFE..ZZE136200205-200402

main22215-7A680i1ZZFE,2ZZGE..ZZE137,138; 1ZZFE..ZZE136200205-200402

22267BRACKET, THROTTLE BODY

main22267-22030i1ZZFE..ZZE136,138200205-200402

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-0D040i1ZZFE..ZZE136200205-200211

main22270-22020i2ZZGE..ZZE137200205-200303

main22270-22021i2ZZGE..ZZE137200303-200402

main22270-22060i1ZZFE..ZZE136,138200205-200303

main22270-22061i1ZZFE..ZZE136; 1ZZFE..ZZE138200303-200402

22271GASKET, THROTTLE BODY

main22271-0D030i1ZZFE..ZZE136200205-200402

main22271-22040i1ZZFE..ZZE136; 1ZZFE..ZZE138200205-200402

main22271-88600i2ZZGE..ZZE137200205-200402

23250INJECTOR ASSY, FUEL

main23209-0D040×4i1ZZFE..ZZE136200205-200402

main23209-22040×4i1ZZFE..ZZE136,138200205-200402

main23209-22060-01×4i2ZZGE..ZZE137200205-200402

MARK WHITE

main23209-22060-02×4i2ZZGE..ZZE137200205-200402

MARK BLUE

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1ZZFE,2ZZGE..ZZE13#200205-200402

23291INSULATOR, INJECTOR VIBRATION

main23291-22020×4i1ZZFE..ZZE136,138200205-200402

main23291-41010×4i2ZZGE..ZZE137200205-200402

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22030i1ZZFE..ZZE136,138200205-200402

main23807-88600i2ZZGE..ZZE137200205-200402

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08055×2i1ZZFE..ZZE136,138200205-200402

main90561-08059×2i2ZZGE..ZZE137200205-200402

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-28010i1ZZFE,2ZZGE..ZZE13#200205-200402

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1ZZFE..ZZE136,138200205-200402

23901TUBE SUB-ASSY, FUEL

main23271-88601i2ZZGE..ZZE137200205-200402

main23901-0D010i1ZZFE..ZZE136,138200205-200402

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007814410

main90078-14410

9007815319

main90078-15319

9007910012

main90079-10012

9007911057

main90079-11057

9008010185

main90080-10185

9008010198

main90080-10198

9011908B48

main90119-08B48

9012608015

main90126-08015

9151180614

main91511-80614

91511J0840

main91511-J0840

9415080801

main94150-80801

27 parts on this diagram · 3 diagrams in section
