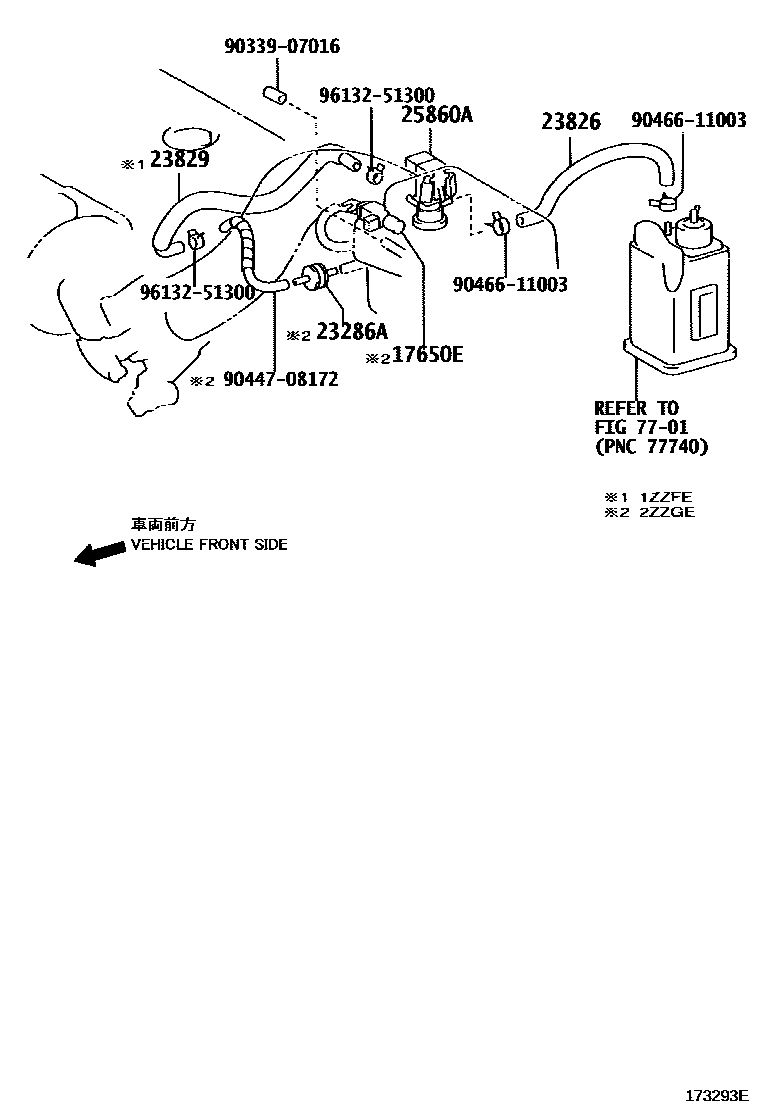

VACUUM PIPING

17650EVALVE, VACUUM SWITCHING

main90910-12089i2ZZGE..ZZE137200205-200402

23286AVALVE, CHECK, NO.2

main90917-10065i2ZZGE..ZZE137200205-200402

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-21030i1ZZFE,2ZZGE..ZZE13#200205-200402

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-22080i1ZZFE..ZZE136,138200205-200402

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12257i1ZZFE,2ZZGE..ZZE13#200205-200402

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9033907016

main90339-07016

9044708172

main90447-08172

9046611003

main90466-11003

9613251300

main96132-51300

10 parts on this diagram · 1 diagram in section
