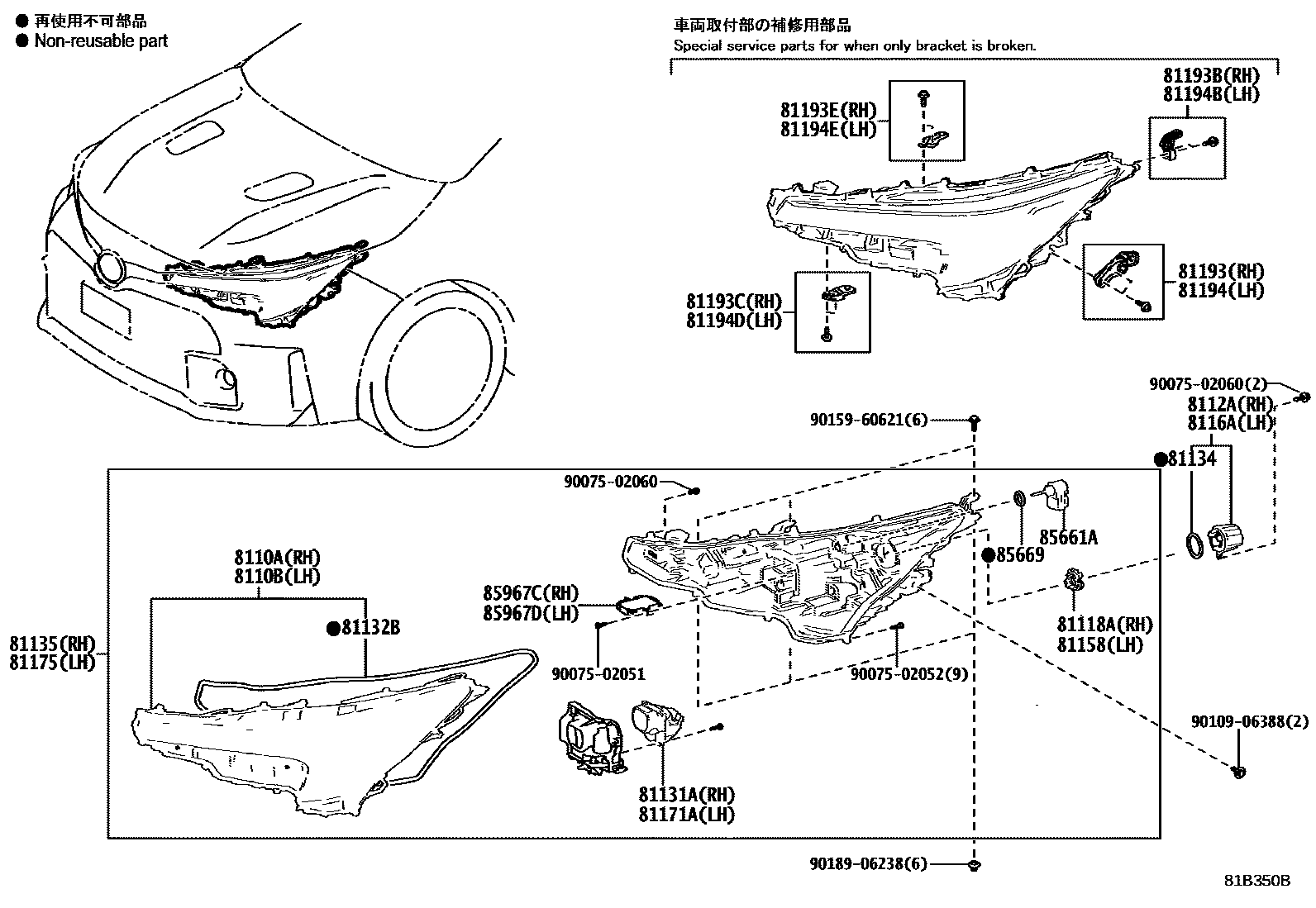

HEADLAMP
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81118ABRACKET, HEADLAMP, RH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81131AUNIT, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81158BRACKET, HEADLAMP, LH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81171AUNIT, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
85661AMOTOR, HEADLAMP LEVELING
85669PACKING, HEADLAMP LEVELING MOTOR BASE
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502060
main90075-02060
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
30 parts on this diagram · 1 diagram in section
