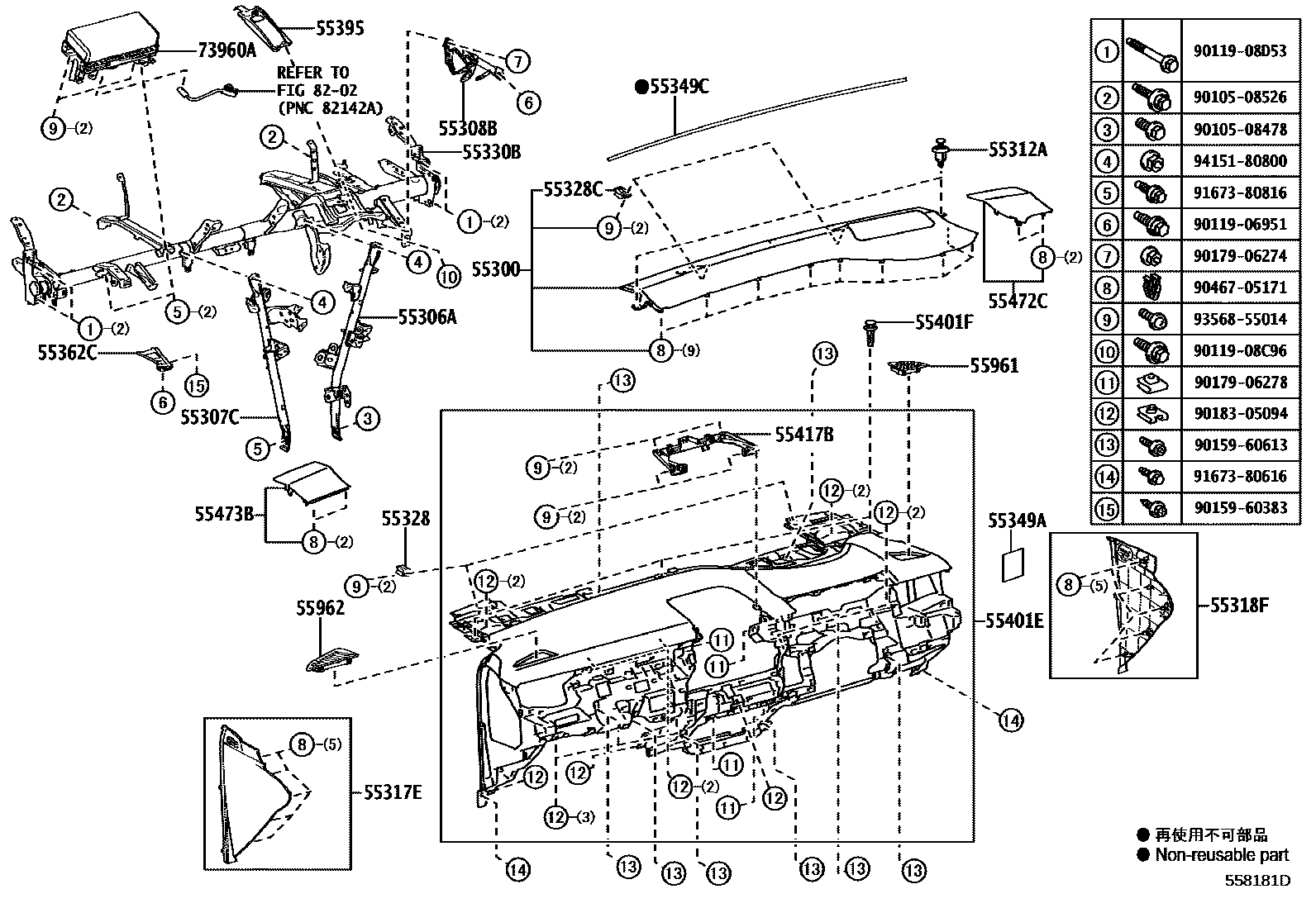

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-12070-C0supersedes 55300-12060-C0iGZEA14..02S202212-202304

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12530iGZEA14..02S202212-202304

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12460iGZEA14..02S202212-202304

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-12340iGZEA14..02S202212-202304

55312ACLIP, INSTRUMENT PANEL

main90467-07217×2iGZEA14..02S202212-202304

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-12230-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-12170-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iGZEA14..02S202212-202304

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-12440×2iGZEA14..02S202212-202304

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12890supersedes 55330-12880iGZEA14..02S202212-202304

55349ACUSHION, INSTRUMENT PANEL

main55349-12180iGZEA14..02S202212-202304

55349CCUSHION, INSTRUMENT PANEL

main55349-12190iGZEA14..02S202212-202304

55362CBRACKET, PARKING BRAKE MOUNTING

main55362-12100iGZEA14..02S202212-202304

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12040iGZEA14..02S202212-202304

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-12907-22supersedes 55400-12905-22iGZEA14..05S202212-202409

main55400-12910-C0supersedes 55400-12904-C4iGZEA14..02S202212-202304

55401FCLIP(FOR SAFETY PAD)

main52161-16010×3iGZEA14..02S202212-202304

55417BRETAINER, RADIO TUNER FINISH

main55417-12060iGZEA14..02S202212-202304

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-12150-C0supersedes 55472-12140-C0iGZEA14..02S202212-202304

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-12130-C0supersedes 55473-12140-C0iGZEA14..05S202212-202409

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12260-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12230-C0iGZEA14..02S202212-202304

BLACK,TRIM3#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12320iGZEA14..02S202212-202304

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D53

main90119-08D53

9015960383

main90159-60383

9015960613

main90159-60613

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

38 parts on this diagram · 4 diagrams in section
