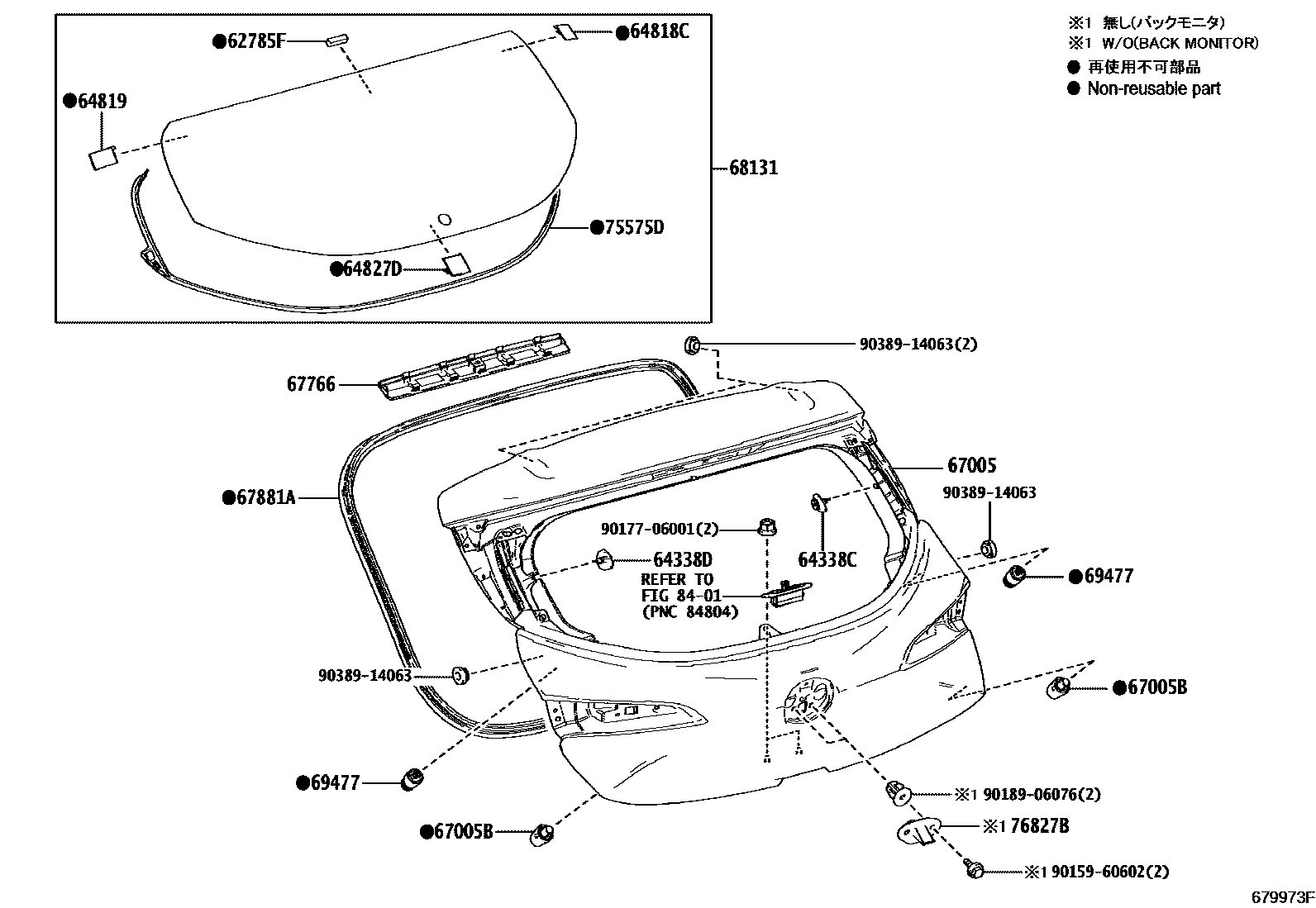

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

62785FSPACER, BACK DOOR GLASS

main62785-60030iMZEA12202210-202505

64338CHOOK, PACKAGE TRAY TRIM GARNISH, RH

main64338-12060-C0iNRE21#,ZWE21#201806-202208

BLACK,TRIM2#,3#,4#

64338DHOOK, PACKAGE TRAY TRIM GARNISH, LH

main64338-12070-C0iZWE211201806-202005

BLACK,TRIM2#,3#,4#

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-12080iZWE211201806-202005

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-12060iZWE211201806-202005

64827DCLIP, BACK WINDOW GLASS

main64827-12020iZWE211201806-202005

67005PANEL SUB-ASSY, BACK DOOR

main67005-12F60iMZEA12202210-202505

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09147×2iZWE211201806-202005

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-12020-C0iZWE219202210

BLACK,TRIM2#,3#,4#

67881AWEATHERSTRIP, BACK DOOR

main67881-12320iZWE211201806-202005

68131GLASS, BACK DOOR

main68105-12470supersedes 68105-12530iNRE21#,ZWE211201806-201909

main68105-12530iZWE211201909-202005

69477CUSHION, BACK DOOR UPPER STOPPER

main69477-12020×2iZWE211201806-202005

75575DMOULDING, BACK WINDOW, LOWER

main75575-12480iZWE211201806-202005

76827BRETAINER, BACK DOOR GARNISH, NO.2

main76827-12060iNRE21#,ZWE211201806-201904

main76827-12061iNRE21#,ZWE211201905-201909

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015960602

main90159-60602

9017706001

main90177-06001

9018906076

main90189-06076

9038914063

main90389-14063

19 parts on this diagram · 2 diagrams in section
