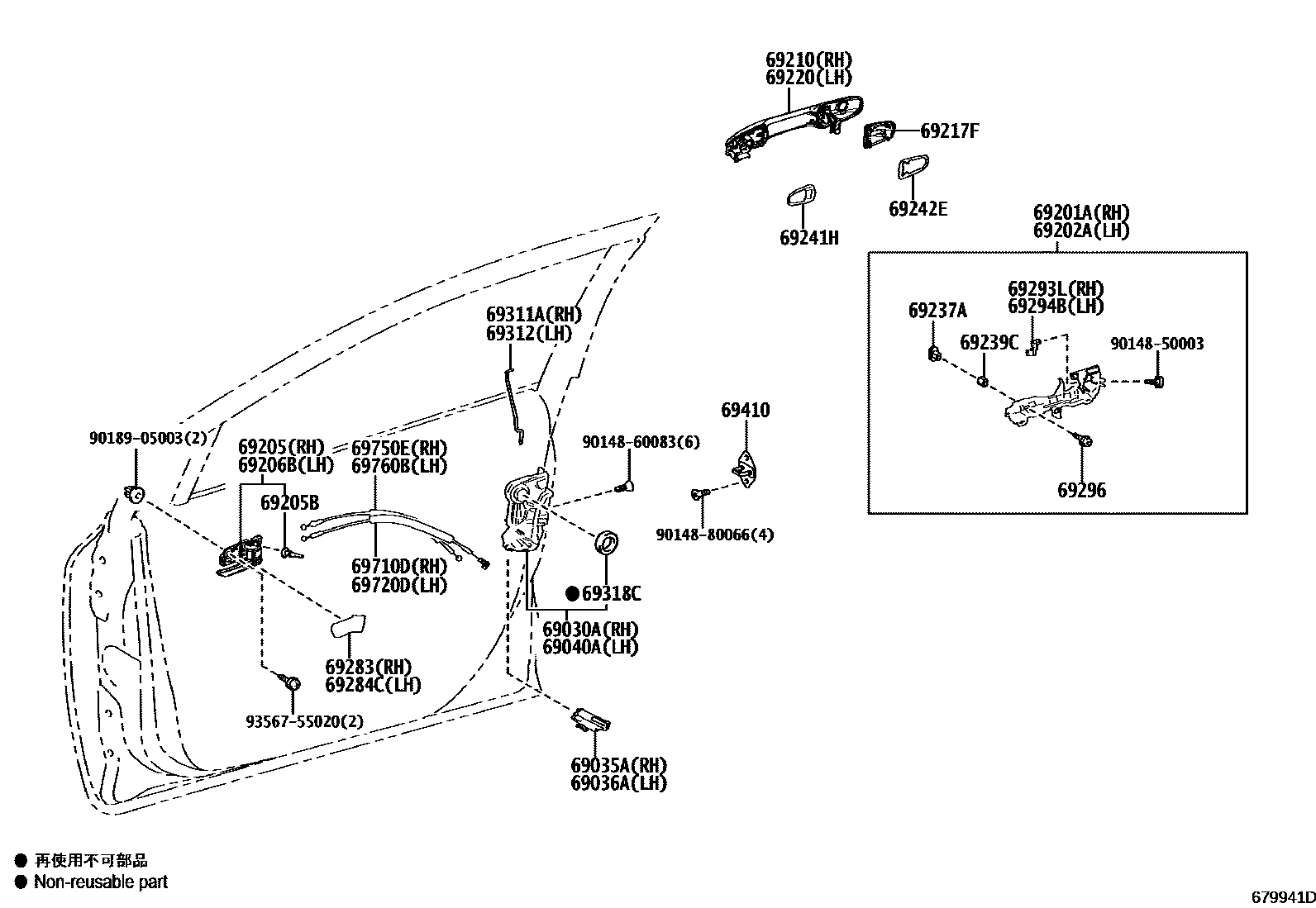

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-12580iMZEA12202210-202505

main69030-30A70iZWE211201806-202005

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iMZEA12202210-202505

main69035-30010iZWE211201806-202005

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iZWE219202210

main69036-30010iZWE211201806-202005

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12600iMZEA12202210-202505

main69040-30A80iNRE21#,ZWE213201806

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iZWE211201806-202005

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iNRE21#,ZWE213201806

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12250-C0iZWE211201806-202005

BLACK,TRIM2#,3#,4#

main69205-15010-C1iMZEA12202210-202505

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iZWE211201806-202005

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12250-C0iNRE21#,ZWE213201806

BLACK,TRIM2#,3#,4#

main69206-15010-C1iZWE219202210

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-47041-A0iNRE21#,ZWE213201806

SUPER WHITE 2,040

main69210-47041-A1iNRE21#201806-202006

WHITE PEARL CS.,070 ,2QJ

main69210-47041-A2iNRE21#,ZWE213202006

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-47041-B0iNRE21#,ZWE213201806

SILVER ME.,1F7 ,2UF

main69210-47041-B1iNRE21#,ZWE213202006

GRAY ME.,1G3 ,2QZ

main69210-47041-C0iNRE21#,ZWE213201806

ATTITUDE BLACK MC.,218

main69210-47041-C1iZWE211201806-202005

BLACKISH AGEHA GF.,221

main69210-47041-D3iNRE21#201806-202006

SCARLET ME.,2UG ,3U4

main69210-47041-D4iZWE211201909-202005

EMOTIONAL RED 2,2SC ,3U5

main69210-47041-D6iNRE21#,ZWE213202107

EMOTIONAL RED 3,2XM ,3U9

main69210-47041-G3iNRE21#201806-202006

OXIDE BRONZE ME.,2UD ,6X1

main69210-47041-J5iNRE21#,ZWE213201806

CYAN METALLIC,2UH ,8W9

main69210-47041-P2iZWE213202111

PRECIOUS METAL,1L5 ,2YJ

main69210-K0010-A0iMZEA12202210-202505

SUPER WHITE 2,040

main69210-K0010-A3iMZEA12202210-202505

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-K0010-B0iZWE219202210

SILVER ME.,1F7 ,2UF

main69210-K0010-C3iZWE219202210

ATTITUDE BLACK MC.,218

main69210-K0010-D7iMZEA12202210-202505

EMOTIONAL RED 3,2XM ,3U9

main69210-K0010-E6iMZEA12202210-202505

ORANGE M.M.,4Y8

main69210-K0010-J0iZWE219202210

DK.BLUE M.M.,2RC ,8W7

main69210-K0010-P3iZWE219202210

GRAY ME.,1G3 ,2QZ

main69210-V2100-A0iMZEA12,ZWE219202404-202505

main69210-V2100-B1iMZEA12,ZWE219202404-202505

main69210-V2100-B5iMZEA12,ZWE219202404-202505

main69210-V2100-C3iMZEA12,ZWE219202404-202505

main69210-V2100-D4iMZEA12,ZWE219202404-202505

main69210-V2100-E6iMZEA12,ZWE219202404-202505

main69210-V2100-J2iMZEA12,ZWE219202404-202505

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-47020iZWE219202210

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-47051-A0iNRE21#,ZWE213201806

SUPER WHITE 2,040

main69210-47051-A1iNRE21#201806-202006

WHITE PEARL CS.,070 ,2QJ

main69210-47051-A2iNRE21#,ZWE213202006

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-47051-B0iZWE211201806-202005

SILVER ME.,1F7 ,2UF

main69210-47051-B1iNRE21#,ZWE213202006

GRAY ME.,1G3 ,2QZ

main69210-47051-C0iZWE211201806-202005

ATTITUDE BLACK MC.,218

main69210-47051-C1iNRE21#,ZWE213201806

BLACKISH AGEHA GF.,221

main69210-47051-D3iNRE21#201806-202006

SCARLET ME.,2UG ,3U4

main69210-47051-D4iNRE21#,ZWE213201909-202107

EMOTIONAL RED 2,2SC ,3U5

main69210-47051-D6iNRE21#,ZWE213202107

EMOTIONAL RED 3,2XM ,3U9

main69210-47051-G3iNRE21#201806-202006

OXIDE BRONZE ME.,2UD ,6X1

main69210-47051-J5iNRE21#,ZWE213201806

CYAN METALLIC,2UH ,8W9

main69210-47051-P2iZWE213202111

PRECIOUS METAL,1L5 ,2YJ

main69210-K0020-A0iZWE219202210

SUPER WHITE 2,040

main69210-K0020-A3iZWE219202210

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-K0020-B0iMZEA12202210-202505

SILVER ME.,1F7 ,2UF

main69210-K0020-C3iMZEA12202210-202505

ATTITUDE BLACK MC.,218

main69210-K0020-D7iMZEA12202210-202505

EMOTIONAL RED 3,2XM ,3U9

main69210-K0020-E6iZWE219202210

ORANGE M.M.,4Y8

main69210-K0020-J0iZWE219202210

DK.BLUE M.M.,2RC ,8W7

main69210-K0020-P3iZWE219202210

GRAY ME.,1G3 ,2QZ

main69210-V2110-A0iMZEA12,ZWE219202404-202505

main69210-V2110-B1iMZEA12,ZWE219202404-202505

main69210-V2110-B5iMZEA12,ZWE219202404-202505

main69210-V2110-C3iMZEA12,ZWE219202404-202505

main69210-V2110-D4iMZEA12,ZWE219202404-202505

main69210-V2110-E6iMZEA12,ZWE219202404-202505

main69210-V2110-J2iMZEA12,ZWE219202404-202505

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iMZEA12202210-202505

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2iZWE211201806-202005

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020×2iZWE211201806-202005

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030×2iZWE211201806-202005

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main74037-12020-C0iZWE219202210

BLACK,TRIM2#,3#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main74038-12020-C0iZWE211201806-202005

BLACK,TRIM2#,3#,4#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iZWE211201806-202005

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iZWE211201806-202005

69296SCREW, DOOR INSIDE HANDLE

main69296-30010×2iZWE211201806-202005

main90148-50006×2iNRE21#,ZWE213202109

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-12220iZWE211201806-202005

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-12220iZWE211201806-202005

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iZWE211201806-202005

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iZWE211201806-202005

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-12190iZWE211201806-202005

main69710-12191iMZEA12202210-202505

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-12190iZWE211201806-202005

main69710-12191iMZEA12202210-202505

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-12220iZWE211201806-202005

main69750-12221iMZEA12202210-202505

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-12220iZWE211201806-202005

main69750-12221iMZEA12202210-202505

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

34 parts on this diagram · 1 diagram in section
