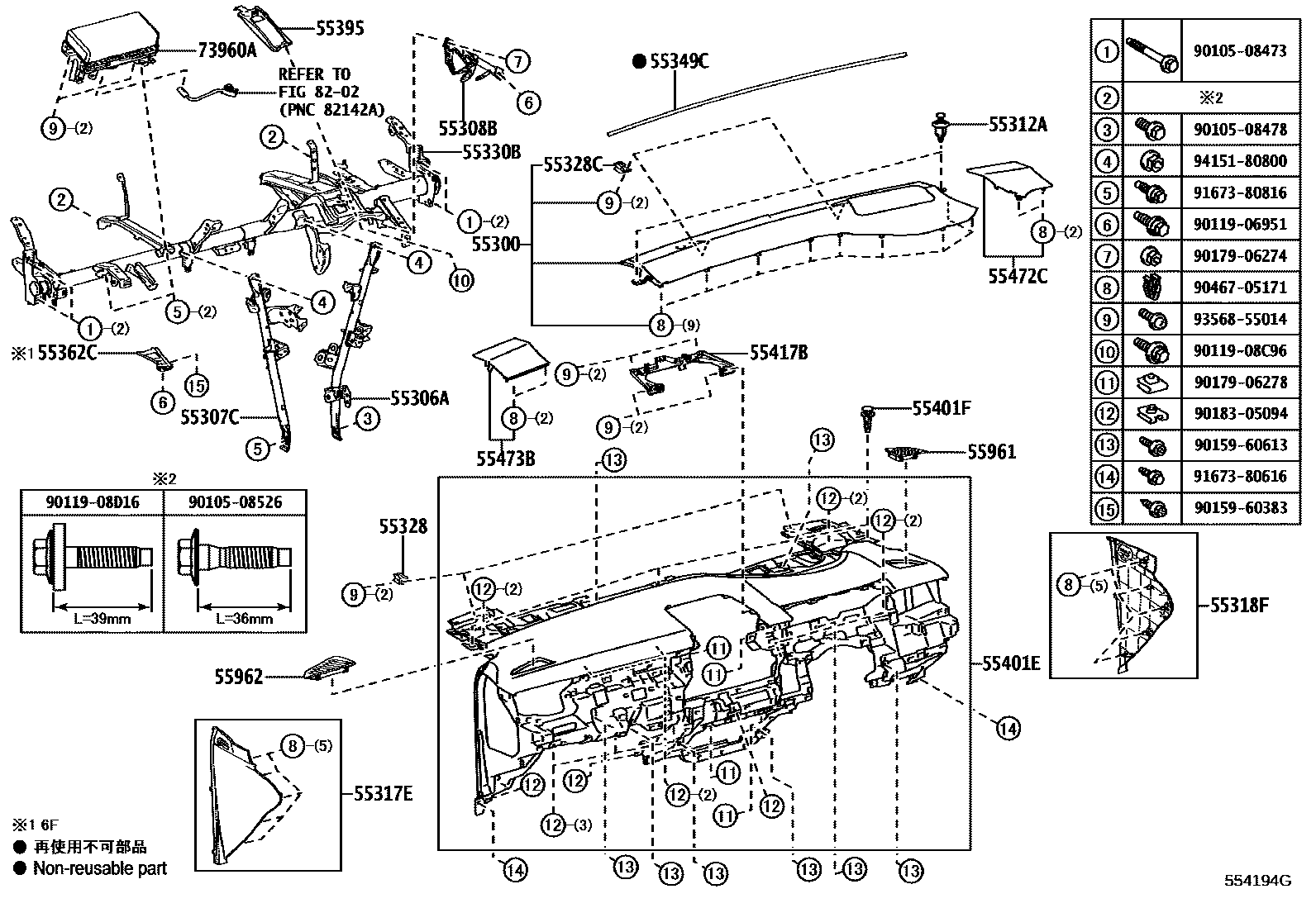

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1��������� 0005 1��� 0006 1����������

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-12060-C0iNRE21#,ZWE21#201806-202208

BLACK,TRIM2#,3#,4#

main55300-12070-C0iZWE213202006-202208

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12530iNRE210..6F201808

main55306-12550iNRE21#,ZWE213..CVT201806

main55306-12560iMZEA12202210-202505

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12460iNRE21#,ZWE213201806

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-12340iZWE211201806-202005

main55308-12350iMZEA12202210-202505

55312ACLIP, INSTRUMENT PANEL

main90467-07217×2iMZEA12202210-202505

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-12230-C0iNRE21#,ZWE213201806

BLACK,TRIM2#,3#,4#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-12170-C0iZWE219202210

BLACK,TRIM2#,3#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iZWE211202004-202005

main55328-60090×2iNRE21#,ZWE211201806-202004

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-12420×2iNRE21#,ZWE211201806-202003

main55328-12440×2iNRE21#,ZWE213202004

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12640supersedes 55330-12860iNRE21#,ZWE211201806-201912

main55330-12641supersedes 55330-12861iNRE21#,ZWE213202001

main55330-12830supersedes 55330-12870iZWE219202210

55349CCUSHION, INSTRUMENT PANEL

main55349-12190iZWE211201806-202005

main55349-12200iMZEA12202210-202505

55362CBRACKET, PARKING BRAKE MOUNTING

main55362-12100iNRE210..6F201808

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12040iZWE211201806-202005

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-12904-C4iNRE21#,ZWE213201909

BLACK,TRIM2#

main55400-12906-C0iNRE21#,ZWE211201806-201811

BLACK,TRIM2#

main55400-12906-C4iNRE21#,ZWE211201811-201909

BLACK,TRIM2#

main55400-12905-21iMZEA12,ZWE219202210-202505

main55400-12905-C7iNRE21#,ZWE213201909

main55400-12905-C8iZWE211201909-202005

main55400-12905-C9iNRE21#,ZWE213201909

main55400-12907-21iZWE219202210

main55400-12907-C1iNRE21#,ZWE211201806-201811

main55400-12907-C2iNRE21#,ZWE211201806-201811

main55400-12907-C3iNRE21#,ZWE211201806-201811

main55400-12907-C7iNRE21#,ZWE211201811-201909

main55400-12907-C8iZWE219202210

main55400-12907-C9iNRE21#,ZWE211201811-201909

main55400-12910-C0supersedes 55400-12904-C4iMZEA12202210-202505

main55400-12913-C3iZWE213202111

55401FCLIP(FOR SAFETY PAD)

main52161-16010×3iNRE21#,ZWE213201806

55417BRETAINER, RADIO TUNER FINISH

main55417-12060iNRE21#,ZWE211201806-201909

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-12140-C0iZWE211201806-202005

BLACK,TRIM2#,3#,4#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-12120-C0iZWE211201806-202005

BLACK,TRIM2#,3#,4#

main55473-12140-C0iNRE21#,ZWE213202006

BLACK,TRIM2#,3#,4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12260-C0iMZEA12; ZWE219202210-202505

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12230-C0iNRE21#,ZWE211201806-201909

BLACK,TRIM2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12200iMZEA12202210-202505

main73960-12320iZWE211201806-202005

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9015960383

main90159-60383

9015960613

main90159-60613

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

38 parts on this diagram · 6 diagrams in section
