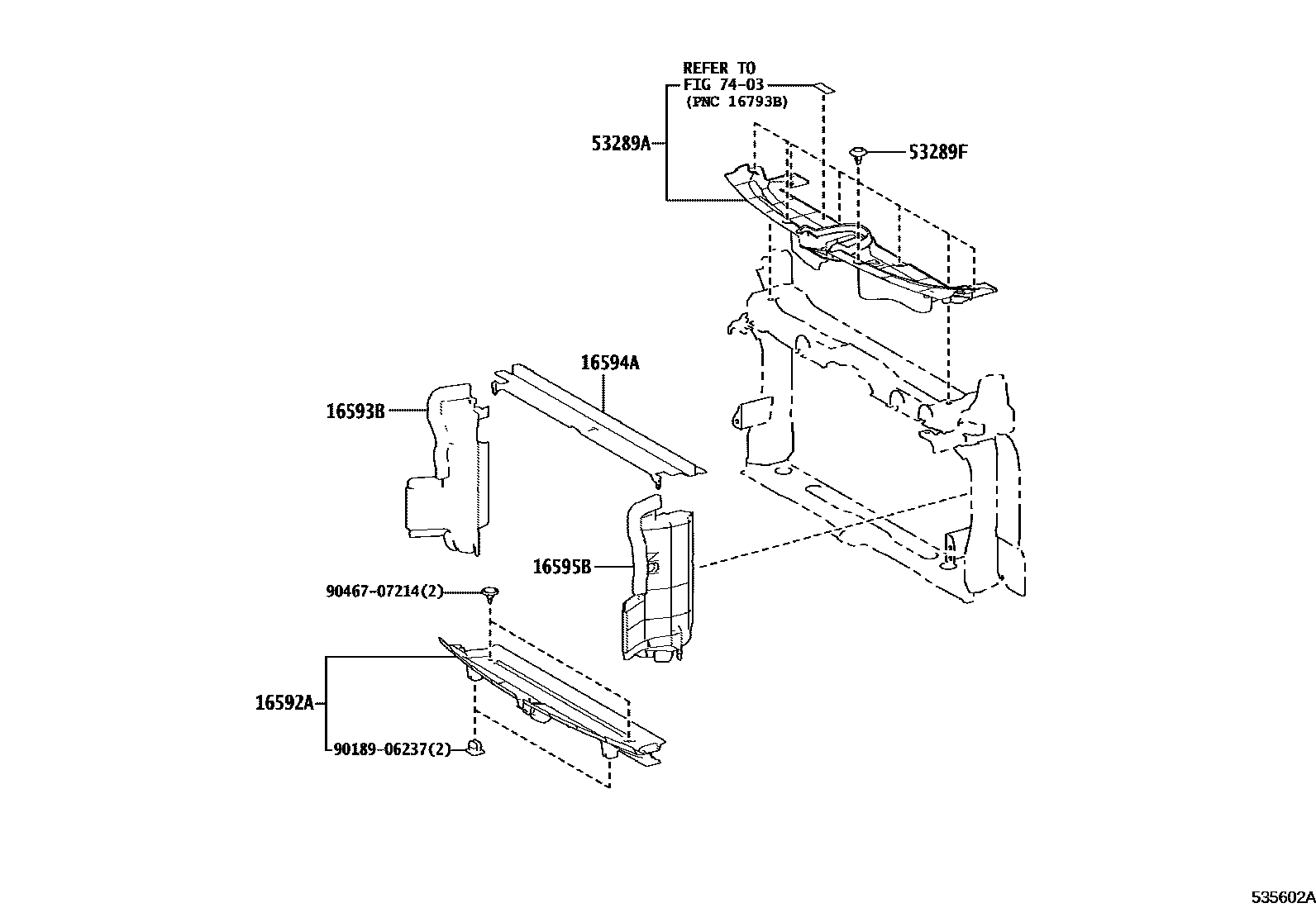

FRONT FENDER APRON & DASH PANEL

0001 1�������&��������������� 0002 1�������&��������������� 0003 1�����������&���������� 0004 1���������

16592AGUIDE, RADIATOR AIR, NO.3

main16592-24010i8NRFTS,2ZRFXE..NRE21#,ZWE213201806

main16592-24050iM20AFKS..MZEA12202210-202505

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-24020i2ZRFXE..ZWE219202210

main16593-37130supersedes 16593-37150i2ZRFXE..ZWE213; 8NRFTS..NRE21#201806

16594AGUIDE, RADIATOR AIR, NO.2

main16594-24040i2ZRFXE..ZWE219202210

main16594-37010i2ZRFXE..ZWE213201806

main16594-47010i8NRFTS..NRE21#201806

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-24020iM20AFKS..MZEA12202210-202505

main16595-47030i8NRFTS..NRE21#201806

main16595-37150supersedes 16595-37160i2ZRFXE..ZWE213201806

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-12080iZWE21#201806-202208

main53289-12090iNRE21#201806-202208

main53289-12120iZWE219202210

main53289-12130iMZEA12202210-202505

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07214×6iMZEA12; ZWE219202307-202311

main90467-07217×8iNRE21#; ZWE213201806

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9018906237

main90189-06237

9046707214

main90467-07214

9 parts on this diagram · 4 diagrams in section
