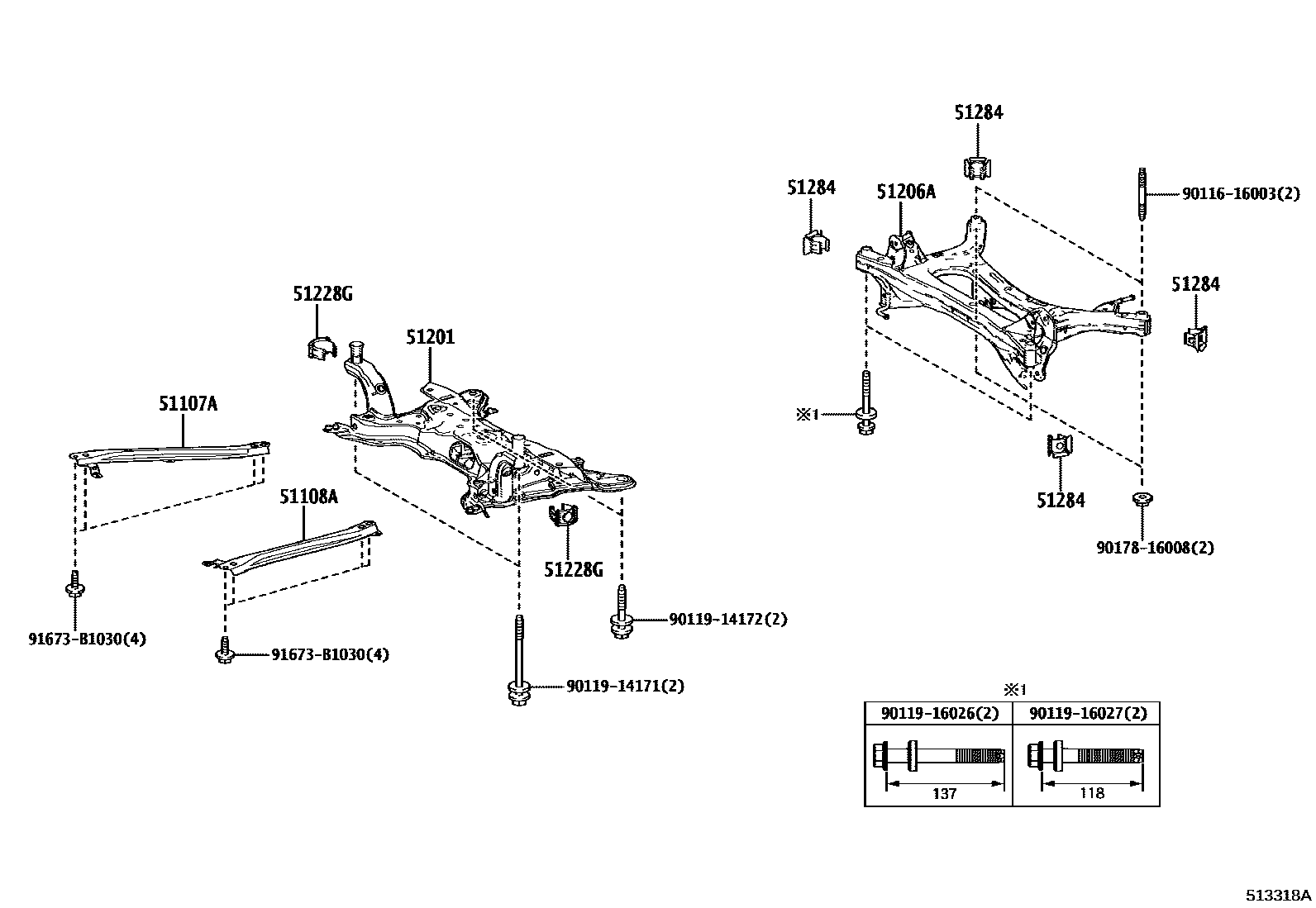

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1��������������� 0003 1�������� 0004 1��������(Z�������) 0005 1��������

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-12040iNRE214201806

main51107-47020iMZEA12202210-202505

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-12040iNRE214201806

main51108-47020iZWE219202210

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-10121iNRE214201806-201907

main51201-10122iNRE214201908

main51201-47071iNRE210,ZWE211201806-201902

main51201-47072iNRE210,ZWE213201903

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-10021iNRE214201806

main51206-47012iZWE211201806-202005

main51206-47013iNRE210,ZWE213202012

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010×2iZWE211201806-202005

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010×4iZWE211201806-202005

9011616003

main90116-16003

9011914171

main90119-14171

9011914172

main90119-14172

9011916026

main90119-16026

9011916027

main90119-16027

9017816008

main90178-16008

91673B1030

main91673-B1030

13 parts on this diagram · 5 diagrams in section
