BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905VACUUM PUMP

→ Go to FIG 19-05

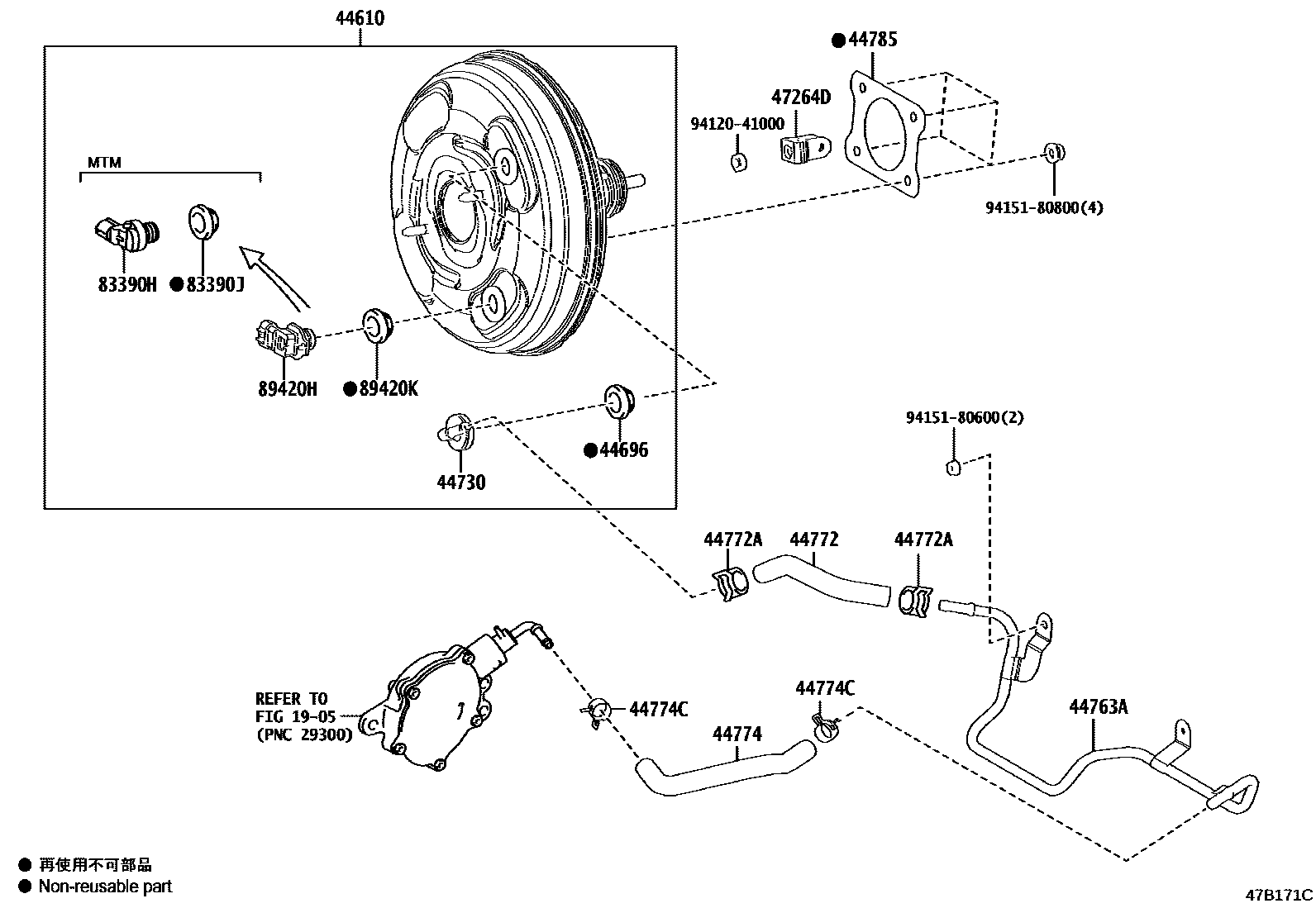

44610BOOSTER ASSY, BRAKE

main44610-12M90iNRE210..6F201808

main44610-12N00iNRE21#..CVT201806

44696GROMMET, CHECK VALVE

main90480-24439iNRE210..6F201808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iNRE21#..CVT201806

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12570iNRE21#..CVT201806

main44763-12590iMZEA12202210-202505

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12810iNRE21#..CVT201806

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iNRE21#..CVT201806

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12800iNRE21#..CVT201806

main44774-12860iMZEA12202210-202505

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iNRE210..6F201808

44785GASKET, BRAKE BOOSTER

main44785-12040iNRE21#201806

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMZEA12202305-202505

main47264-63010iNRE210..6F201808

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iNRE210..6F201808

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iNRE210..6F201808

89420HSENSOR ASSY, VACUUM

main89421-52020iNRE21#..CVT201806

89420KGROMMET, VACUUM SENSOR

main90480-24439iNRE21#..CVT201806

9412041000

main94120-41000

9415180600

main94151-80600

9415180800

main94151-80800

18 parts on this diagram · 2 diagrams in section
