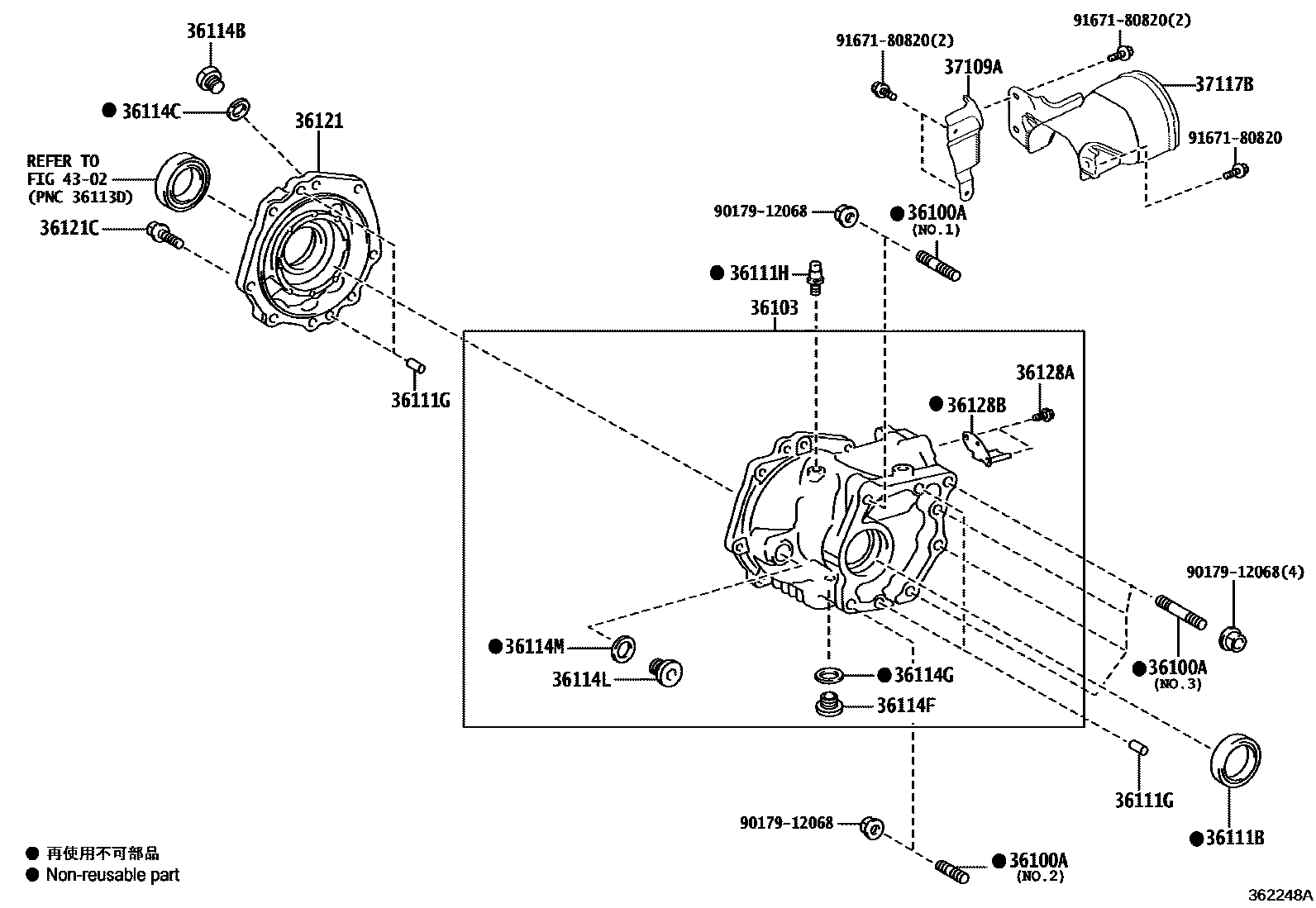

TRANSFER CASE & EXTENSION HOUSING

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12028iNRE214201806

main90116-12034iNRE214201806

main90116-12041×4iNRE214201806

36103CASE SUB-ASSY, TRANSFER

main36103-42052iNRE214201806

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-49001iNRE214201806

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iNRE214201806

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iNRE214201806

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iNRE214201806

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iNRE214201806

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iNRE214201806

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iNRE214201806

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iNRE214201806

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iNRE214201806

36121COVER, TRANSFER CASE, NO.1

main36121-52020iNRE214201806

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iNRE214201806

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iNRE214201806

36128BDEFLECTOR, BREATHER OIL

main36128-52010iNRE214201806

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-10010iNRE214201806

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-10010iNRE214201806

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9017912068

main90179-12068

9167180820

main91671-80820

20 parts on this diagram · 1 diagram in section
