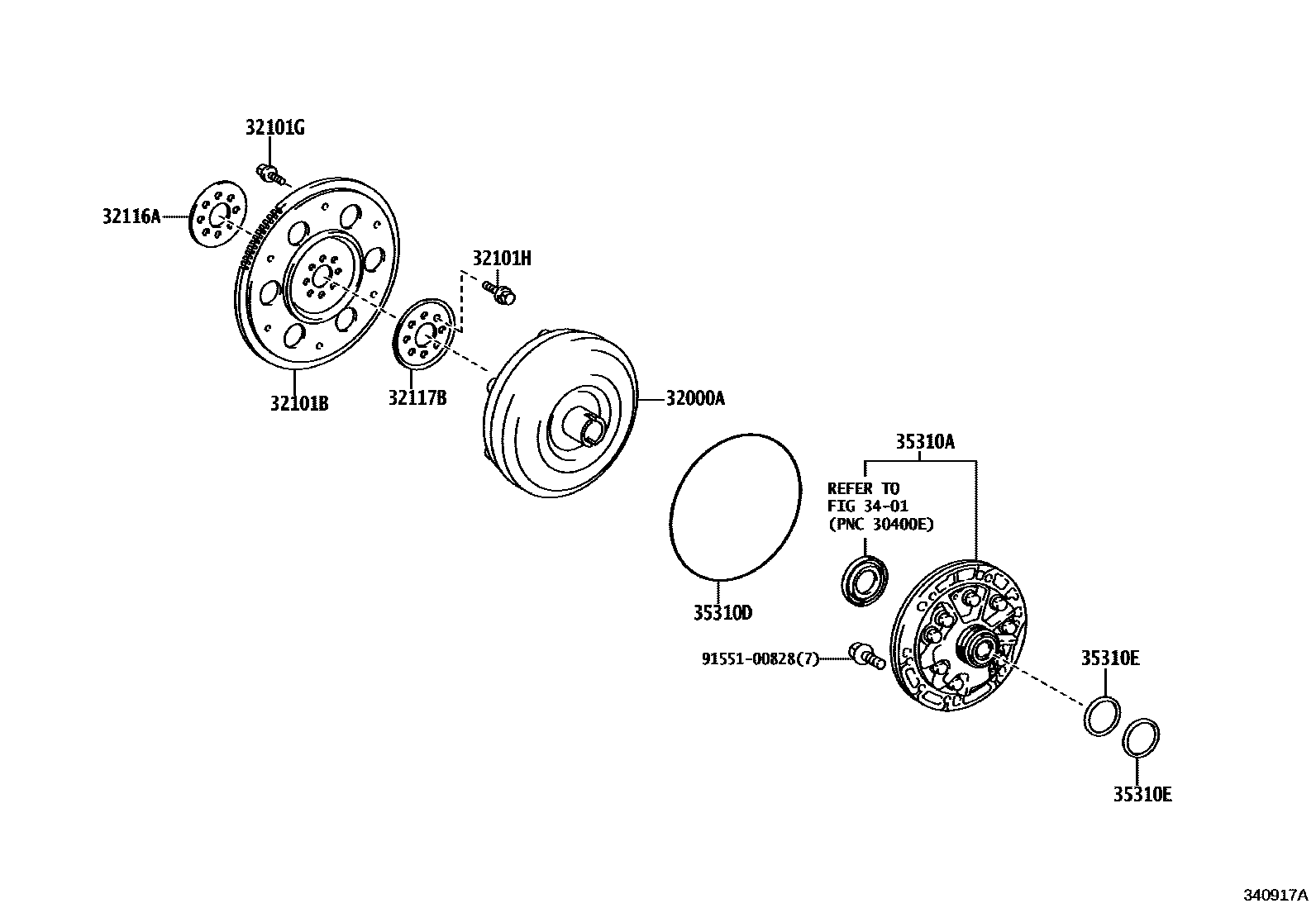

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K313,K313F 0002 1K120

32000ACONVERTER ASSY, TORQUE

main32000-12451iNRE21#..CVT201806-202208

main32000-12460iMZEA12202210-202505

main32000-12520iMZEA12202210-202505

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iNRE21#..CVT201806-202208

main32101-12120iMZEA12202210-202505

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNRE21#..CVT201806-202208

main90109-09001iMZEA12202210-202505

main90119-08498×5iNRE21#..CVT201806-202208

main90119-09025×5iMZEA12202210-202505

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iNRE21#..CVT201806-202208

main90105-12404×8iMZEA12202210-202505

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNRE21#..CVT201806-202208

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNRE21#..CVT201806-202208

main32117-33010iMZEA12202210-202505

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-12170iNRE21#..CVT201806-202208

main35310-12200iMZEA12202210-202505

main35310-28050iMZEA12202210-202505

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99202iNRE21#..CVT201806-202208

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12031×2iNRE21#..CVT201806-202208

main35617-12060×2iMZEA12202210-202505

main35617-12070×2iMZEA12202210-202505

9155100828

main91551-00828

11 parts on this diagram · 2 diagrams in section
