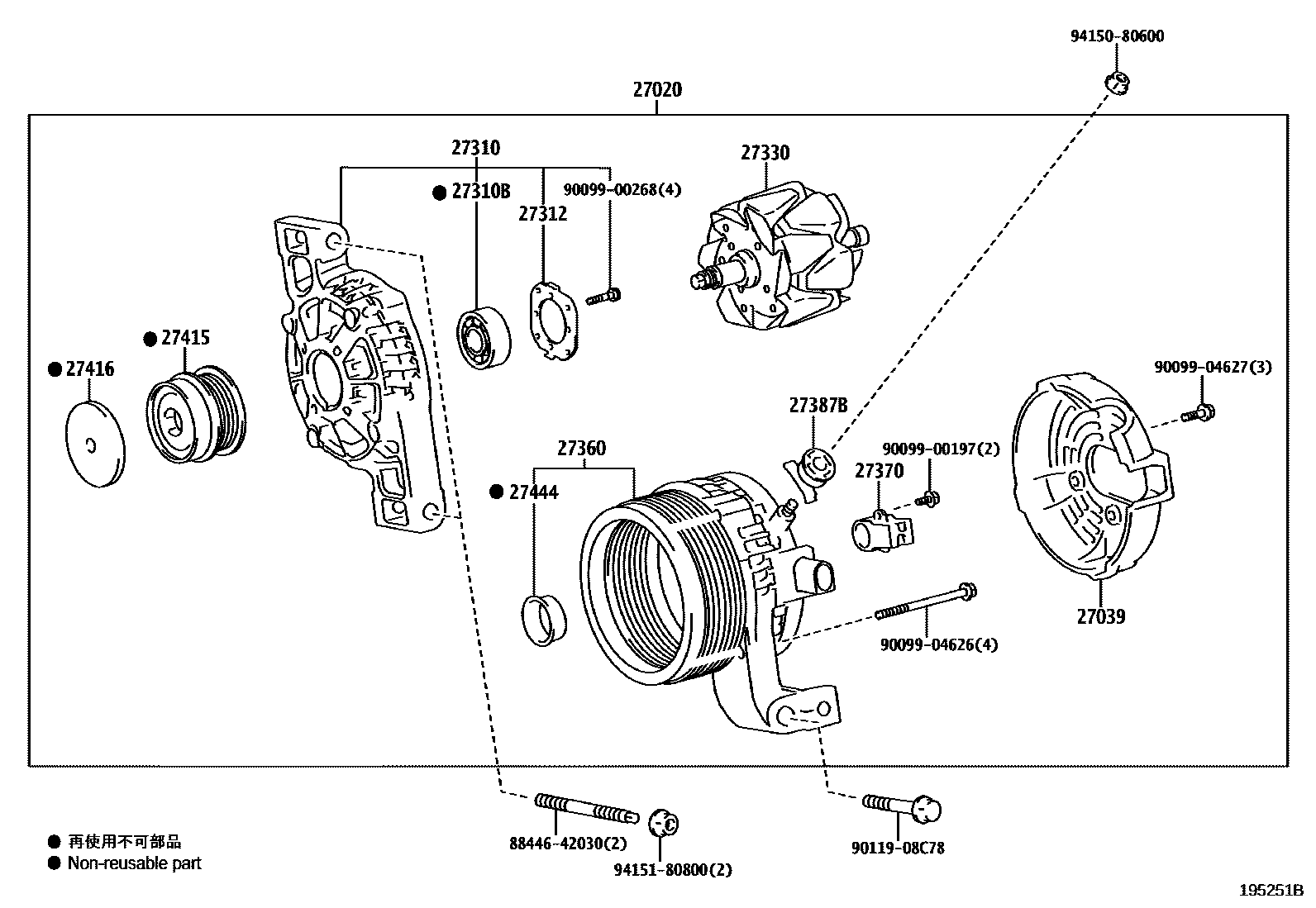

ALTERNATOR

0001 112V 100A 0002 112V 100A 0003 112V 100A

27020ALTERNATOR ASSY

main27060-24030iM20AFKS..MZEA12202210-202303

main27060-24080iM20AFKS..MZEA12202303-202505

main27060-47191i8NRFTS..NRE210..6F201808

27039COVER, ALTERNATOR REAR END

main27039-37220i8NRFTS..NRE210..6F201808

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24150iM20AFKS..MZEA12202210-202505

main27310-47431i8NRFTS..NRE21#..CVT201806

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223iM20AFKS..MZEA12202210-202505

27312PLATE, RETAINER

main27312-72100i8NRFTS..NRE21#..CVT201806

27330ROTOR ASSY, ALTERNATOR

main27330-47330i8NRFTS..NRE21#..CVT201806

27360COIL ASSY, ALTERNATOR

main27360-24150iM20AFKS..MZEA12202210-202505

main27360-47431i8NRFTS..NRE21#..CVT201806

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i8NRFTS..NRE210..6F201808

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i8NRFTS..NRE21#..CVT201806

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-24010iM20AFKS..MZEA12202210-202305

main27415-47050i8NRFTS..NRE21#..CVT201806

27416CAP, ALTERNATOR PULLEY

main27416-47010iM20AFKS..MZEA12202210-202305

main27416-47020i8NRFTS..NRE21#..CVT201806

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i8NRFTS..NRE21#..CVT201806

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011908C78

main90119-08C78

9415080600

main94150-80600

9415180800

main94151-80800

20 parts on this diagram · 3 diagrams in section
