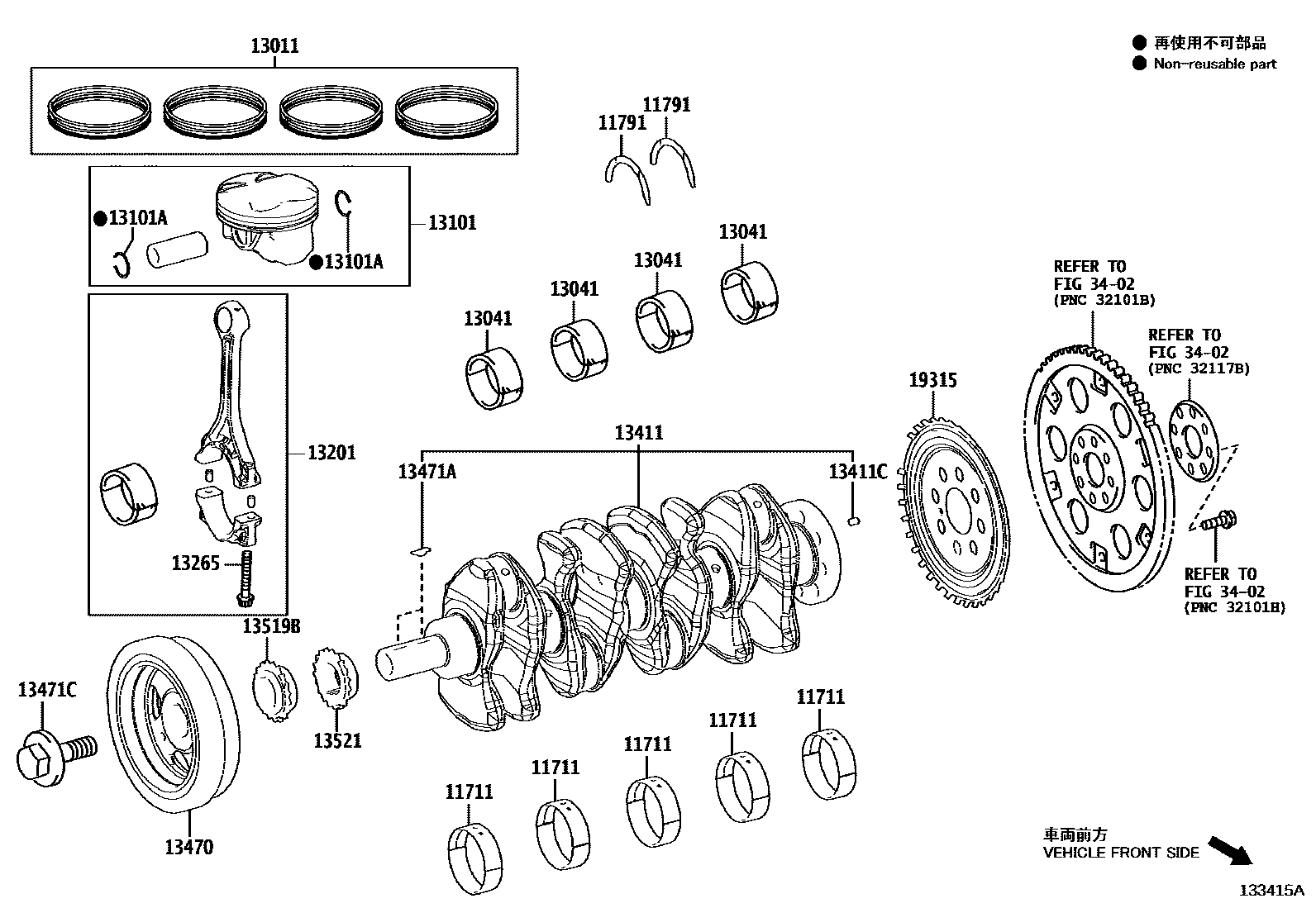

CRANKSHAFT & PISTON

Parts diagram

11711BEARING, CRANKSHAFT

main11701-24010-01×5i202210-202303

main11701-24010-02×5i202210-202303

main11701-24010-03×5i202210-202303

main11701-24010-04×5i202210-202303

main11701-24010-05×5i202210-202303

main11701-24010-06×5i202210-202303

main11701-24011-01×5i202303-202505

main11701-24011-02×5i202303-202505

main11701-24011-03×5i202303-202505

main11701-24011-04×5i202303-202505

main11701-24011-05×5i202303-202505

main11701-24011-06×5i202303-202505

main11701-37050-01×5i201806-202005

main11701-37050-02×5i202210

main11701-37050-03×5i201806

main11701-37050-04×5i201806

main11701-47032-01×5i201806

main11701-47032-02×5i201806

main11701-47032-03×5i201806

main11701-47032-04×5i201806

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2i202210-202505

main11791-22020×2i202301

main11791-37010×2i202210-202301

main11791-47011×2i201806

13011RING SET, PISTON

main13011-24040i202210-202505

main13011-37270i201806

main13011-47130i201806-201902

main13011-47131i201903

13041BEARING, CONNECTING ROD

main13041-24020-01×4i202210-202505

main13041-24020-02×4i202210-202505

main13041-24020-03×4i202210-202505

main13041-37040-01×4i201806-202005

main13041-37040-02×4i202210

main13041-37040-03×4i202210

main13041-47041-01×4i201806

main13041-47041-02×4i201806

main13041-47041-03×4i201806

13101PISTON SUB-ASSY, W/PIN

main13101-24040×4i202210-202505

main13101-37250×4i201806-202005

main13101-37440×4i202210

main13101-47190×4i201806

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×8i202210-202505

main90520-20064×8i201806

13201ROD SUB-ASSY, CONNECTING

main13201-09C10×4i201806-202005

main13201-29835-A0×4i202210-202505

main13201-29835-B0×4i202210-202505

main13201-29835-C0×4i202210-202505

main13201-39295×4i201806

main13201-49126×4i201806

13265BOLT, CONNECTING ROD

main13265-22020×8i201806-201902

main13265-22040×8i201903

main13265-25020×8i202210-202505

main13265-47010×8i201806

13411CRANKSHAFT

main13401-0T061i201806

main13401-24010i202210-202505

main13401-37021i201806

main13401-47100i201806

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202210-202505

13470PULLEY ASSY, CRANKSHAFT

main13470-0Y050i202012

main13470-24010i202210-202505

main13470-47100i201806-202012

13471PULLEY, CRANKSHAFT

main13470-37060i201806-202005

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i202210-202505

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i201809-202005

main90119-14175i201806-201808

main90119-16020i202210-202505

13519GEAR, OIL PUMP DRIVE

main13519-37010i202210

main13519-47010i201806

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010i202210-202505

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-24010i202210-202505

main13521-37011i201806

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010i202210-202505

main19315-37020i201806-202005

main19315-37030i202210

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

19 parts on this diagram · 3 diagrams in section
