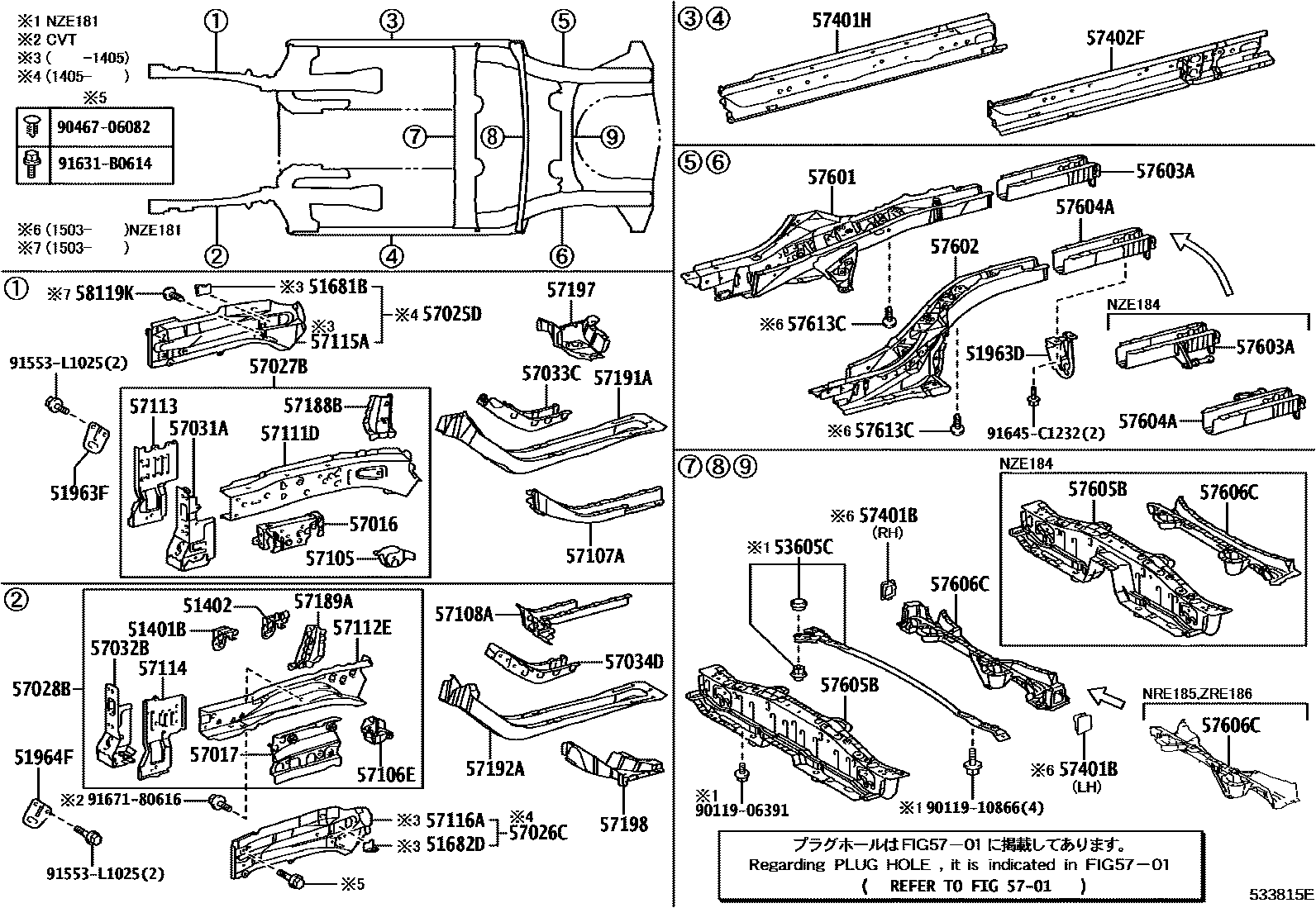

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-12020i201208-201503

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-12020i201208-201503

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080i201208-201405

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080i201208-201405

51963DHOOK, TRANSPORT, REAR LH

main51968-12180i201208-201503

51963FHOOK, TRANSPORT

main51963-12250i201208-201503

51964FHOOK, TRANSPORT, LH

main51964-12040i201208-201503

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53605-12020i201208-201306

main53605-12021i201307-201503

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110i201208-201503

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070i201208-201503

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-12010i201405-201503

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-12020i201405-201503

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010i201208-201503

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020i201208-201503

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010i201208-201503

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010i201208-201503

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-12010i201208-201503

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-12010i201208-201503

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160i201208-201503

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150i201208-201503

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-12120i201208-201503

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-12140i201208-201503

57111DMEMBER, FRONT SIDE, INNER RH

main57111-12230i201208-201503

57112EMEMBER, FRONT SIDE, INNER LH

main57112-12190i201208-201503

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220i201208-201503

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190i201208-201406

main57114-12191i201407-201503

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12090i201208-201405

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12090i201208-201312

main57116-12091i201401-201405

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-12030i201503

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010i201208-201503

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-12070i201208-201503

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-12060i201208-201503

57197BOX, TORQUE, FRONT RH

main57197-12040i201208-201503

57198BOX, TORQUE, FRONT LH

main57198-12040i201208-201503

57401BCOVER, HOLE(FOR MAIN FLOOR SIDE MEMBER)

main58565-12010i201503

main58566-12010i201503

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-12600i201208-201503

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-12610i201208-201503

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12A00i201208-201503

main57601-12A10i201503

main57601-12A70i201208-201503

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12A00i201503

main57602-12A10i201208-201503

main57602-12A70i201208-201503

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-12070i201503

main57603-12090i201503

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-12060i201503

main57604-12070i201208-201503

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02190i201604

main57605-12260i201503

main57605-12283i201503

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-12202i201208-201405

main57606-12203i201406-201503

main57606-12221i201503

main57606-12270i201604

main57606-12361i201208-201405

main57606-12362i201406-201503

57613CCLIP, REAR FLOOR SIDE MEMBER

main90467-06020-C0×2i201503-201805

BLACK

58119KCOVER, FRONT FLOOR SIDE, FRONT

main58119-12020×2i201503

9011906391

main90119-06391

9011910866

main90119-10866

9046706082

main90467-06082

91553L1025

main91553-L1025

91631B0614

main91631-B0614

91645C1232

main91645-C1232

9167180616

main91671-80616
