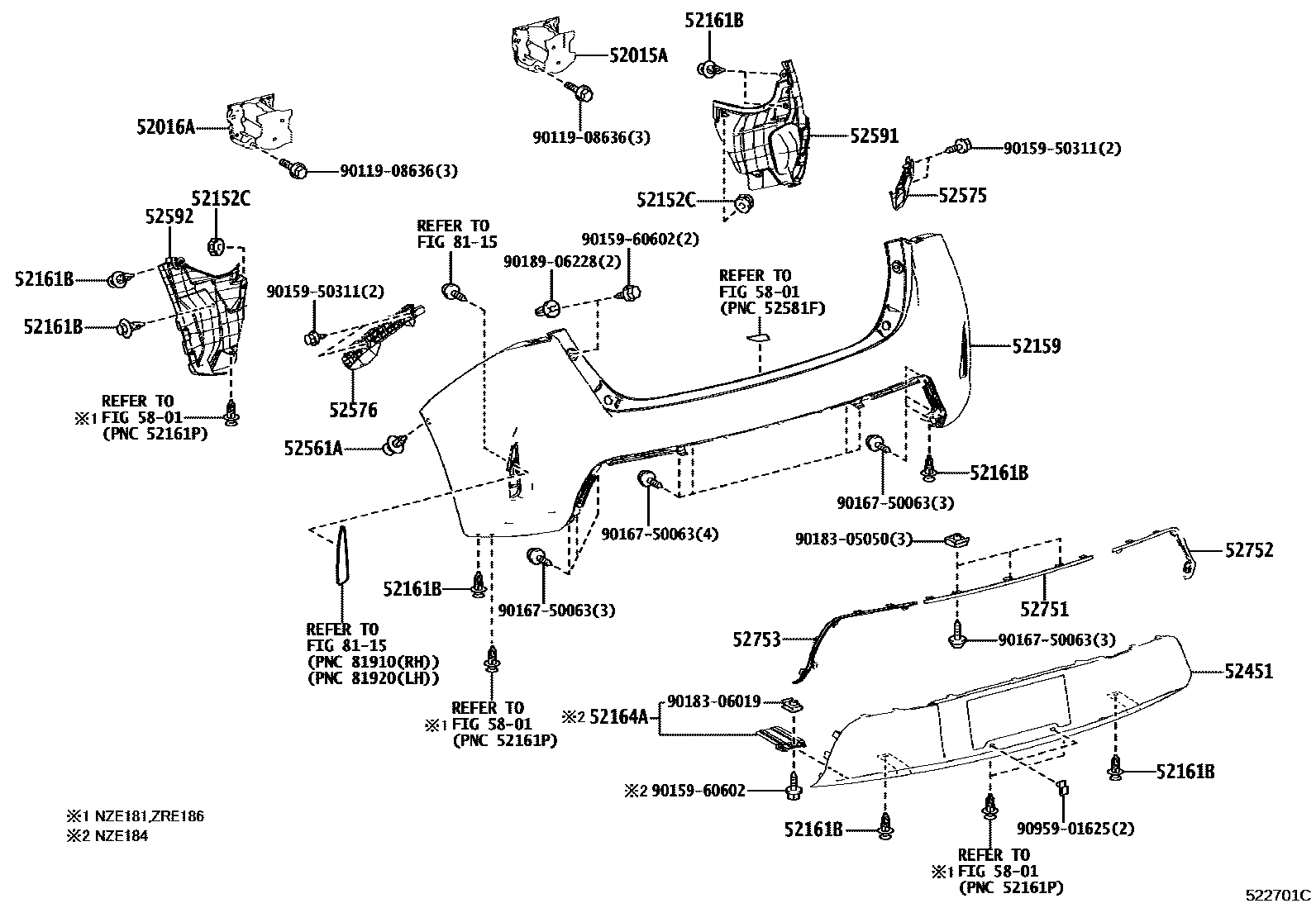

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12330iNRE185,NZE18#,ZRE186,ZWE186201503

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12300iNZE18#,ZRE186201208-201503

52152CCLIP, REAR BUMPER SIDE

main90467-06206-C0×2iNZE18#,ZRE186201208-201503

BLACK

52159COVER, REAR BUMPER

main52159-12B80-A1iNZE18#,ZRE186201208-201405

WHITE PEARL CS.,070

main52159-12B80-B0iNZE18#,ZRE186201208-201405

SILVER ME.,1F7

main52159-12B80-C0iNZE18#,ZRE186201405-201503

BLACK MC.,209

main52159-12B80-D0iNZE18#,ZRE186201208-201405

RED M.M.,3R3

main52159-12B80-D1iNZE18#201405-201503

BLACKISH RED MC.,3R0

main52159-12B80-E0iNZE18#,ZRE186201208-201405

AVANT-GARDE BRONZE ME.,4V8

main52159-12B80-E1iNZE18#,ZRE186201405-201503

ORANGE ME.,4R8

main52159-12B80-J1iNZE18#,ZRE186201208-201405

BLUE ME.,8T7

main52159-12C40-A1iNRE185,NZE18#,ZRE186,ZWE186..CVT201503-201805

WHITE PEARL CS.,070

main52159-12C40-B0iNRE185,NZE18#,ZRE186,ZWE186..CVT201503-201805

SILVER ME.,1F7

main52159-12C40-C0iNRE185,NZE18#,ZRE186,ZWE186..CVT201503-201805

BLACK MC.,209

main52159-12C40-D0iNRE185,NZE18#,ZRE186,ZWE186..CVT201503-201805

RED M.M.,3R3

main52159-12C40-E0iNRE185,NZE18#,ZRE186,ZWE186..CVT201503-201805

ORANGE ME.,4R8

main52159-12C40-G0iNRE185,NZE18#,ZRE186,ZWE186..CVT201503-201805

CITRUS M.M.,6W2

main52159-12C40-J1iNRE185,NZE18#,ZRE186,ZWE186..CVT201503-201805

BLUE ME.,8X7

main52159-12C60-A1iZRE186..RS201503-201805

WHITE PEARL CS.,070

main52159-12C60-B0iZRE186..RS201503-201805

SILVER ME.,1F7

main52159-12C60-C0iZRE186..RS201503-201805

BLACK MC.,209

main52159-12C60-D0iZRE186..RS201503-201805

RED M.M.,3R3

main52159-12C60-E0iZRE186..RS201503-201805

ORANGE ME.,4R8

main52159-12C60-G0iZRE186..RS201503-201805

CITRUS M.M.,6W2

main52159-12C60-J1iZRE186..RS201503-201805

BLUE ME.,8X7

main52159-12C90-A1iNZE18#,ZRE186201405-201503

WHITE PEARL CS.,070

52161BPIECE, REAR BUMPER

main52161-16010×8iNZE18#,ZRE186201208-201503

52164APLATE, REAR BUMPER, LH

main52164-12090iNZE184201208-201503

52451GUARD, REAR BUMPER

main52453-12060iZRE186..RS201208-201503

main52453-12100iNZE18#,ZRE186..CVT201208-201503

main52453-12070iNZE18#201208-201503

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-05170×2iNZE18#,ZRE186201208-201503

main90467-06206-C0×2iNRE185,NZE18#,ZRE186,ZWE186201503-201805

BLACK

52575RETAINER, REAR BUMPER SIDE, RH

main52575-12190iNZE18#,ZRE186201208-201503

52576RETAINER, REAR BUMPER SIDE, LH

main52576-12190iNZE18#,ZRE186201208-201503

52591SEAL, REAR BUMPER SIDE, RH

main52591-12290iNZE18#,ZRE186201208-201503

52592SEAL, REAR BUMPER SIDE, LH

main52592-12210iNZE18#,ZRE186201208-201503

52751MOULDING, REAR BUMPER

main52751-12250iNZE18#,ZRE186201208-201503

main52751-12270iZRE186..RS201503

main52751-12280iNRE185,NZE18#,ZRE186,ZWE186..CVT201503

main52751-12260iNZE18#201208-201503

52752MOULDING, REAR BUMPER SIDE, RH

main52752-12030iNZE18#,ZRE186201208-201503

main52752-12040iNZE18#201208-201503

52753MOULDING, REAR BUMPER SIDE, LH

main52753-12040iNZE18#,ZRE186201208-201503

main52753-12050iNZE18#201208-201503

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9011908636

main90119-08636

9015950311

main90159-50311

9015960602

main90159-60602

9016750063

main90167-50063

9018305050

main90183-05050

9018306019

main90183-06019

9018906228

main90189-06228

9095901625

main90959-01625

25 parts on this diagram · 2 diagrams in section
