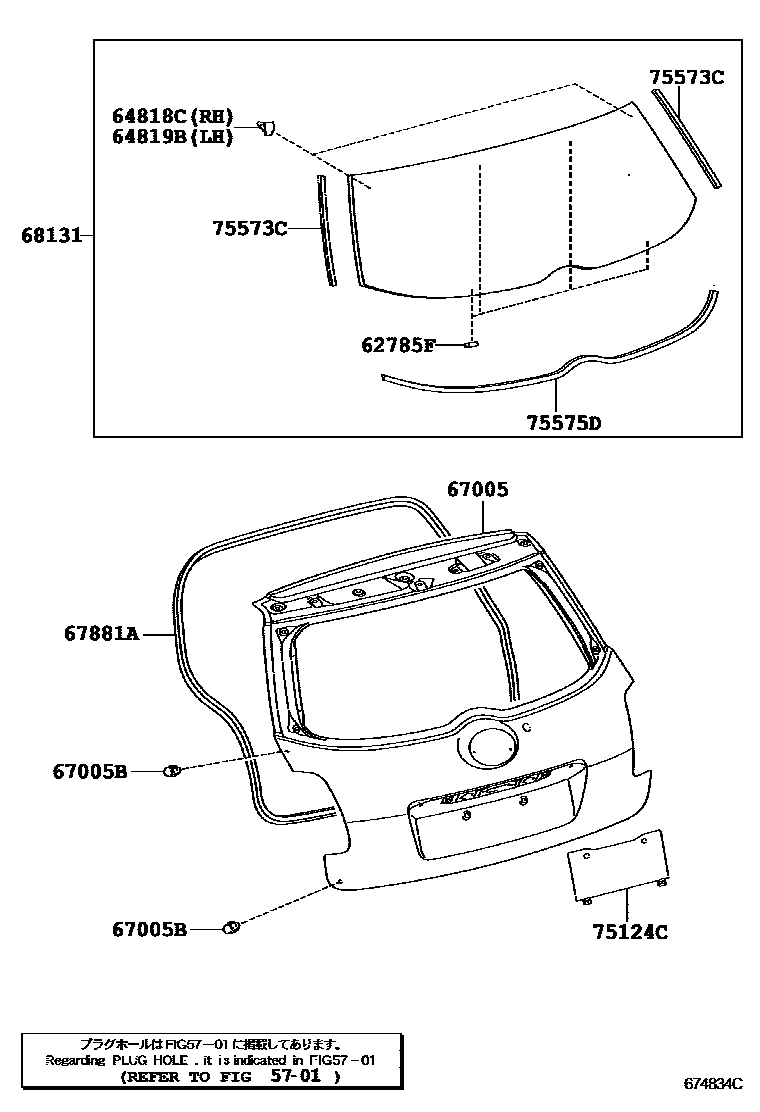

BACK DOOR PANEL & GLASS

0001 1��� ���� 0002 1��� ���

5701HOLE PLUG

→ Go to FIG 57-01

62785FSPACER, BACK DOOR GLASS

main62785-12050×4iNZE15#,ZRE15#200910

main62785-60030×4iNZE15#,ZRE15#200610-200805

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-12050iNZE15#,ZRE15#200812-200910

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-12030iNZE15#,ZRE15#200812-200910

67005PANEL SUB-ASSY, BACK DOOR

main67005-12A20supersedes 67005-12B70iNZE15#; ZRE15#200812-200910

main67005-12A40supersedes 67005-12B70iNZE15#; ZRE15#200610-200812

main67005-12B40supersedes 67005-12C00iNZE15#; ZRE15#200910-201208

main67005-12C00supersedes 67005-12B70iNZE15#; ZRE15#200910-201208

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142×4iNZE15#,ZRE15#200812-200910

67881AWEATHERSTRIP, BACK DOOR

main67881-12290iNZE15#,ZRE15#200610-200812

68131GLASS, BACK DOOR

main68105-12320supersedes 68105-12300iNZE15#; ZRE15#200610-200812

75124CBRACKET, REAR LICENSE PLATE SUPPORT

main75124-12020iNZE15#,ZRE15#200610-200706

main75124-12021iNZE15#,ZRE15#200707-200812

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-12340×2iNZE15#,ZRE15#200610-200812

75575DMOULDING, BACK WINDOW, LOWER

main75575-12440iNZE15#,ZRE15#200610-200812

11 parts on this diagram · 2 diagrams in section
