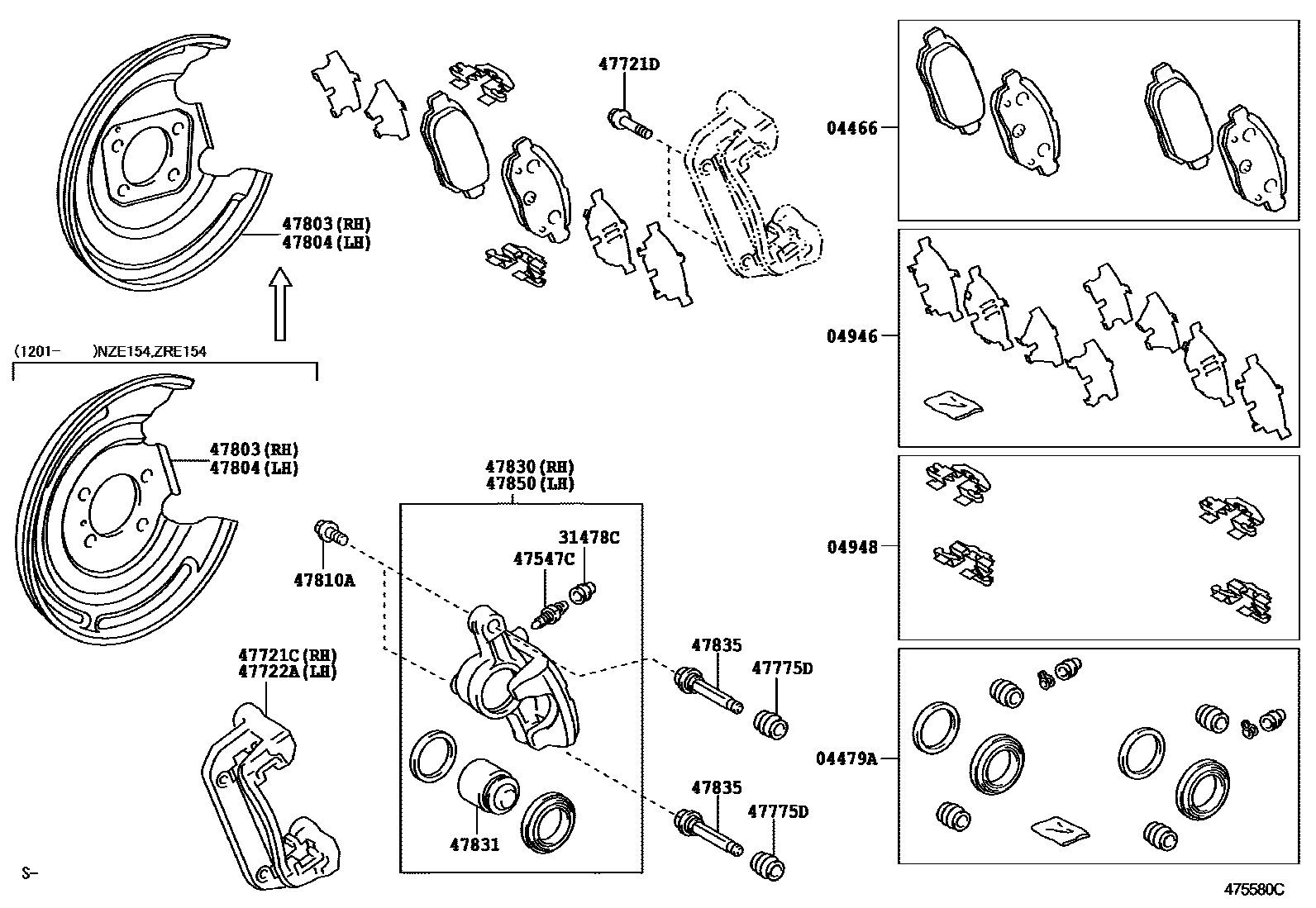

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-12130iNZE15#,ZRE15#200812-200910

main04466-12140iNZE15#,ZRE15#201111-201205

main04466-12150iNZE15#,ZRE15#201206-201208

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iNZE15#,ZRE15#200610-200812

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12040iNZE15#,ZRE15#200812-200910

main04946-12110iNZE15#,ZRE15#201008

04948FITTING KIT, DISC BRAKE, REAR

main04948-12030iNZE151,ZRE152200610-200710

main04948-12060iNZE151,ZRE152201111

main04948-52040iNZE151,ZRE152200812-200910

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010×2iNZE15#,ZRE15#200610-200812

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050×2iNZE15#,ZRE15#200610-200812

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iNZE154,ZRE154200812-200910

main47821-12151iNZE151,ZRE152200910

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404×4iNZE15#,ZRE15#200610-200812

main91552-C1025×4iNZE154,ZRE154201201-201208

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iNZE151,ZRE152200610-200710

main47821-12151iNZE151,ZRE152200812-200910

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iNZE15#,ZRE15#200812-200910

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12070iNZE151,ZRE152200610-200710

main47881-12071iNZE151,ZRE152200910-201208

main47881-12080iNZE154,ZRE154200812-200910

main47881-12090iNZE154,ZRE154201201-201208

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12070iNZE151,ZRE152200610-200710

main47882-12071iNZE151,ZRE152200710-200812

main47882-12080iNZE154,ZRE154200812-200910

main47882-12090iNZE154,ZRE154201201-201208

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iNZE15#,ZRE15#200812-200910

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12151iNZE151,ZRE152200610-200812

main47830-12160iNZE154,ZRE154200812-200910

47831PISTON, REAR DISC BRAKE

main47831-52050×2iNZE15#,ZRE15#200910

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150×4iNZE15#,ZRE15#200610-200812

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12151iNZE151,ZRE152200610-200812

main47850-12160iNZE154,ZRE154200610-200812

17 parts on this diagram · 1 diagram in section
