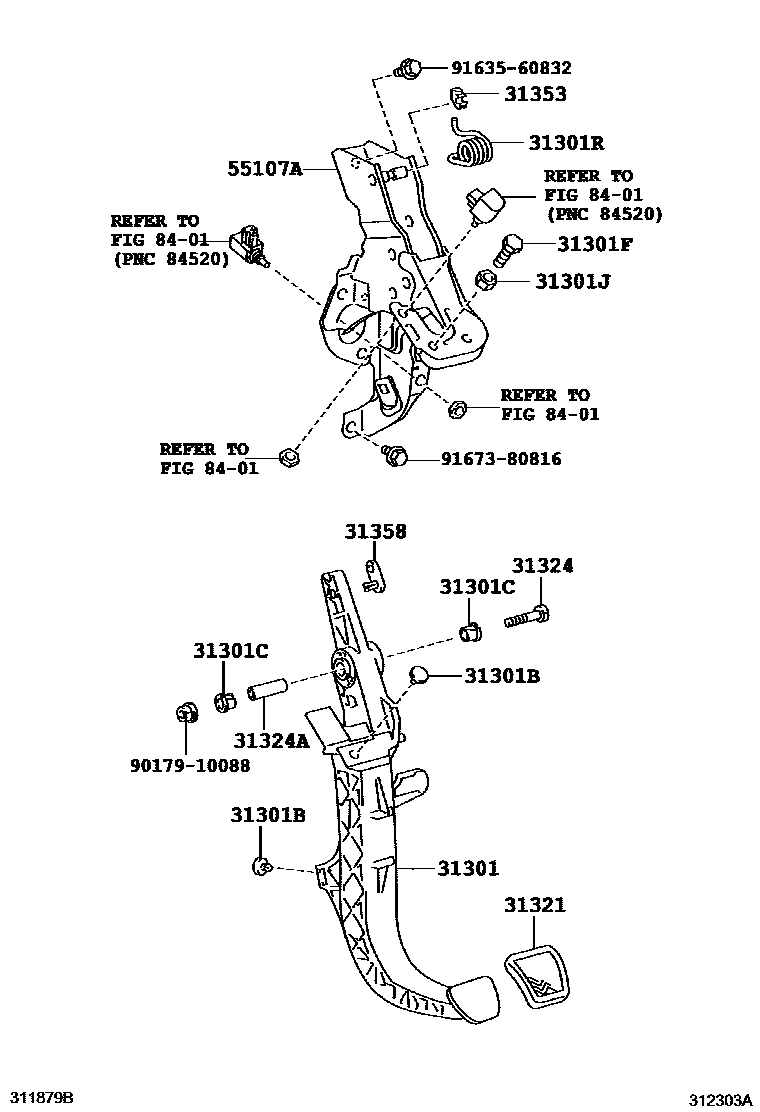

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31311-12370iZRE152..6F200910-201205

main31311-12371iZRE152..6F201205

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iZRE152..6F200910

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iZRE152..6F200910

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iZRE152..6F200910

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iZRE152..6F200910

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main31394-12060iZRE152..6F200910

31321PAD, CLUTCH PEDAL

main31321-42010iZRE152..6F200910

31324SHAFT, CLUTCH PEDAL

main90101-10039iZRE152..6F200910

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iZRE152..6F200910

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iZRE152..6F200910

31358CAP, OVER CENTER SPRING

main31358-42010iZRE152..6F200910

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12290iZRE152..6F200910-201205

main55107-12291iZRE152..6F201205

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017910088

main90179-10088

9163560832

main91635-60832

9167380816

main91673-80816

16 parts on this diagram · 2 diagrams in section
