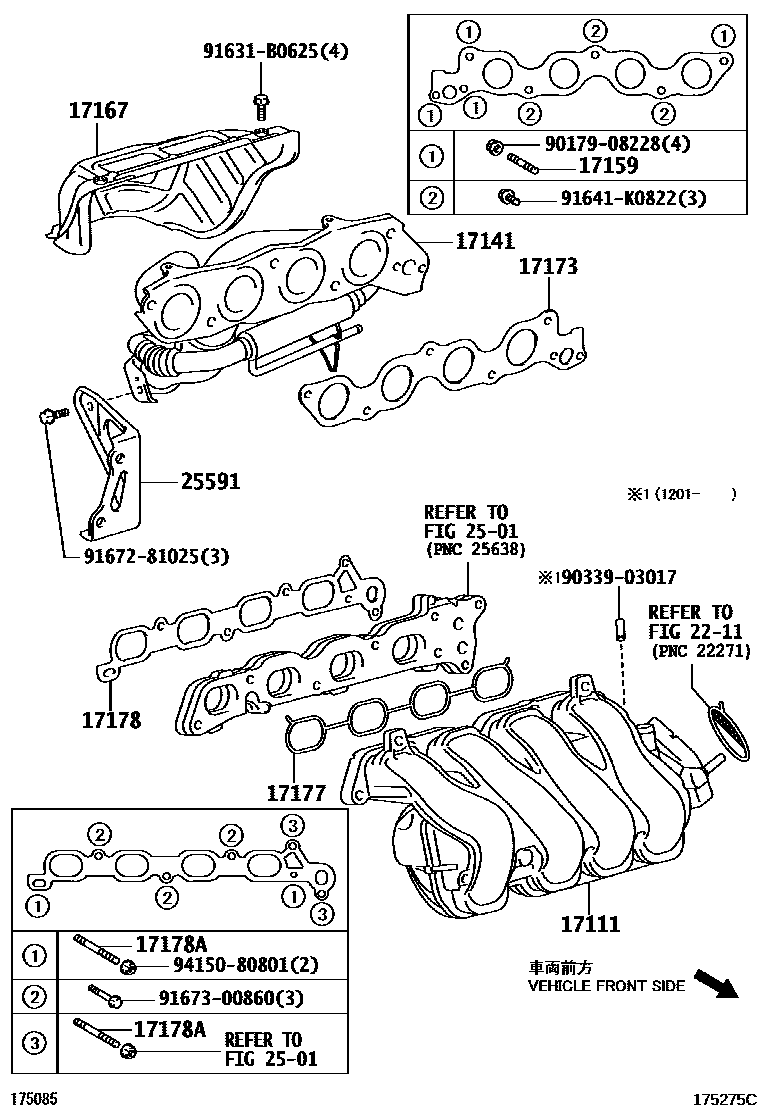

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17111MANIFOLD, INTAKE

main17101-21070i1NZFE..NZE15#200812-200910

main17101-21071i1NZFE..NZE15#201204-201208

main17120-37011i2ZRFAE..ZRE15#200910-201208

main17120-37020i2ZRFE..ZRE15#200610-200805

main17120-37021i2ZRFE..ZRE15#200812-200909

17141MANIFOLD, EXHAUST

main17104-21040i1NZFE..NZE151200812-200904

main17104-21041i1NZFE..NZE151200910

main17141-21170i1NZFE..NZE154200610-200812

main17141-37050i2ZRFE..ZRE152200610-200612

main17141-37051i2ZRFE..ZRE152200612-200812

main17141-37060i2ZRFAE..ZRE154200910

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2ZRFAE..ZRE15#200910-201208

main90126-08037×4i1NZFE..NZE15#200812-200910

main90126-08052×5i2ZRFE..ZRE15#200610-200812

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21110i1NZFE..NZE151200812-200910

main17167-21150i1NZFE..NZE154200610-200812

main17167-37010i2ZRFE..ZRE152200610-200611

main17167-37011i2ZRFE..ZRE152200812-200910

main17167-37020i2ZRFE..ZRE154200610-200812

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21030i1NZFE..NZE15#200610-200812

main17173-37010i2ZRFE..ZRE15#200610-200812

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21030i1NZFE..NZE15#200910-201208

main17177-37030i2ZRFE..ZRE15#200812-200909

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-21010i1NZFE..NZE15#200610-200812

17178ASTUD, HEX LOBULAR(INTAKE MANIFOLD TO HEAD GASKET)

main90126-08049×4i1NZFE..NZE15#200610-200812

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25591BRACKET, MANIFOLD SUPPORT

main25591-21060i1NZFE..NZE151200610-200812

9017908228

main90179-08228

9033903017

main90339-03017

91631B0625

main91631-B0625

91641K0822

main91641-K0822

9167281025

main91672-81025

9167300860

main91673-00860

9415080801

main94150-80801

18 parts on this diagram · 6 diagrams in section
