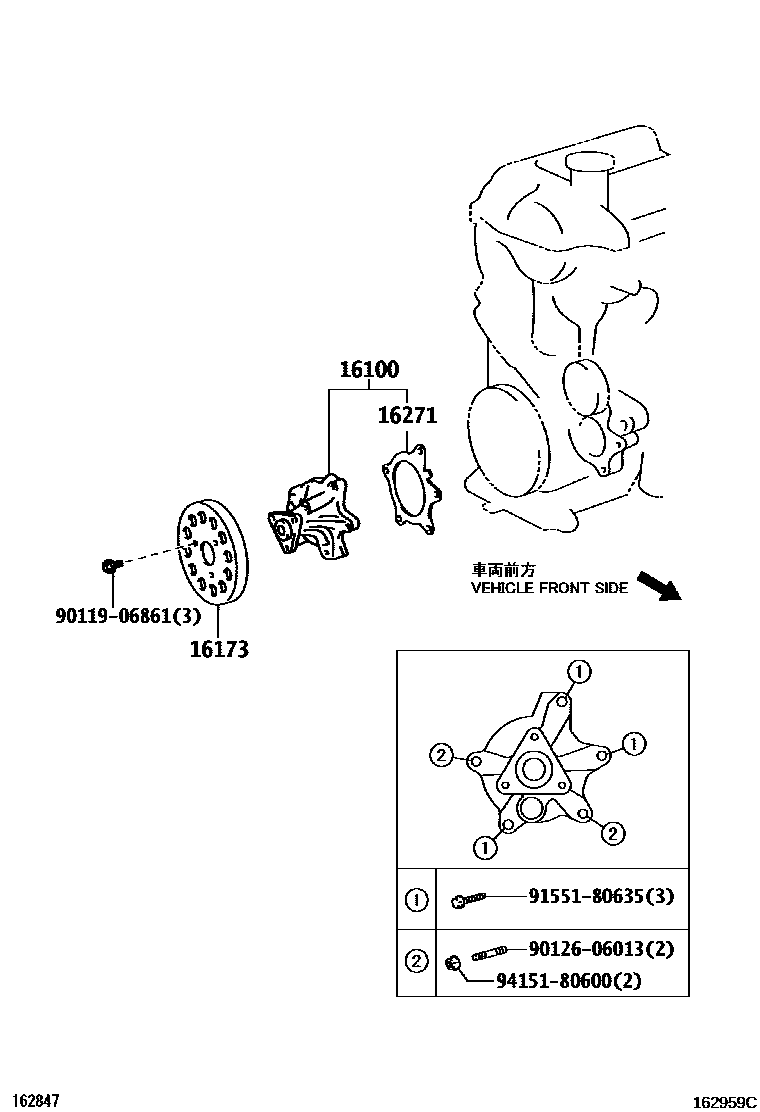

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-29156i1NZFE..NZE15#200908-200910

main16100-29157i1NZFE..NZE15#201111

main16100-29206i1NZFE..NZE15#200610-200812

main16100-39465i2ZRFE..ZRE15#200812-200906

main16100-39466i2ZRFE..ZRE15#200906-200910

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NZE15#200610-200812

16271GASKET, WATER PUMP

main16271-21020i1NZFE..NZE15#200910-201111

main16271-21021i1NZFE..NZE15#201111

main16271-37010i2ZRFE..ZRE15#200812-200910

9011906861

main90119-06861

9012606013

main90126-06013

9155180635

main91551-80635

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
